| 额定电压 | 250 Vac |
| 频率 | 50/60赫兹 |
| 电介质 | 聚丙烯 |
| 绝缘电阻 | >10.000MΩ?μF |
| 电容容差 | ±10％ |
| 温度范围 | -25℃/ 85℃ |
替代结构
| 没有QUICK-FIX的连接器 | 参考：P94 ………… PC |
| 带QUICK-FIX的连接器 | 参考：RP94 ………。PC |
| 刚性连接导线250 mm | 参考：P94 ………… PC25 |
| 使用QUICK-FIX，刚性连接导程为250 mm | 参考：RP94 ………。PC25 |
根据要求提供其他功率，电压和频率。
| Rated voltages | 250 Vac |
| Frequency | 50/60 Hz |
| Dielectric | Polypropylene |
| Insulation resistance | >10.000M??μF |
| Capacitance tolerance | ± 10% |
| Temperature range | -25/85?C |
Capacitors with EN/EC approvals.

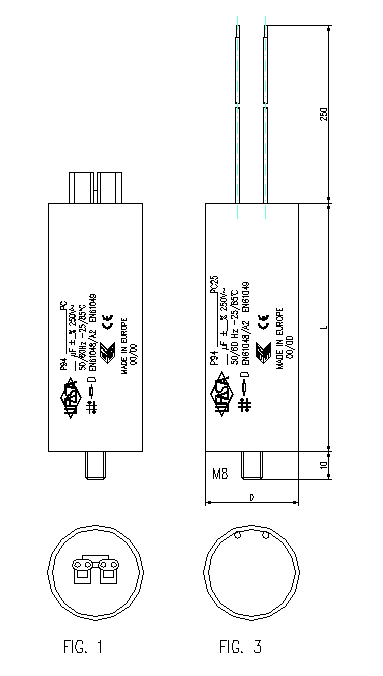

Alternative Constructions
| Connector without QUICK-FIX | Ref.: P94…………PC |
| Connector with QUICK-FIX | Ref.: RP94……….PC |
| Rigid connection leads 250 mm | Ref.: P94…………PC25 |
| Rigid connection leads 250 mm with QUICK-FIX | Ref.: RP94……….PC25 |
Other powers, voltages and frequencies on request.
| Code | Cn(μf) | Un (V) | Composition | Box | |
| P9425020PC25C | 2 | 250 | 25x55mm-M8 | 125 | |
| P9425040PC25C | 4 | 250 | 25x55mm-M8 | 125 | |
| P9425045PC25C | 4,5 | 250 | 25x55mm-M8 | 125 | |
| P9425070PC25C | 7 | 250 | 25x70mm-M8 | 125 | |
| P9425080PC25C | 8 | 250 | 30x70mm-M8 | 100 | |
| P9425090PC25C | 9 | 250 | 30x70mm-M8 | 100 | |
| P9425100PC25C | 10 | 250 | 30x70mm-M8 | 100 | |
| P9425120PC25C | 12 | 250 | 36x70mm-M8 | 50 | |
| P9425140PC25C | 14 | 250 | 36x70mm-M8 | 50 | |
| P9425160PC25C | 16 | 250 | 36x70mm-M8 | 50 | |
| P9425180PC25C | 18 | 250 | 35x92mm-M8 | 50 | |
| P9425200PC25C | 20 | 250 | 40x70mm-M8 | 50 | |
| P9425250PC25C | 25 | 250 | 35x92mm-M8 | 50 | |
| P9425300PC25C | 30 | 250 | 40x92mm-M8 | 50 | |
| P9425320PC25C | 32 | 250 | 40x92mm-M8 | 50 | |
| P9425350PC25C | 35 | 250 | 40x92mm-M8 | 25 | |
| P9425400PC25C | 40 | 250 | 45x92mm-M8 | 25 | |
| P9425450PDIC | 45 | 250 | 45x92mm-M8 | 25 | (1) |
| P9425500PC25C | 50 | 250 | 45x117mm-M8 | 25 | |
| P9425600PC20 | 60 | 250 | 45x117mm-M8 | 25 | (2） |
( 1 ) cable of 35 cm with double insulation ( 2 ) with 20 cm cables
