棘轮电缆压接器/剥线钳/切割器，用于Pass-Thru
VDV226-110
- 模块化压接连接器安装工具，用于带有Pass-Thru RJ45连接器插头的语音和数据应用
- 剥线钳，压接钳和切割器多用工具，用于成对导体数据电缆
- 修整件与连接器端面齐平，从而消除了导体之间的意外接触

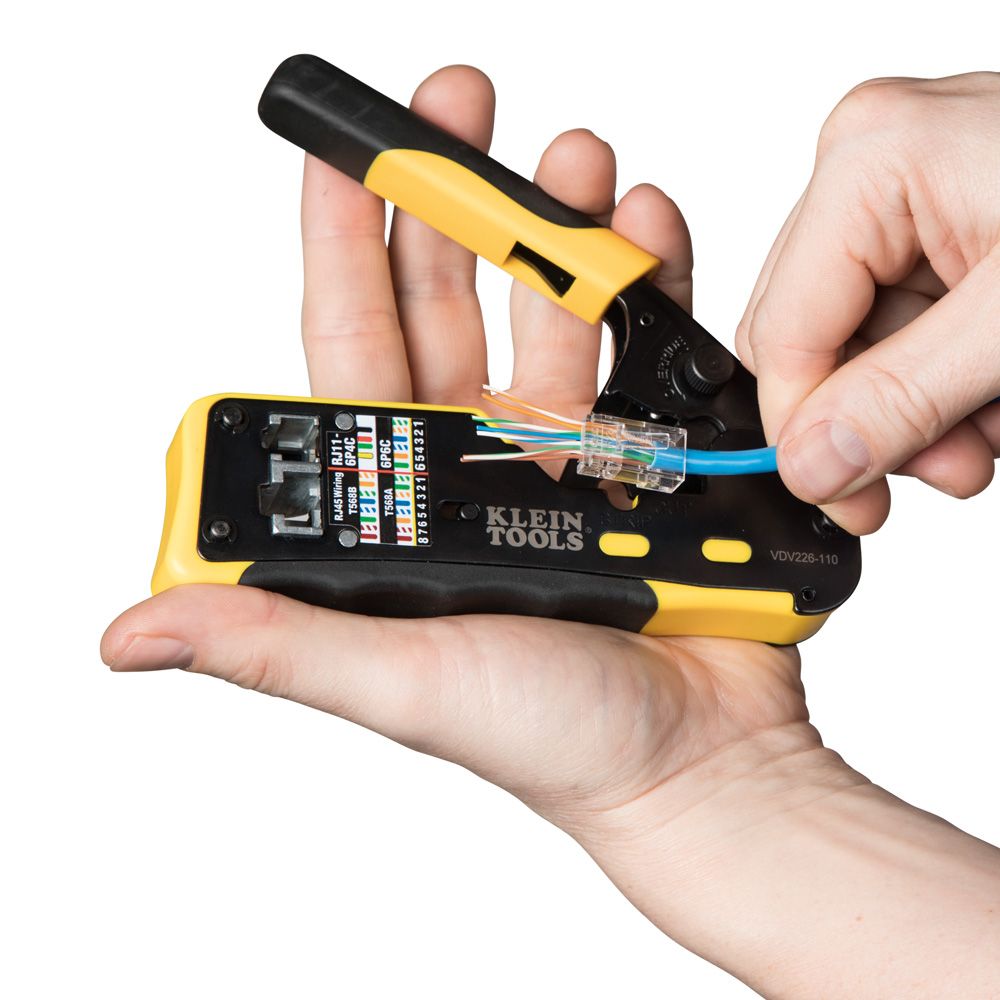

- 压接和装饰Klein Tools RJ45 Pass-Thru连接器
- 压接4、6和8位模块化连接器（RJ11 / RJ12标准和RJ45 Klein Tools Pass-Thru）
- 全周期棘轮机构可确保连接器完全端接
- 工具上的接线指南有助于很大程度地减少接线错误
- 电缆参数：28-22 AWG扁平或圆形;?固定或滞留的电话和数据
- 橡胶握把，增加舒适度
- 棘轮锁定机构
- 与Klein Tools Pass-Thru连接器一起使用
- 不适用于标准（非Pass-Thru）连接器
- 提供备用刀片套件（VDV999-076）

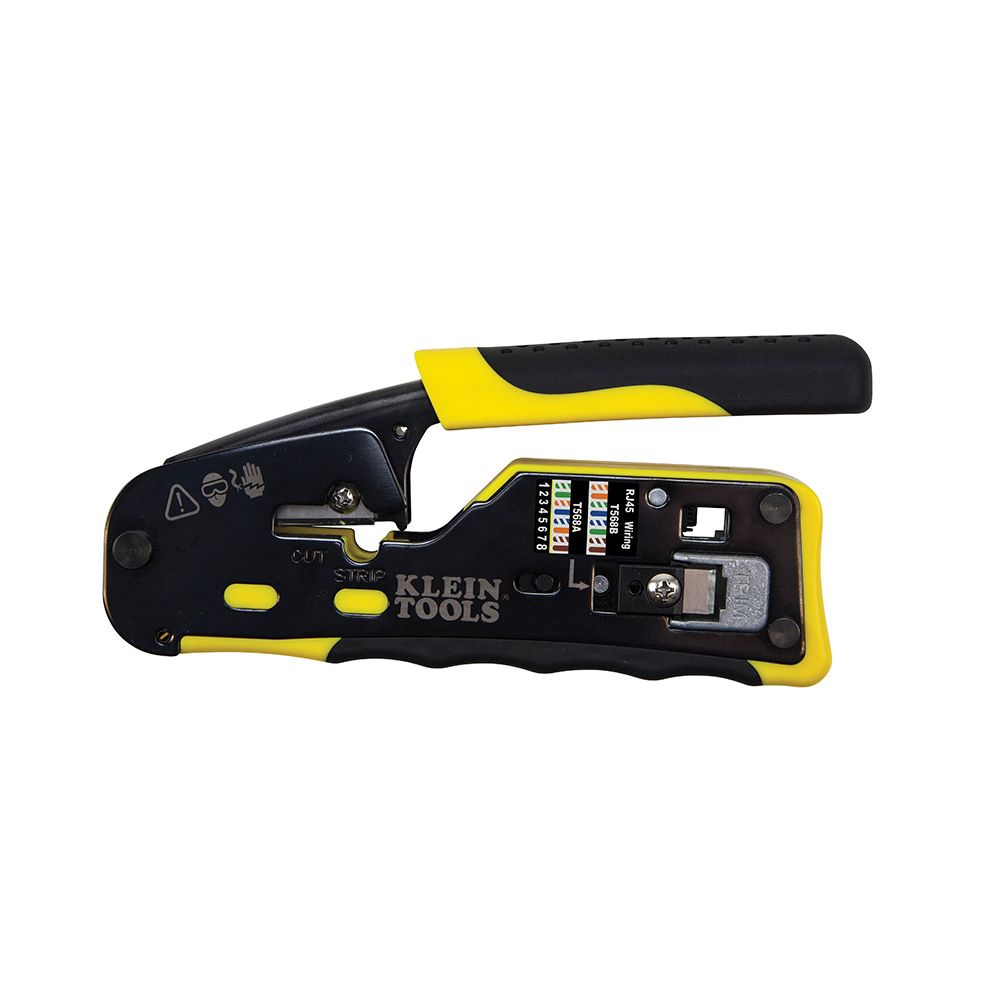

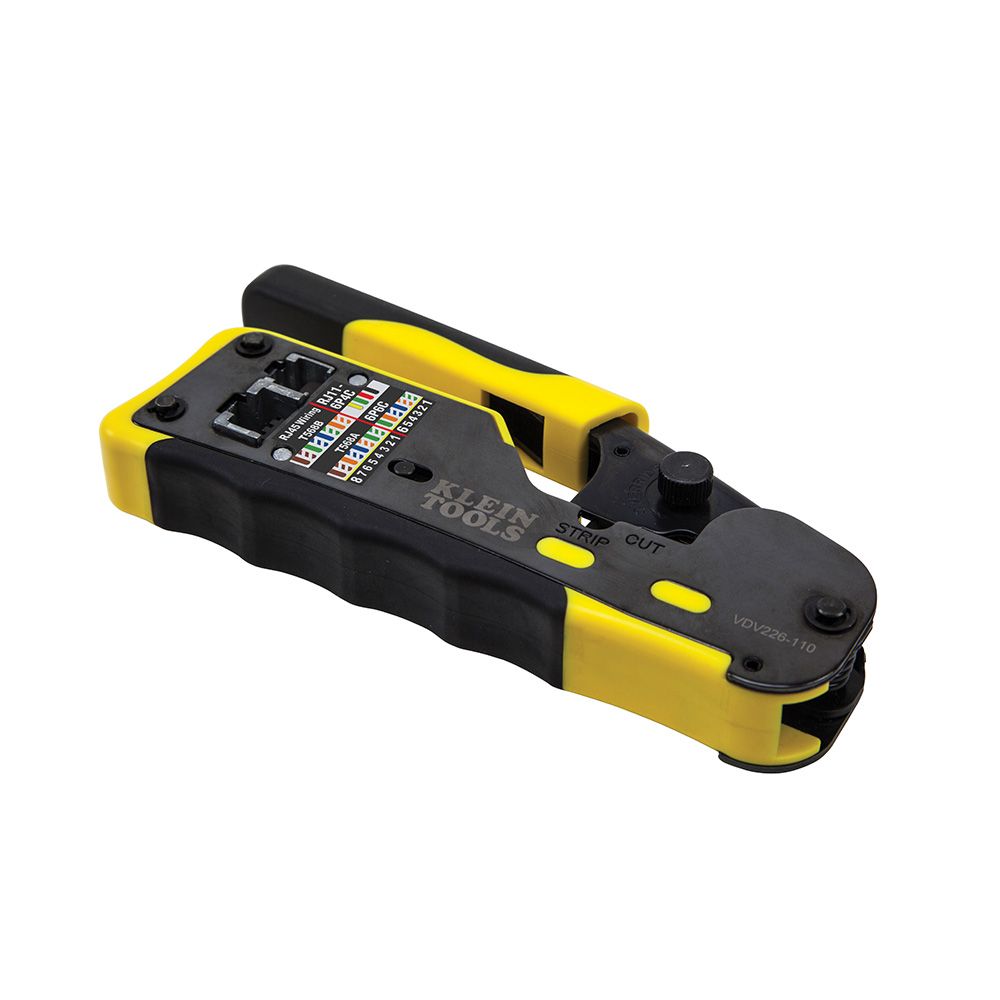

Ratcheting Cable Crimper / Stripper / Cutter, for Pass-Thru
VDV226-110
- Modular crimp-connector installation tool for voice and data applications with Pass-Thru RJ45 connector plug

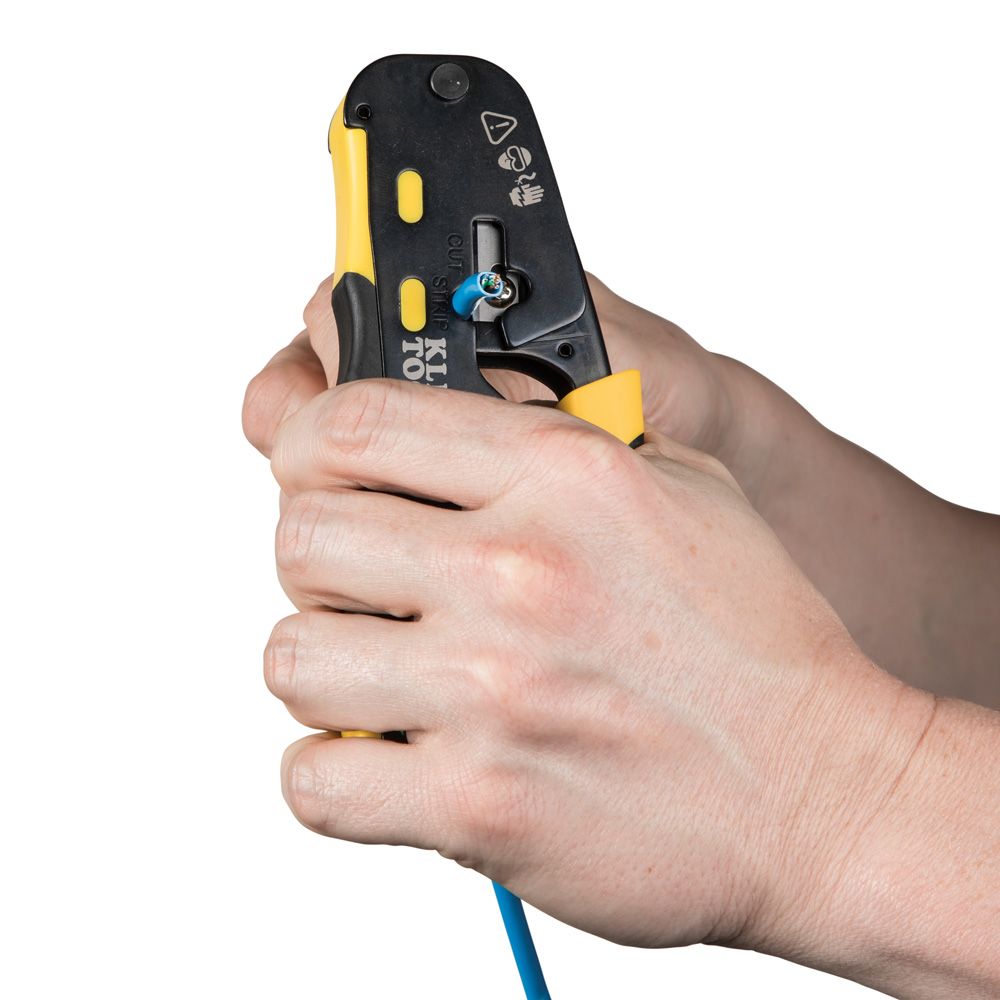

- Wire stripper, crimper, and cutter all-in-one tool for paired-conductor data cables

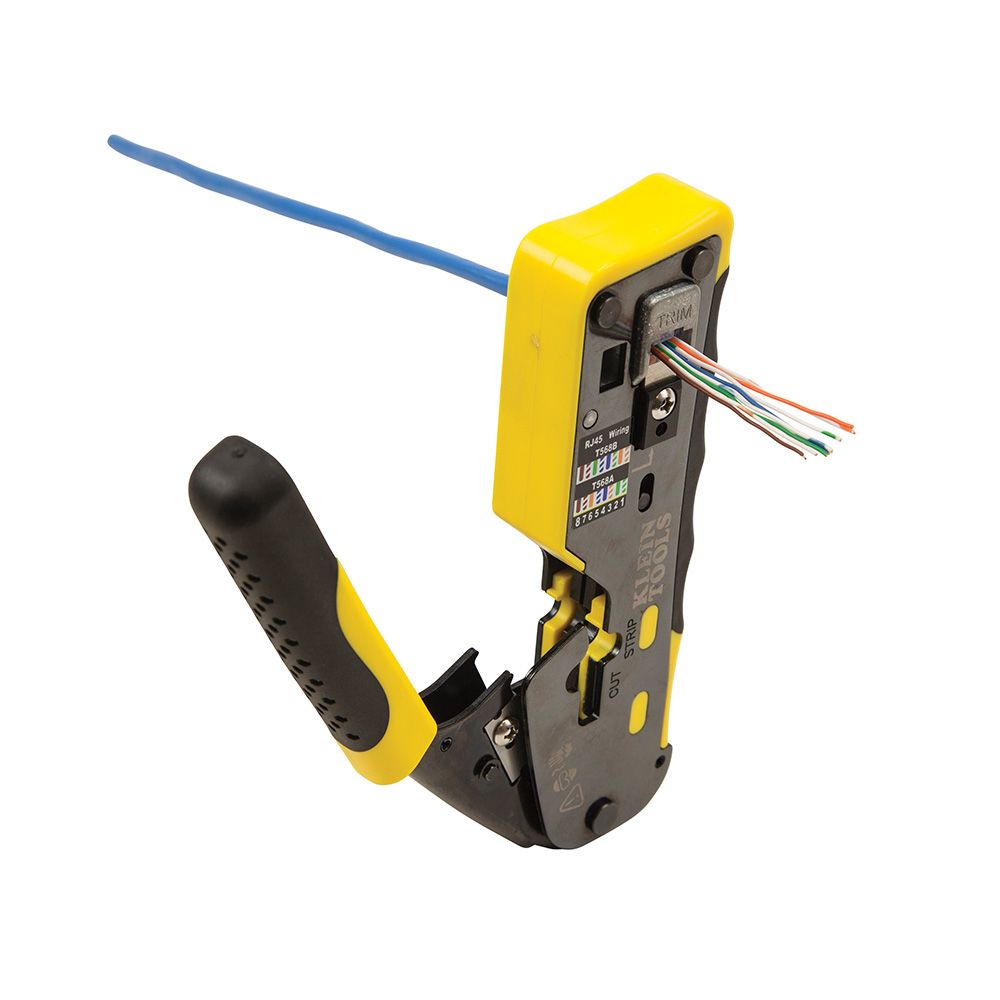

- Trims flush to end face of connector eliminating unintended contact between conductors
- Crimps and trims Klein Tools RJ45 Pass-Thru Connectors
- Crimps 4, 6 and 8 position modular connectors (RJ11/RJ12 standard and RJ45 Klein Tools Pass-Thru)
- Full-cycle ratchet mechanism ensures complete connector termination

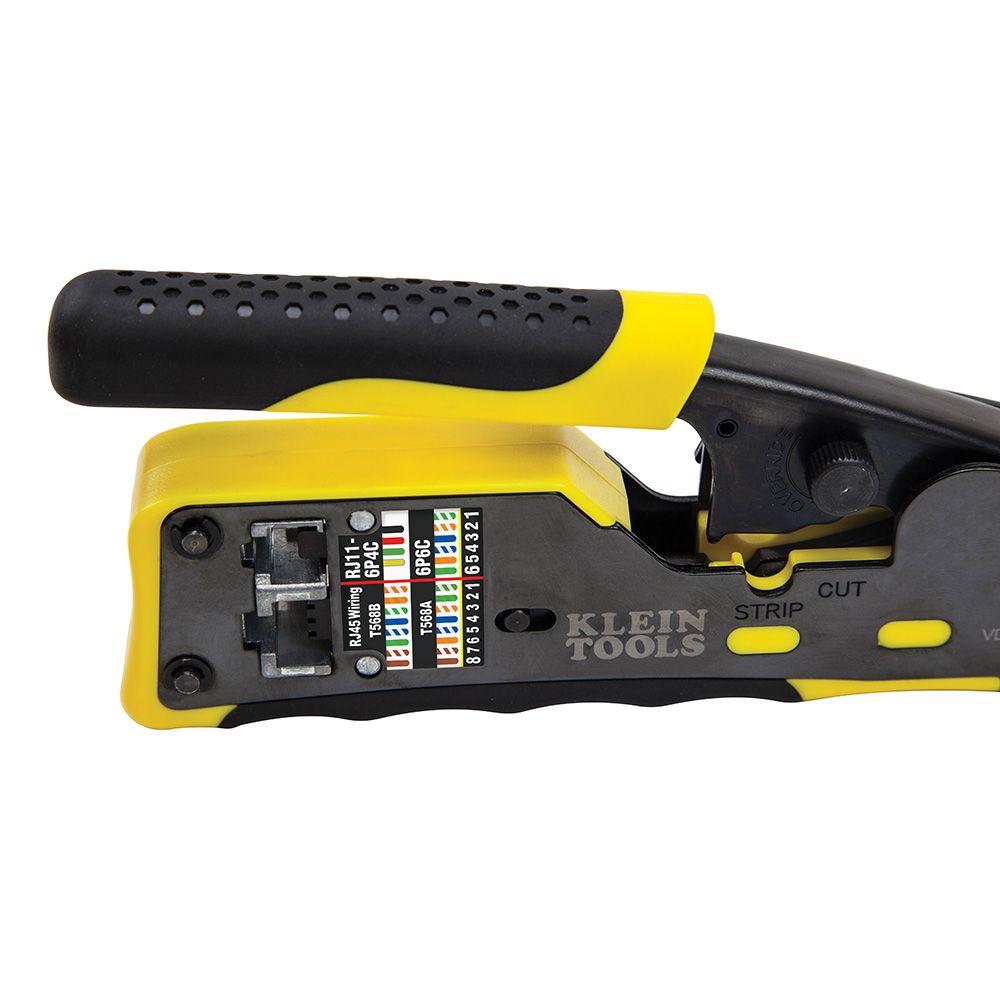

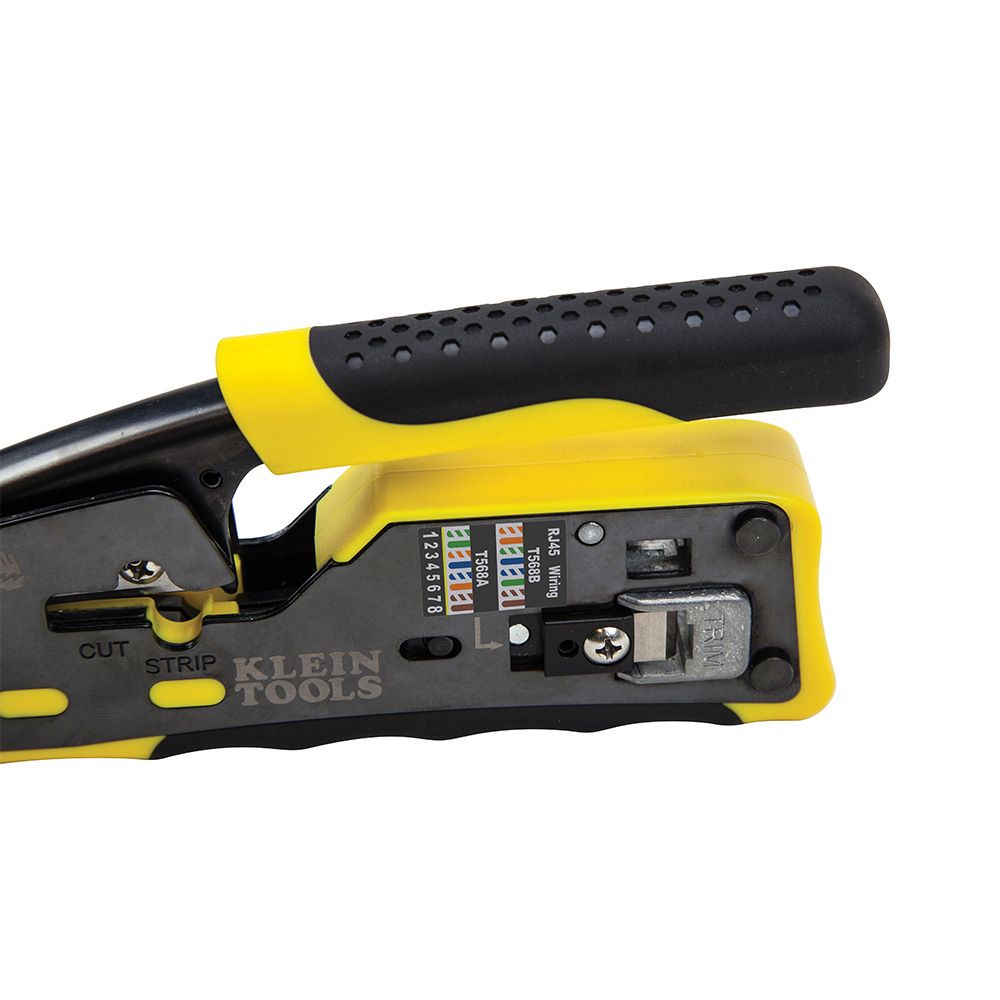

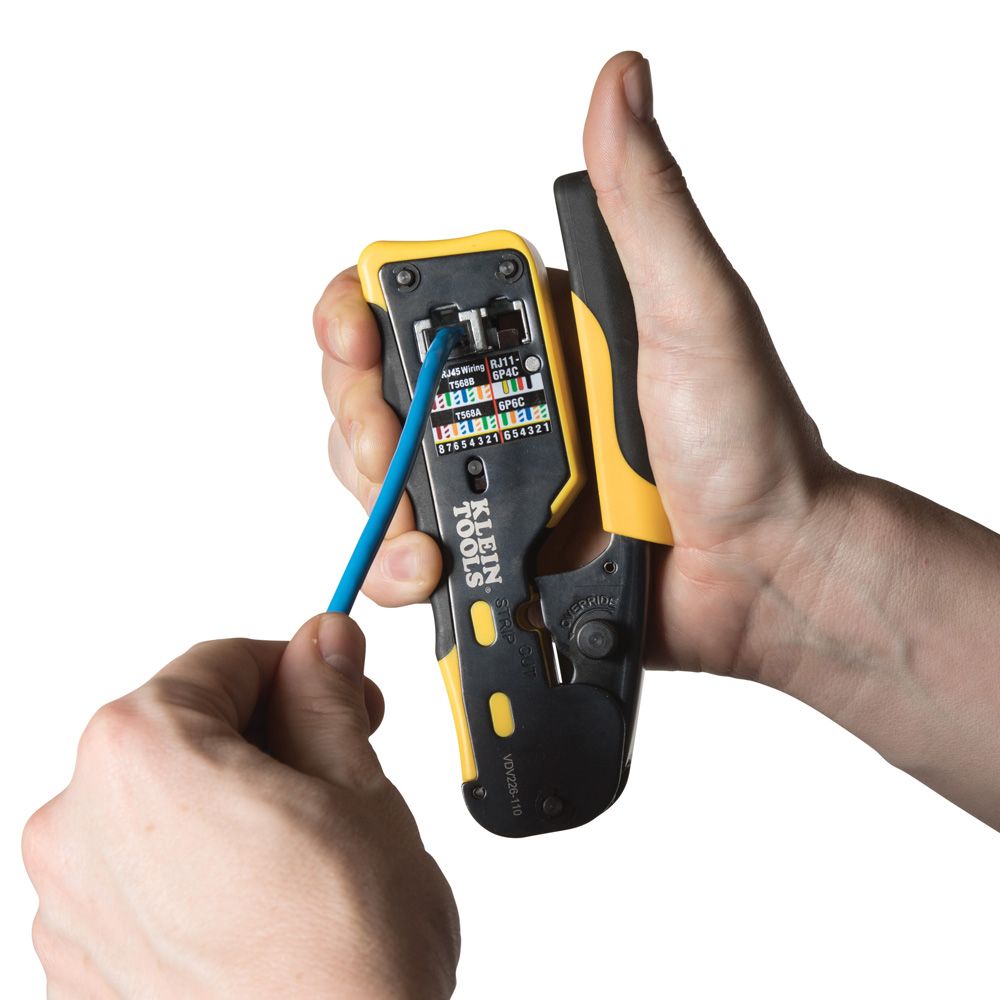

- On-tool wiring guide helps minimize wiring errors
- Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data
- Rubber grip for added comfort
- Ratcheting locking mechanism
- Use with Klein Tools Pass-Thru Connectors
- Not for use with standard (non Pass-Thru) connectors
- Replacement blade set available (VDV999-076)
Klein Tools同轴电缆压接器/剥线钳/电线切割器是一款高级耐用工具，适用于使用RJ11 / RJ12标准和RJ45 Pass-Thru连接器的CAT3，CAT5e和CAT6 / 6A电缆。Pass-Thru技术大大减少了准备工作时间；工具上的接线图有助于消除返工和材料浪费。紧凑，防滑的舒适握柄可减轻手部压力并易于存放。与Klein Pass-Thru连接器一起使用（每包10、50或200）。
技术指标
类型：
压接器
应用：
电缆连接
材料：
黑色氧化钢
手柄颜色：
黄色/黑色
切条：
成对导体数据线
电缆类型：
CAT3，CAT5e，CAT6 / 6A
连接器类型：
RJ45凯能工具Pass-Thru和RJ11，RJ12标准
位置/对/导体：
4位，1对/ 2导体，4位，2对/ 4导体6位，2对/ 4导体，6位，3对/ 6导体，8位，4对/ 8导体
总长度：
6.094英寸（15.5厘米）
重量：
408克（14.4盎司）
UPC：
092644690945
警告事项
- 始终佩戴认可的护目镜。
- 不绝缘。不能防止电击。
- 切勿在带电电路上或其附近使用。
- 使用此工具之前，请仔细阅读并理解说明。
- 请勿使用该工具将外套从电缆上拉下。否则可能会损坏导体和工具。

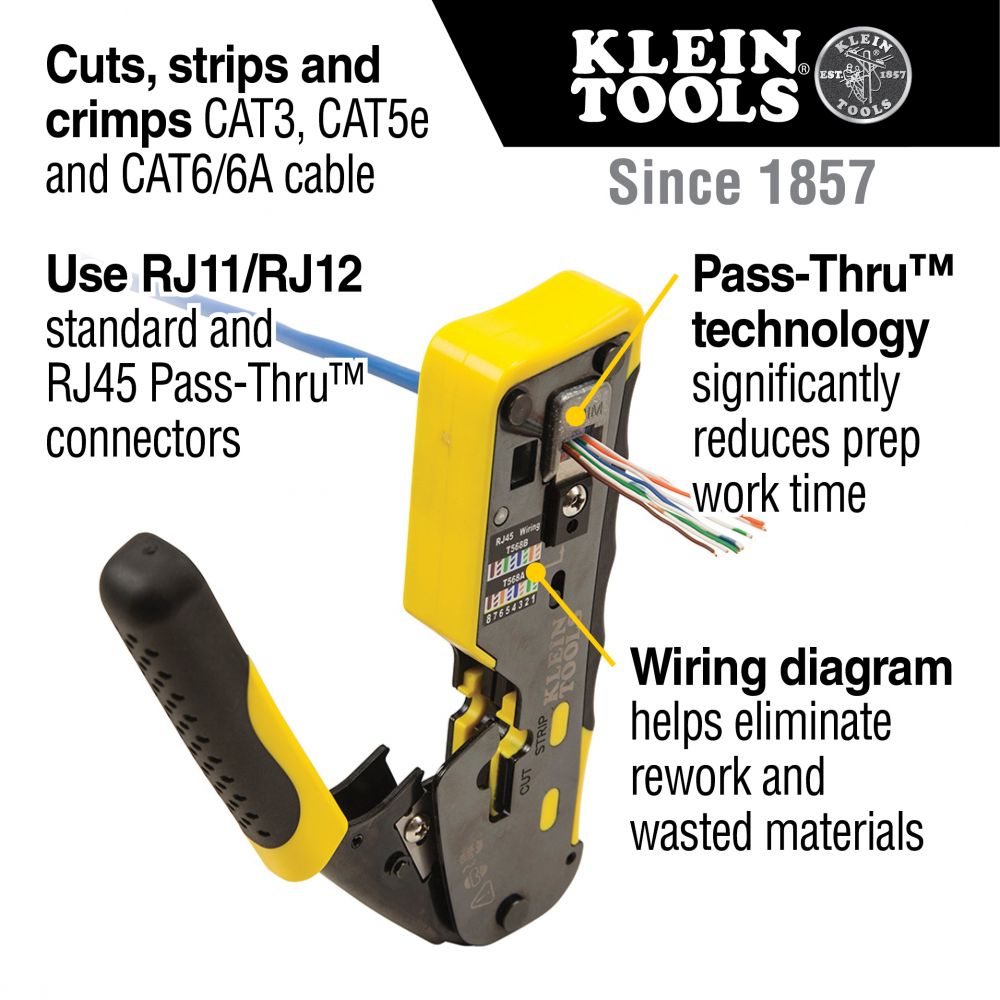

Klein Tools Coax Cable Crimper / Wire Stripper / Wire Cutter is a premium, long lasting tool for CAT3, CAT5e and CAT6/6A cable using RJ11/RJ12 standard and RJ45 Pass-Thru connectors. Pass-Thru? technology significantly reduces prep work time; wiring diagram on the tool helps eliminate rework and wasted materials. Compact, non-slip comfort grip reduces hand strain and stores easily. For use with Klein Pass-Thru? Connectors (in packs of 10, 50 or 200).
Specifications
Type:
Crimper
Application:
Cable Connection
Material:
Steel with Black Oxide
Handle Color:
Yellow/Black
Cuts & Strips:
Paired Conductor Data Cables
Cable Type:
CAT3, CAT5e, CAT6/6A
Connector Type:
RJ45 Klein Tools Pass-Thru?, and RJ11, RJ12 Standard
Position/Pair/Conductors:
4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor
Overall Length:
6.094” (15.5 cm)
Weight:
14.4 oz (408 g)
UPC:
092644690945
WARNINGS
- Always wear approved eye protection.
- NOT insulated. Will NOT protect against electrical shock.
- Never use on or near live electrical circuits.
- Read carefully and understand instructions before using this tool.
- Do NOT use the tool to pull the outer jacket off of the cable. Doing so may damage the conductors and the tool.
