棘轮数据电缆压接器/剥线器/切纸器
VDV226-011-SEN
- 棘轮压接器可为语音和数据应用提供快速，可靠的模块化压接连接器安装
- 切割，剥皮和压接双芯电缆（圆形STP / UTP和扁平缎面电话电缆）全部集中在一个工具中
- 压接4、6和8位模块化连接器（RJ22，RJ11 / RJ12和RJ45）
- 具有黑色氧化物涂层的钢制主体，具有性能和耐用性
- 压接模具由高碳钢精磨而成
- 为Western Electric（WE）/ Stewart Stamping（SS）型模块化连接器而设计
- 棘轮安全释放装置和切割和剥皮刀上的刀片保护装置可降低受伤风险
- 全周期棘轮机构可防止在完全压缩之前释放连接器
- 黄色和黑色握把提高了舒适性，可见度并允许快速识别
- 三个压接模具（8位，6位和4位）
- 电缆参数：28-22 AWG（.08-.34mm?）扁平或圆形；固定或滞留的电话和数据
- 不适用于AMP连接器
- 提供备用刀片组（货号VDV999-064）

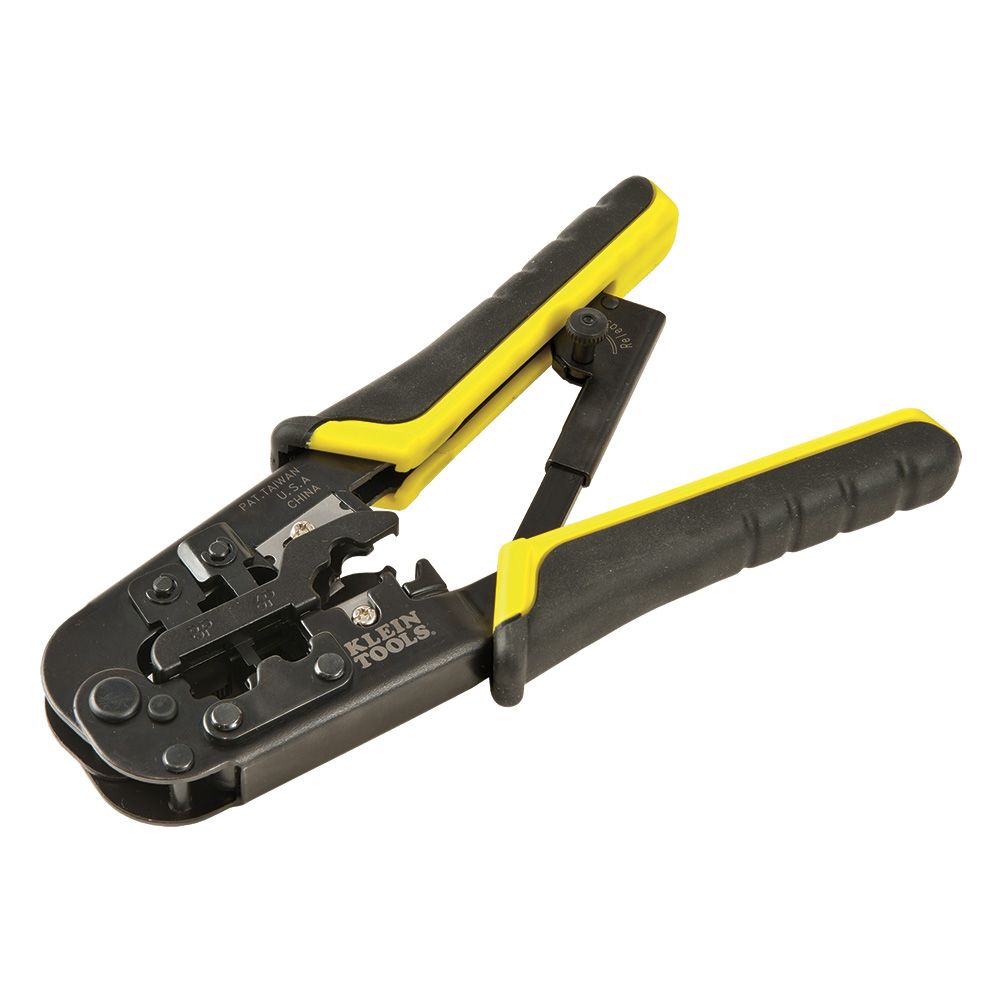

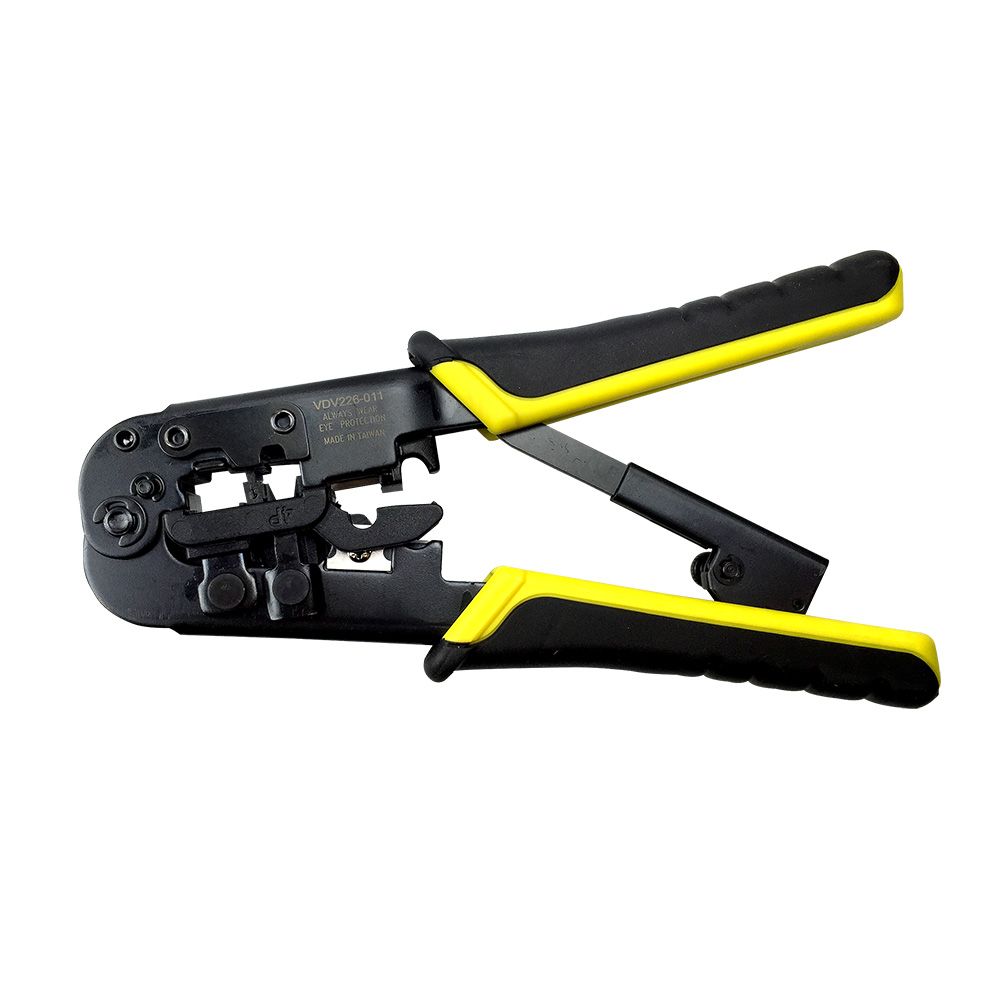

Ratcheting Data Cable Crimper / Stripper / Cutter
VDV226-011-SEN

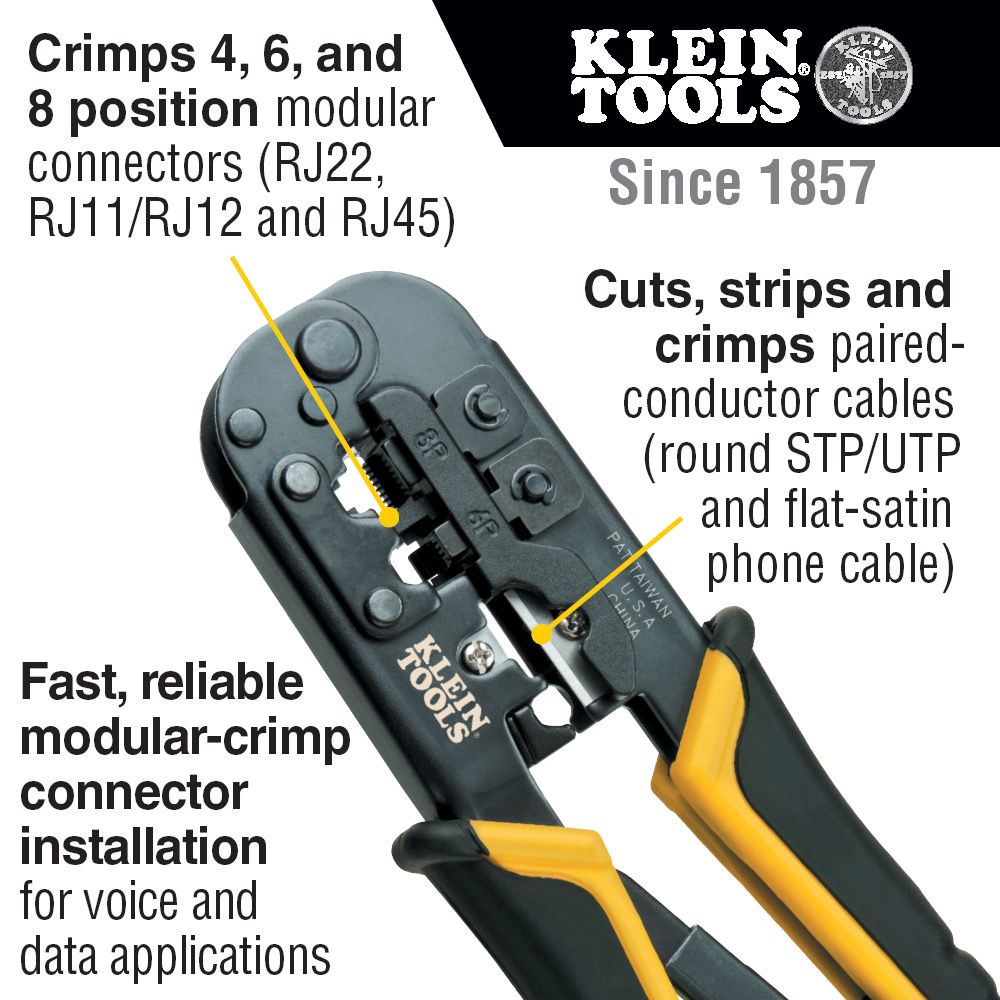

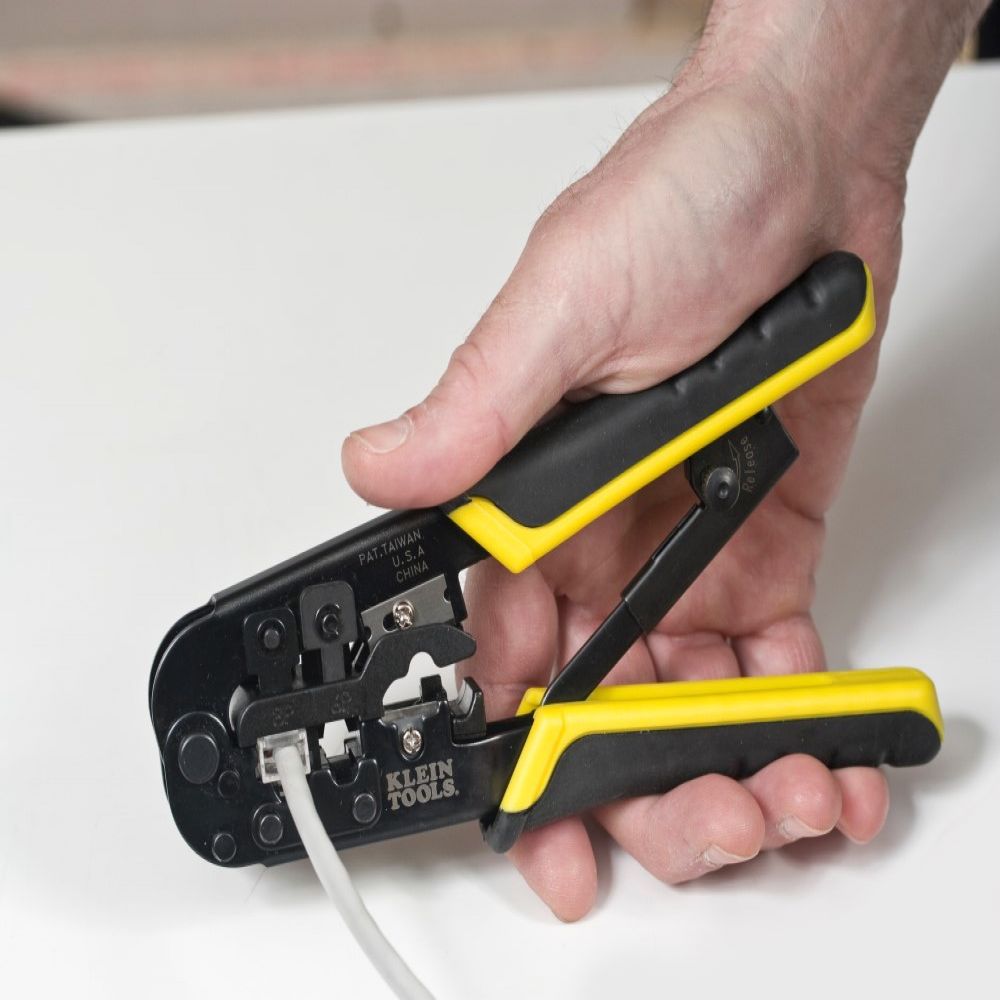

- Ratcheting crimper provides fast, reliable modular-crimp connector installation for voice and data applications
- Cuts, strips, and crimps pair-conductor cables (round STP/UTP and flat-satin phone cable) all in one tool
- Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45)
- Steel body with black-oxide finish for excellent performance and durability
- Crimping dies are precision ground from high-carbon steel
- Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors
- Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury
- Full-cycle ratchet mechanism prevents the release of the connector prior to full compression
- Yellow and black grips enhance comfort, visibility, and allow quick identification
- Three crimping dies (8-position, 6-position and 4-position)
- Cable parameters: 28-22 AWG (.08 – .34 mm?) flat or round; solid or stranded telephone and data
- Not for use with AMP connectors
- Replacement blade set available (Cat. No. VDV999-064)
多合一棘轮模块化压接器/剥线器可切割，剥皮和压接成对的导体电缆（圆形STP / UTP和扁平缎面电话电缆）。它由钢制成，并经黑色氧化处理，具有高性能，可为语音和数据应用提供快速，可靠的模块化压接连接器安装。其他功能包括：压接4位，6位和8位模块化连接器（RJ22，RJ11 / RJ12和RJ45）；为Western Electric（WE）/ Stewart Stamping（SS）型模块化连接器而设计。尺寸：4英寸x 7.5英寸x 0.9英寸?Klein Tools提供了一系列全面的VDV产品，旨在为住宅或商用系统准备，连接和测试网络，电话，CATV，家庭影院，卫星和安全电缆。
技术指标
警告事项
- 始终佩戴认可的护目镜。
- 不绝缘。不能防止电击。
- 切勿在带电电路上或其附近使用。
- 使用此工具之前，请仔细阅读并理解说明。
The all-in-one Ratcheting Modular Crimper/Stripper cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cables). Durably made from steel and finished in black oxide for high performance, it provides fast, reliable modular-crimp connector installation for voice- and data applications. Other features include: Crimps 4-, 6- and 8-position modular connectors (RJ22, RJ11/RJ12 and RJ45); Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors. Dimensions: 4-Inch x 7.5-Inch x 0.9-Inch. Klein Tools offers a comprehensive line of VDV products created to prep, connect, and test network, phone, CATV, home theater, satellite, and security cables for residential or commercial systems.
Specifications
WARNINGS
- Always wear approved eye protection.
- NOT insulated. Will NOT protect against electrical shock.
- Never use on or near live electrical circuits.
- Read carefully and understand instructions before using this tool.
