产品描述 Description

90齿齿轮=?4°摆弧

单个半月形棘爪始终保持6到9个齿（取决于驱动器的大小）与齿轮接触，以确保其在压力下不会打滑或跳过。

90-Tooth Gear =?4° Swing Arc

The single half-moon pawl maintains 6 to 9 teeth (depending on the drive size) in contact with the gear at all times, ensuring that it won’t slip or skip under stress.

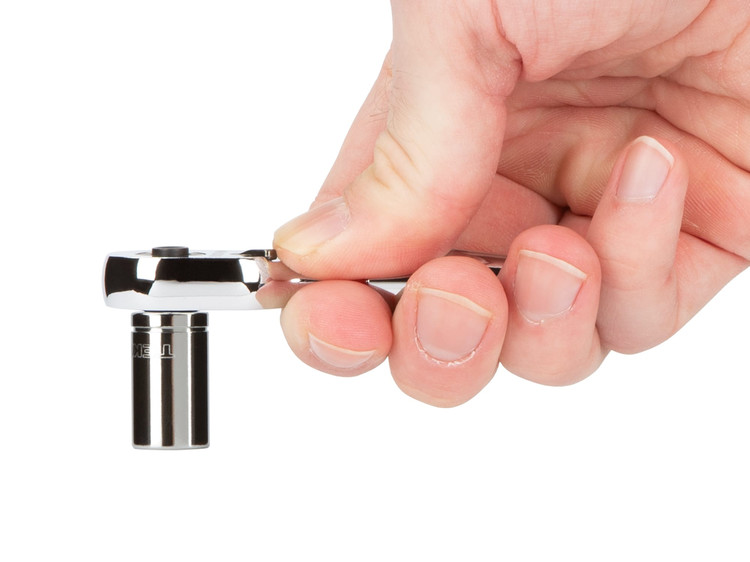

紧凑头

与仅注重控制头部厚度的“低轮廓”设计不同，我们在每个尺寸（高度，宽度和长度）上都减小了尺寸。

Ultra-Compact?Head

Unlike conventional “low profile” designs that focus on controlling only the thickness of the head, we reduced the size in every dimension: height, width, and length.

锁定，快速释放驱动器

• 套筒通过定位球和锁定销锁定在棘轮柄上，以防止其掉落或脱落。
• 按下释放按钮，可使承窝轻松脱离柄脚，甚至可以单手更换承窝。

?也可用于非快速释放?

Lock-On,?Quick-Release Drive

• Sockets are locked onto the ratchet tang by a detent ball and locking pin so that they can’t fall or be pulled off.
• Pressing the release button allows the sockets to easily drop off the tang, making even one-handed socket changes possible.

Also available in Non-Quick-Release?

光滑舒适的手柄

• 指环具有明显的内部边缘，可用于牵引和控制，可用于任何手指放置。
• 手柄末端的鞍状结构可以防止手从末端滑落，但也可以倒圆角，以使手感觉舒适。

Sleek, Comfortable?Handle

• The finger ring has pronounced interior edges for traction and control, and is useful for any finger placement.
• The pommel at the end of the handle keeps your hand from slipping off the end, but is also rounded so that it’s comfortable for your hands.

工作手柄长度

为了使棘轮的尺寸清晰一致，我们使用的是实际工作长度（驱动柄的中心到手柄末端），而不是工具的总长度。结果，Tekton工具可能会比市场上其他类似描述的工具更长。

Working?Handle Length

To be clear and consistent about the size of our ratchets, we use the actual?working length?(center of drive tang to end of handle), not the?overall length?of the tool. As a result, Tekton tools may be a little longer than other similarly described tools in the market.

证明扭矩

我们的棘轮和破碎杆满足重要基准（例如Proof Torque）的行业标准，Proof Torque是通过单周期测试验证的强度度量，该测试通过施加扭矩直到达到指定值而无故障或永久变形。

Proof?Torque

Our ratchets and breaker bars meet (and most far exceed) industry standards for important baselines like?Proof Torque, a measure of strength verified by a single-cycle test that applies torque until the specified value is reached without failure or any permanent deformation.

零件+组装

Parts?+?Assembly

产品参数 Specs

原产地：台湾

1/4 Inch Drive x 3 Inch Quick-Release Ratchet
