SensoStar U超声波在线热量表采用先进的技术，为家庭和商业区或共享加热应用提供“价值”计费解决方案。
- 超声波热量表，用于在线安装
- 耐高温，适合区域供热
- 测量循环温度，动态：2/60秒
- 测量循环流量：2s
- 可拆卸计算器单元：85cm脉冲电缆长度
- 耐高温，适合区域供热
- 检测回流和空气
可选附件：无线电网关系统
技术信息
测量循环温度，动态：??2/60秒
测量循环流量：??2s
可拆卸计算器单元：??85cm脉冲电缆长度
通信接口：?无线M-Bus，无线M-Bus + 3个脉冲输入，M-Bus，M-Bus + 3个脉冲输入，2个脉冲输出
尺寸：??75毫米x 110毫米x 34.5毫米
The?SensoStar U Ultrasonic inline Heat Meter utilises state of the art technology to deliver a “Best Value” billing solution for domestic and commercial district or shared heating applications.
- Ultrasonic heat meter for inline installation
- High temperature resistant for district heating
- Measuring cycle temperature, dynamic: 2/60s
- Measuring cycle flow: 2s
- Detachable calculator unit: 85cm pulse cable length
- High temperature resistant for district heating
- Detection of back flow and air
Optional Accessory: Radio Gateway System
Technical Information
Measuring cycle temperature, dynamic:?2/60s
Measuring cycle flow:?2s
Detachable calculator unit:?85cm pulse cable length
Communication interfaces:?wireless M-Bus,?wireless M-Bus + 3 pulse inputs,?M-Bus,?M-Bus + 3 pulse inputs,?2 pulse outputs
Dimensions:?75mm x 110mm x 34.5mm
SensoStar E单喷射流量传感器，用于在线安装
SensoStar E单喷射流量传感器热量表采用先进的技术，为家庭和商业区或共享加热应用提供“价值”计费解决方案。
- 用于在线安装的单射流传感器
- 测量循环温度，动态：2/60秒
- 可在现场设置出口流量和入口流量
- 可拆卸计算器单元：50cm脉冲电缆长度（可选）
- 检测回流
可选附件：无线电网关系统
SensoStar E Single-jet flow sensor for inline installation
The SensoStar E Single-jet flow sensor Heat Meter utilises state of the art technology to deliver a “Best Value” billing solution for domestic and commercial district or shared heating applications.
- Single-jet flow sensor for inline installation
- Measuring cycle temperature, dynamic: 2/60s
- Outlet flow and inlet flow can be set on site
- Detachable calculator unit: 50cm pulse cable length (optional)
- Detection of back flow
Optional Accessory: Radio Gateway System
Technical Information
Measuring cycle temperature, dynamic:?2/60s
Outlet flow and inlet flow can be set on site
Detachable calculator unit:?50cm pulse cable length (optional)
Communication interfaces:?wireless M-Bus,?wireless M-Bus + 3 pulse inputs,?M-Bus,?M-Bus + 3 pulse inputs,?2 pulse outputs
Dimensions:?75mm x 110mm x 34.5mm
SensoStar Q多喷嘴流量传感器，用于在线安装
SensoStar Q多喷射流量传感器热量表采用先进的技术，为家庭和商业区或共享加热应用提供“价值”计费解决方案。
- 用于在线安装的多喷射流量传感器
- 测量循环温度，动态：2/60秒
- 可在现场设置出口流量和入口流量
- 可拆卸计算器单元：50cm脉冲电缆长度（可选）
- 检测回流
可选附件：无线电网关系统
技术信息
测量循环温度，动态：??2/60秒
可在现场设置出口流量和入口流量
可拆卸计算器单元：??50cm脉冲电缆长度（可选）
通信接口：?无线M-Bus，无线M-Bus + 3个脉冲输入，M-Bus，M-Bus + 3个脉冲输入，2个脉冲输出
尺寸：??75毫米x 110毫米x 34.5毫米
SensoStar Q Multi-jet flow sensor for inline installation
The?SensoStar Q Multi-jet flow sensor Heat Meter utilises state of the art technology to deliver a “Best Value” billing solution for domestic and commercial district or shared heating applications.
- Multi-jet flow sensor for inline installation
- Measuring cycle temperature, dynamic: 2/60s
- Outlet flow and inlet flow can be set on site
- Detachable calculator unit: 50cm pulse cable length (optional)
- Detection of back flow
Optional Accessory: Radio Gateway System
Technical Information
Measuring cycle temperature, dynamic:?2/60s
Outlet flow and inlet flow can be set on site
Detachable calculator unit:?50cm pulse cable length (optional)
Communication interfaces:?wireless M-Bus,?wireless M-Bus + 3 pulse inputs,?M-Bus,?M-Bus + 3 pulse inputs,?2 pulse outputs
Dimensions:?75mm x 110mm x 34.5mm
无线电网关系统
无线网关系统是一个功能强大的1500米数据采集和自动抄表系统，利用无线M-Bus并与完整的Micronics产品系列兼容。
- 根据无线M-Bus和OMS开放系统
- 电池模式下的设备数量：1000
- 主电源和以太网供电（PoE）操作中的设备数量：1500
- 高密度无线M-Bus接收器（LTE干扰滤波器）
- 兼容所有Micronics无线电设备
- 数据收集/传输：每两周一次（电池模式）
- 电池寿命：5年

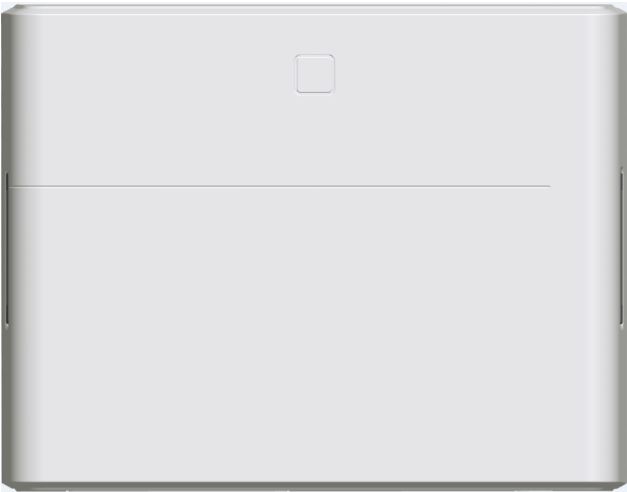

Radio Gateway System
The?Radio Gateway System is a powerful 1500 meter, data collection and automatic meter reading system, utilising wireless M-Bus and compatable with the full Micronics product range.
- Open system, according to wireless M-Bus and OMS
- Number of devices in battery mode: 1000
- Number of devices in mains and Power over Ethernet (PoE) operation: 1500
- High-density wireless M-Bus receiver (LTE disturbance filter)
- Compatible with all Micronics radio devices
- Data collect / transfer: fortnightly (battery mode)
- Battery lifetime: 5 years
