- 放电电压：DC27kV [Max]
- 放电容量：至大1μF
- 放电时间：5秒或更短（27 kV DC，1μF，50 V或更小）
- 放电电阻：600kΩ±10％
- 操作停止电压：40 V DC±20％
- 附件：触头（钩型），外壳袋（蓝色）
- 发光显示：可以检查8,000 Lx的亮度
- 声音发射指示：2 m处50 dB或更高
- 电池：LR44×2（碱性纽扣电池）
电池寿命：连续
运行约4小时

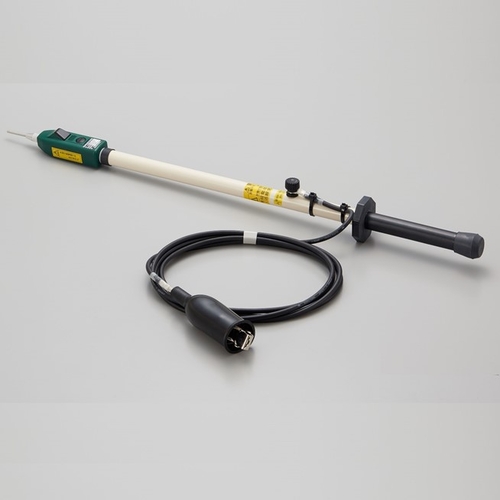

- Discharge voltage: DC27kV[Max]
- Discharge capacity: 1μF max
- Discharge time: 5 seconds or less (50 V or less at 27 kV DC, 1μF)
- Discharge resistance: 600 kΩ ± 10%
- Operation stop voltage: 40 V DC ± 20%

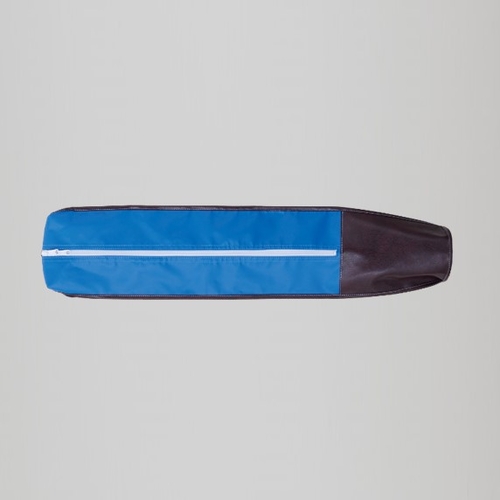

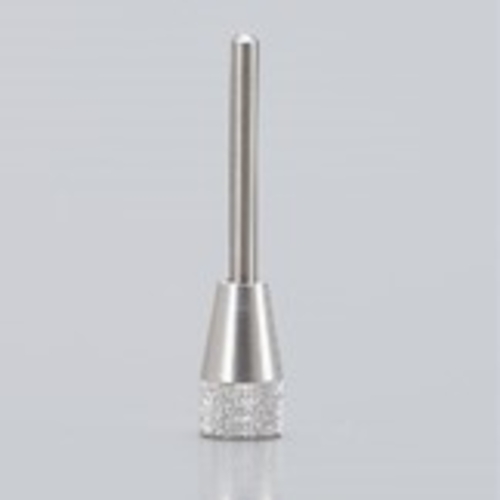

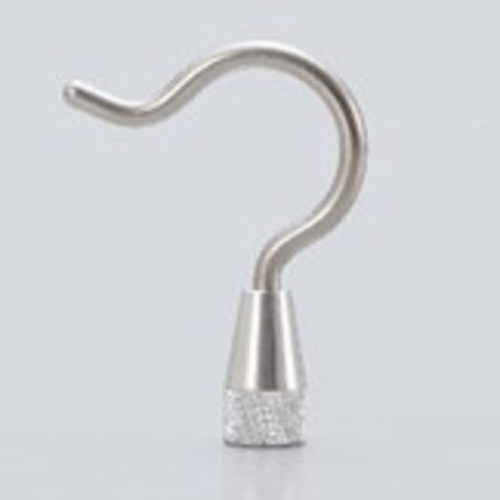

- Accessories: Contact tip (Hook type), Bag for housing (Blue)
- Light emitting display: Checking is possible in brightness of 8,000 Lx
- Sound emission indication: 50 dB or higher at 2 m away
- Batteries: LR44 × 2 (Alkaline button batteries)
Battery life: Approximately 4 hours in continuous
operation
- 放电电压：DC27kV [Max]
- 放电容量：至大1μF
- 放电时间：5秒或更短（27 kV DC，1μF，50 V或更小）
- 放电电阻：600kΩ±10％
- 操作停止电压：40 V DC±20％
- 附件：
触头（钩型），外壳袋（蓝色）
- Discharge voltage: DC27kV[Max]
- Discharge capacity: 1μF max
- Discharge time: 5 seconds or less (50 V or less at 27 kV DC, 1μF)
- Discharge resistance: 600 kΩ ± 10%
- Operation stop voltage: 40 V DC ± 20%
- Accessories:
Contact tip (Hook type), Bag for housing (Blue)
- 简单的放电棒，没有内置的内部电阻。
- 查询或订购时，请选择所需的规格。
- Simple Discharge stick with no built-in Internal Resistance.
- Please select the specification that you need when inquirying or ordering.
- 工作电压范围：交流6.6kV
- 工作启动电压（对地电压）：
1300V±20％ - 漏电流：
绝缘强度试验时为1mA以下 - 操作指示：[发光] 应能够确认8,000 lux的亮度。[声音] 距离2 m时为50 dB以上

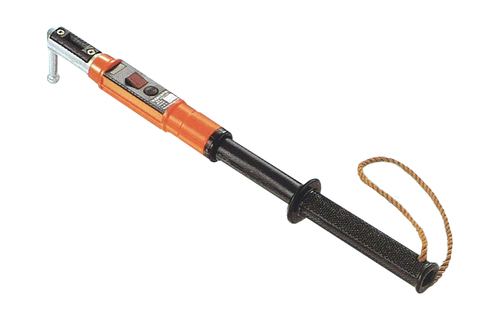

- Working voltage range: AC 6.6kV
- Operation starting voltage(Voltage to ground):
1300V±20％ - Leakage current:
1mA or less at dielectric strength test - Indication of operation:[Light emission] It shall be able to confirm luminance of 8,000 lux.[Sound] 50 dB or more at a distance of 2 m
- 适用电压：AC6.6kV
- 通用隔间
- 尖端金属配件：绝缘橡胶夹
- 绝缘棒的类型：带橡胶夹
- 接地线：
22?×1.7m×3线，8?×7m×1线 - 接地金属配件：夹子
- 重量：4.0公斤
- 附件：收纳袋

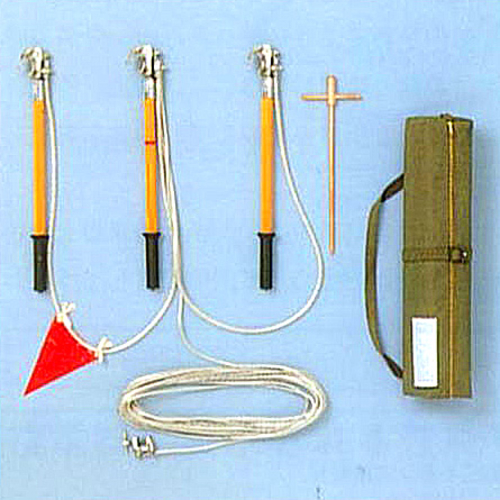

- Applicable voltage: AC6.6kV
- Universal type for cubicles
- Tip metal fitting: Insulation rubber clip
- Types of insulating stick: With rubber clip
- Grounding wire:
22?×1.7m×3wires, 8?×7m×1wire - Grounding metal fitting: Clip
- Weight: 4.0kg
- Accessory: Bag for housing
- 适用电压：AC6.6kV
- 通用隔间
- 烙铁头配件：MA115-AN
- 绝缘棒长度：
带有橡胶夹的Neo管（Φ25×35mm） - 接地线：
14?×0.7m×2线（带红色三角形标记）
8?×7m×1线 - 接地金属配件：夹子
- 重量：3.4公斤
- 附件：收纳袋
- Applicable voltage: AC6.6kV
- Universal type for cubicles
- Tip metal fitting: MA115-AN
- Length of insulating stick:
Neo pipe(Φ25×35mm) with rubber clip - Grounding wire:
14?×0.7m×2wires(with red traiangular flag)
8?×7m×1wire - Grounding metal fitting: Clip
- Weight: 3.4kg
- Accessory: Bag for housing
- 适用电压：AC6.6kV?22kV
- 用于圆形公交线路
- 烙铁头配件：MA122-A
- 绝缘棒长度：
Neo管道（Φ25×337mm），带橡胶夹 - 接地线：
14?×0.7m×2线（带红色三角形标记）
8?×15m×1线 - 接地金属配件：SA107-B
- 锤入式接地排：Φ10钢筋
- 重量：5.0公斤
- 附件：收纳袋
- Applicable voltage: AC6.6kV～22kV
- For round bus lines
- Tip metal fitting: MA122-A
- Length of insulating stick:
Neo pipe(Φ25×337mm) with rubber clip - Grounding wire:
14?×0.7m×2wires(with red traiangular flag)
8?×15m×1wire - Grounding metal fitting: SA107-B
- Hammer-in type grounding bar: Φ10 steel bar
- Weight: 5.0kg
- Accessory: Bag for housing
- 适用电压：6.6kV-22kV
- 通用隔间
- 烙铁头配件：MA115-AH
- 绝缘棒长度：
Neo管道（Φ25×335mm），带橡胶夹 - 接地线：
22?×1.5m×2线（带红色三角形标记）
8?×15m×1线 - 接地金属配件：SA107-B
- 锤入式接地排：Φ10钢筋
- 重量：5.6公斤
- 附件：收纳袋
- Applicable voltage: 6.6kV – 22kV
- Universal type for cubicles
- Tip metal fitting: MA115-AH
- Length of insulating stick:
Neo pipe(Φ25×335mm) with rubber clip - Grounding wire:
22?×1.5m×2wires(with red traiangular flag)
8?×15m×1wire - Grounding metal fitting: SA107-B
- Hammer-in type grounding bar: Φ10 steel bar
- Weight: 5.6kg
- Accessory: Bag for housing

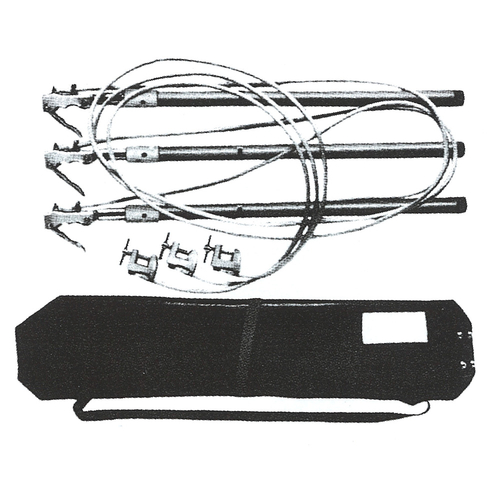

- 适用电压
Y2：154kV / Y3：77kV[目标范围因机型而异] - 输电线路的压缩拧紧式伸缩模型的操作杆。
- Applicable voltage
Y2：154kV / Y3： 77kV[Target range varies depending on model] - Operating rod of compressed tightening-type
telescopic model for power transmission line.
- 适用电压
YB2：154KV / YB3：77kV[目标范围因型号而异] - 输电线路的压缩拧紧式伸缩模型的操作杆。

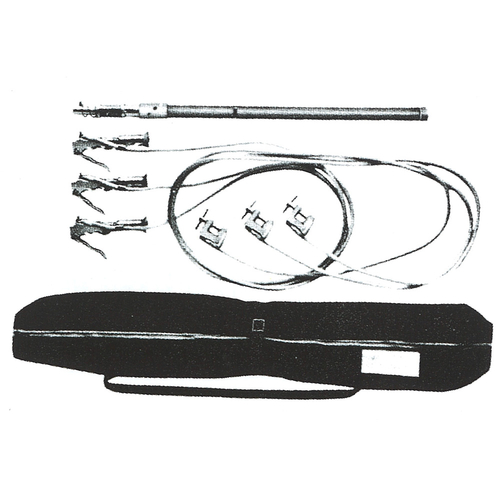

- Applicable voltage
YB2：154KV / YB3：77kV[Target range varies depending on model] - Operating rod of compressed tightening-type
telescopic model for power transmission line.

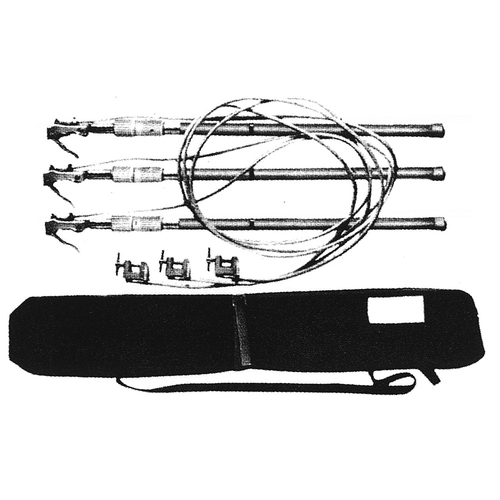

- 适用电压
Z1：275kV / Z2：154kV / Z3：77kV[目标范围因型号而异] - 按钮式伸缩式操作杆
- Applicable voltage
Z1：275kV / Z2：154kV / Z3：77kV[Target range varies depending on model] - Operating rod of button type telescopic model

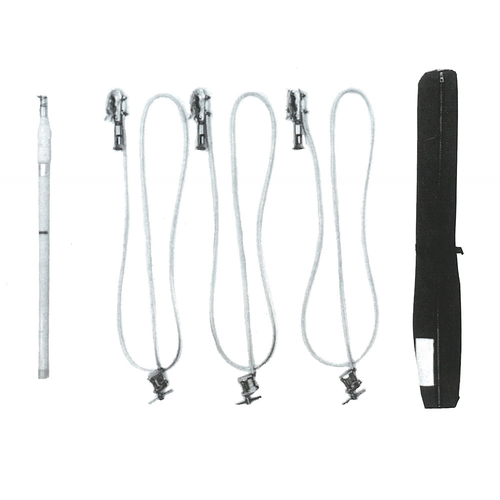

- 适用电压
ZB2：154kV / ZB3：77kV
目标范围因机型而异] - 按钮式伸缩式操作杆
- Applicable voltage
ZB2：154kV / ZB3：77kV
Target range varies depending on model] - Operating rod of button type telescopic model
