- 工作电压范围：1kV至42kV
- 检测到接近火线时电子蜂鸣器的警报声。
- 由于没有电源开关，并且始终处于待机状态，因此非常适合防止人为错误。
- 电池：CR1620（3V）×1pce

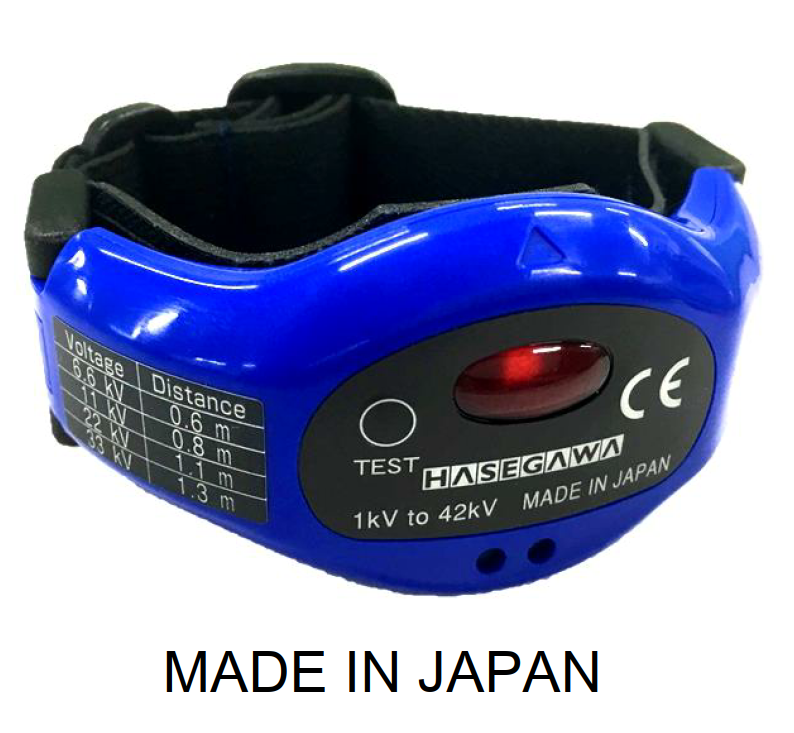

| 型号 | HXW-6W | |
| 工作电压范围 | 1kV to 42kV | |
| 操作启动标准电压 | 60cm对6.6kV(3.8kV对地) *在长谷川的标准条件下。 | |
| 频率 | 双频率50hz and 60Hz | |
| 显示 | 灯光 | 8000Lx亮度下可观测 |
| 声音 | 65分贝或更高（60厘米远） | |
| 操作温度范围 | -10℃ ～ +40℃ | |
| 电池 | CR1620 (3V) × 1个 | |
| 电池寿命（新电池） | 连续运行状态：大约15小时。 | |
| 未使用状态：大约10个月。 | ||
| 防水性能 | 符合IPX4 | |
| 重量 | 大约35克 | |
| 尺寸 | (W) 77mm×(D) 40mm×(T) 14mm | |
操作电压距离（理论值）
| 标称电压 | 操作距离 |
| 6.6kV | 0.6m |
| 11KV | 0.8m |
| 22KV | 1.1m |
| 33KV | 1.3m |
操作电压-距离图（理论值）
*工作电压-距离表和图是理论值。
操作距离根据实际的周围环境而变化。
使用前请确认实际使用环境中的操作距离。
- Working voltage range：1kV to 42kV
- Alarm sound of electronic buzzer when approaching to live line is detected.
- It is ideal for preventing human errors, as there is
no power switch and it is always on stand-by. - Battery: CR1620(3V) ×1pce
| Type | HXW-6W | |
| Working Voltage range | 1kV to 42kV | |
| Standard Distance for Operation Start | 60cm against 6.6kV (3.8kV to ground) * Under Hasegawa’s standard conditions. | |
| Frequency | Both 50 and 60Hz | |
| Display | Light | Observable under brightness of 8,000Lx |
| Sound | 65dB or more (60cm apart) | |
| Operating Temperature range | -10℃ ～ +40℃ | |
| Battery | CR1620 (3V) × 1pcs | |
| Battery Life (With New Battery) | Continuously Operating State: About 15hr. | |
| Unused State: About 10months. | ||
| Waterproof Performance | Conform to IPX4 | |
| Weight | About 35ｇ | |
| Dimensions | (W) 77mm×(D) 40mm×(T) 14mm | |
Operation Voltage-Distance (Theoretical value)
| Nominal Voltage | Operation Distance |
| 6.6kV | 0.6m |
| 11KV | 0.8m |
| 22KV | 1.1m |
| 33KV | 1.3m |
Operation Voltage-Distance graph (Theoretical value)
* Operation Voltage-Distance Table and graph are theoretical value.
Operation distance is varied depending on the actual surrounding environment.
Please confirm operation distance in actual use environment before using.
- 工作电压：6.6kV

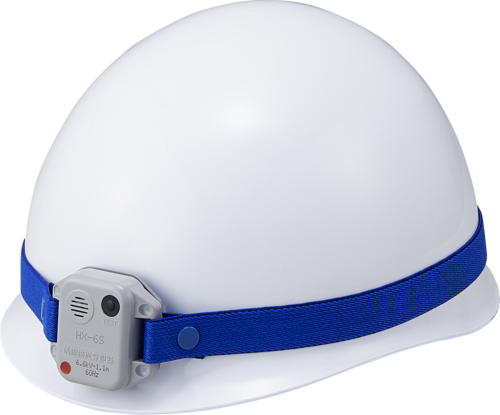

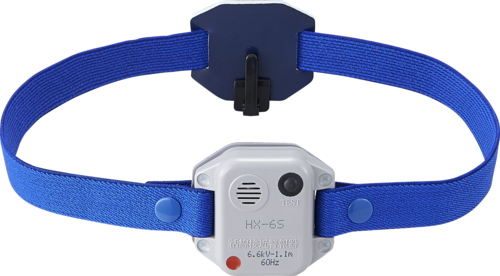

- 用于架空线路工作的热线接近警报
- 电池：CR2025或CR2032（3V）×1pce
- Working voltage：6.6kV
- Hot line proximity alarm exclusively for overhead line work
- Battery: CR2025 or CR2032(3V) ×1pce
- 工作电压：6.6kV
- 用于架空线路工作的热线接近警报
- Working voltage：6.6kV
- Hot line proximity alarm exclusively for overhead line work

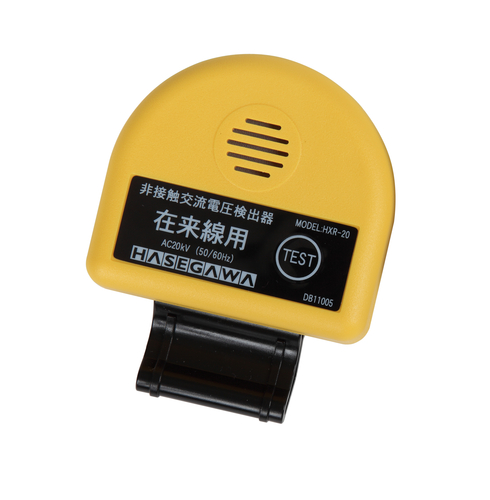

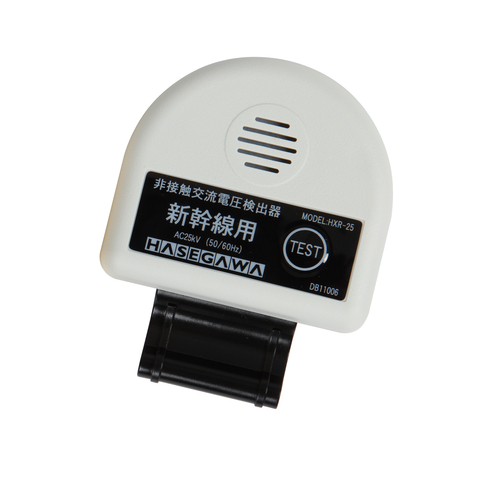

- 工作电压范围：HXR-20：20kV / HXR-25：25kV
- 距通电的架空接触线，普通铁路[AC 20kV]和高速铁路[AC 25kV]约2m处会产生警报。
- 它具有识别处于充电状态的架空接触线的方向性。

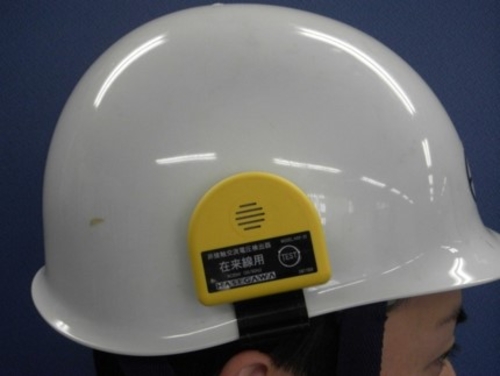

- 它结构紧凑，轻巧，可以一键式安装在头盔上。
- 电池：CR2025 [3V]×1pce
- Working voltage range:
HXR-20: 20kV / HXR-25: 25kV - Alarm is generated at a distance of about 2m from
the energized overhead contact lines, normal
railways[AC 20kV] and High speed Railway[AC 25kV]. - It has directionality to identify overhead contact
lines in a charged state. - it is compact, lightweight, and can be fitted to a
helmet with a one-touch operation. - Battery: CR2025 [3V] ×1pce
