用于外部绝缘的电缆剥线器
应用范围：
?16 – 54 mm
绝缘厚度：
0.5 – 5 mm
建议应用：
高密度聚乙烯
AIS
Cable Stripper for External Insulation
Application range:
? 16 – 54 mm
Insulation thickness:
0,5 – 5 mm
Suggested application:
High density polyethylene
技术特征
?纵向和圆形切割LV和MV电缆
?双组件手柄适用于高达1000V AC和1500V DC的带电部件
?旨在剥离端部和中跨
?纵向和圆形切口
?钩形刀片，用于移除已切割的护套
?颜色编码且易于拆卸的塑料环? 以0.5 mm的增量限制切割深度
?100°刀具旋转可实现360°圆周切削
?使用棘轮杆在两个方向上纵向进给
?电绝缘可互换刀片
?刀头（刀片除外）完全受到绝缘保护，? 防止意外接触
?为极低温使用而设计，温度低至-40°C
可调节切割深度限制
适合在带电部件上工作
精确加工的进料杆，操作员的安全
| 描述 | 订单号。 | 外形尺寸 | 重量 |
|---|---|---|---|
| 设置：AIS | 1719 0 | 390 x 330 x 90毫米 | 2,0公斤 |
| 备用刀片 | 1719 5 |
设备
- AIS – 电缆剥线钳
- 进料杆
- 10 x 14彩色识别垫圈
- 2用于固定刀片的备用螺钉
- 2.5毫米内六角扳手
- 刚性塑料外壳
Technical Characteristics
? Longitudinal and circular cuts LV and MV cables
? Two-component handles suitable to work on live parts up to 1000V AC and 1500V DC
? Designed to strip the ends and midspan
? Longitudinal and circular cuts

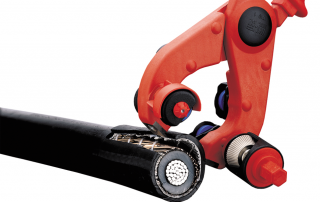

? Hooked blade for removing the sheath that has been cut

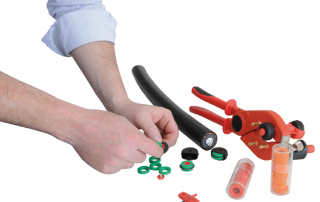

? Color-coded and easily removable plastic rings limit the depth of cut
in?0.5 mm increments

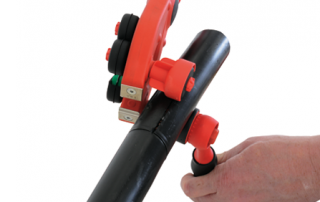

? 100° tool rotation makes a complete 360° circumference cut

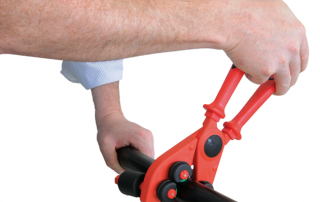

? Longitudinal feed in both directions using the ratchet lever
? Electrically insulated interchangeable blades
? The tool head (except for the blades) is totally protected by insulation
against accidental contacts
? Designed for very low temperature uses, down to -40°C
adjustable cutting depth limitation
suitable to work on live parts
feedlever for precise working and max. safety of operator
| Description | Order No. | Dimensions | Weight |
|---|---|---|---|
| Set: AIS | 1719 0 | 390?x?330 x?90 mm | 2,0 kg |
| Spare blade | 1719 5 |

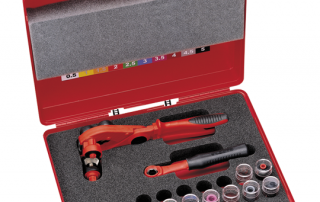

SET Equipment
- AIS – cable stripper
- Feed Lever
- 10 x 14 Colored identification washers
- 2 Spare screws to fasten the blade
- 2,5 mm allen wrench
- Rigid plastic case
