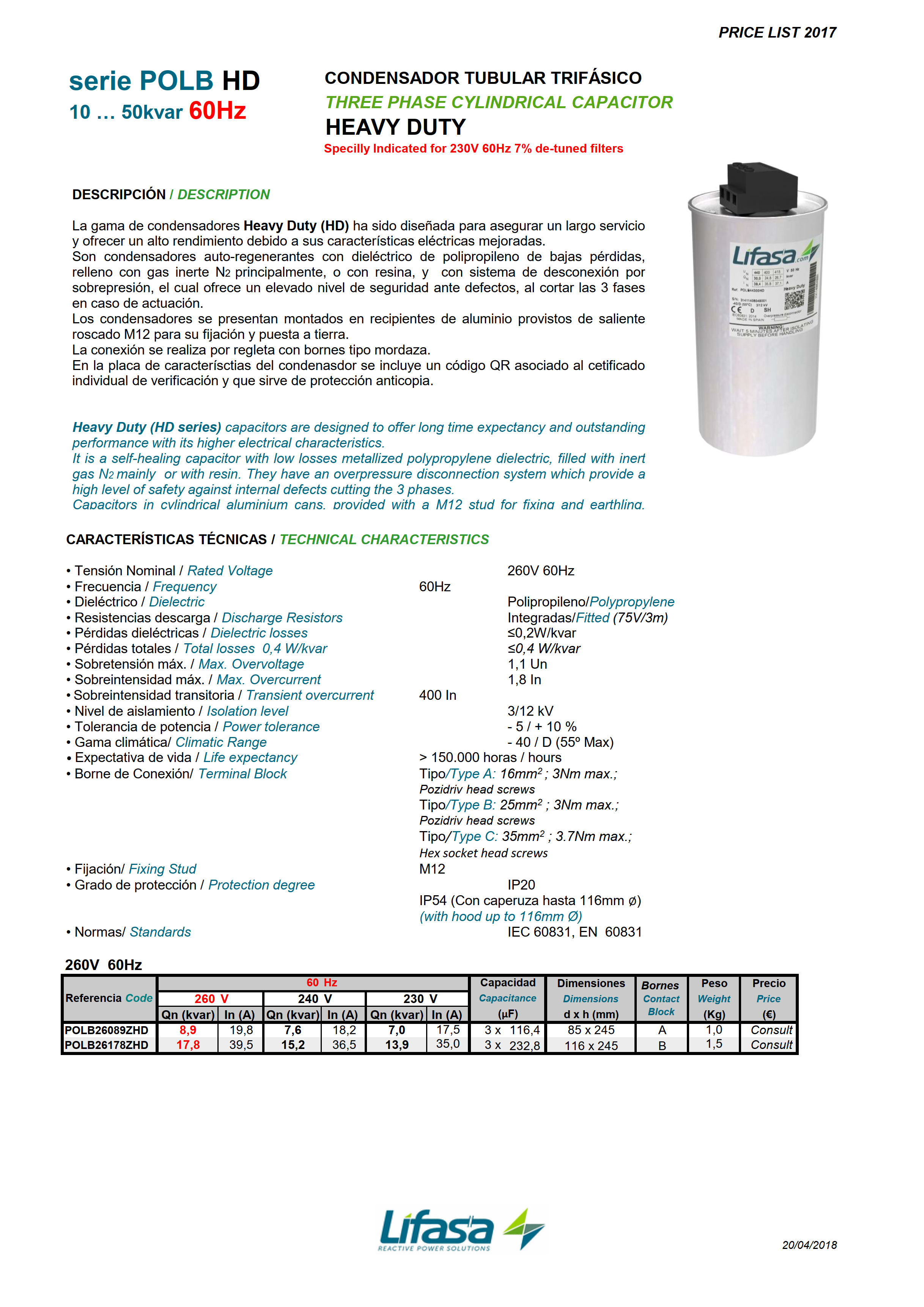

电力电容POLB HD 7％
重载（HD系列）电容器具有更高的电气特性，可提供长时间的预期性能和性能。
它是一种自修复电容器，具有低损耗的金属化聚丙烯电介质，填充有惰性气体N2。它们具有超压断开系统，可提供高水平的安全性，防止切割3相的内部缺陷。
电容器采用圆柱形铝制外壳，配有M12螺柱，用于固定和接地。?通过带有钳型端子的端子块进行连接。
铭牌包含相关的QR码，允许您下载个人例行测试证书，并且还提供复制保护。
Power Capacitor POLB HD 7%
Heavy Duty (HD series) capacitors are designed to offer long time expectancy and outstanding performance with its higher electrical characteristics.
It is a self-healing capacitor with low losses metallized polypropylene dielectric, filled with inert gas N2. They have an overpressure disconnection system which provides a high level of safety against internal defects cutting the 3 phases.
Capacitors are built in cylindrical aluminum cans, provided with a M12 stud for fixing and earthling.?Connection is made by a terminal block with clamp type terminals.
The name plate includes a QR code associated, allowing you to download the individual routine test certificate, and it also offers a copy protection.
| 额定电压 | 230 … 690V |
| 频率 | 50赫兹 |
| 电介质 | 聚丙烯 |
| 放电电阻 | 适合?（75V / 3m） |
| 介电损耗 | ≤0.2W / kvar |
| 总损失 | ≤0.4W / kvar |
| 最大过压保护 | 1.1Un |
| 最大过流 | 1.8英寸 |
| 瞬态过流 | 400英寸 |
| 隔离级别 | 3 / – kV rms |
| 功率容差 | -5 / + 10％ |
| 气候范围 | – 40 / D（+55?C） |
| 预期寿命 | 150.000小时 |
| 接线端子 | A型：16mm?;?最大3 Nm |
| B型：25mm?;?最大3 Nm | |
| C型：35mm?;?最大3.7 Nm | |
| 保护 | IP20 IP54?带罩直径?116mm |
根据要求提供其他功率，电压和频率。
| Rated Voltage | 230 … 690V |
| Frequency | 50 Hz |
| Dielectric | Polypropylene |
| Discharge resistors | Fitted?(75V/3m) |
| Dielectric losses | ≤ 0.2 W/kvar |
| Total losses | ≤ 0.4 W/kvar |
| Max. Overvoltage | 1.1 Un |
| Max. Overcurrent | 1.8 In |
| Transient Overcurrent | 400 In |
| Isolation level | 3/- kV rms |
| Power tolerance | -5 / +10% |
| Climatic range | – 40/ D (+55?C) |
| Life expectancy | 150.000 hours |
| Terminal block | Type A: 16 mm?; 3 Nm max. |
| Type B: 25 mm?; 3 Nm max. | |
| Type C: 35 mm?; 3.7 Nm max. | |
| Protection | IP20 IP54 with hood up to ?116mm |
Other powers, voltages and frequencies on request.
| 260V? 60Hz | ||||||||||
| Part Number | 60 Hz | Capacitance (?F) | Dimensions d x h (mm) | Weight (kg) | Terminal Block | |||||
| 260 V | 240 V | 230 V | ||||||||
| Qn (kvar) | In (A) | Qn (kvar) | In (A) | Qn (kvar) | In (A) | |||||
| POLB26089ZHD | 8,9 | 19,8 | 7,6 | 18,2 | 7,0 | 17,5 | 3×116,4 | 85×245 | 1,0 | A |
| POLB26178ZHD | 17,8 | 39,5 | 15,2 | 36,5 | 13,9 | 35,0 | 3×232,8 | 116×245 | 1,5 | B |
