刚性索线水平锚固生命线系统
参考：HORIZON PN 4000（屋顶安装）
Horizo??n PN 4000为必须不断沿高架水平轨道移动的用户提供永久性锚固。它包括一条直径为8毫米的不锈钢钢丝绳（316级），沿着水平轨道运行，并使用特殊的末端支柱安装在末端。中间支架将导线沿导线的整个长度固定，并以最大15mtrs的间隔安装。钢丝绳在一端的张紧器的帮助下保持张紧，而另一端在末端末端的眼睛上有一个无绷紧的终端。
不锈钢支架体在Lanyard的帮助下将使用者连接到生产线，并且在水平线的整个长度上以及通过中间支架平稳地移动而不间断，从而确保用户始终100％固定。
该生产线的一端还配有减震器，可减少跌落对使用者和四肢的影响。
该系统还有一个检查铭牌，用于检查记录的识别，可追溯性和维护。一根不锈钢扎带用于将系统铭牌固定到结构上。在安装时，通过数字冲头在板上冲压相关细节。在检查和重新验证后，每年在板上打出重新验证日期。
该系统是多功能的，可以安装在墙壁，地板，天花板以及预制建筑屋顶，易碎屋顶，使用相同组件的机场，通过使用适当的柱子将系统安装到客户的接收结构。
Horizontal Anchorage Lifeline System on Rigid Cable Line

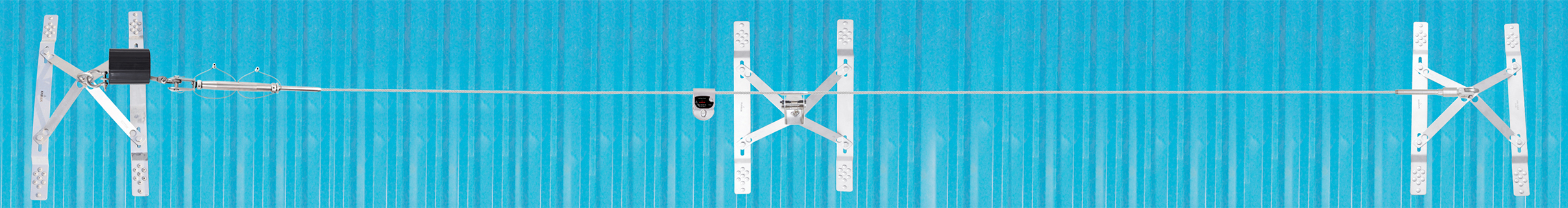

Ref : HORIZON PN 4000 (Roof Mounted)
Horizon PN 4000 provides permanent anchorage to a user who has to constantly move along an elevated horizontal track. It comprises of a Stainless Steel Wire Rope (grade 316) of 8mm diameter running all along the horizontal track, and is installed at the ends using special End Extremity Posts. The Intermediate brackets hold the wire in position all along the length of the wire, and are installed at intervals of Maximum 15mtrs. The Wire Rope is maintained in tension with the help of Tensioner at one end, while the other end has a swageless termination on to the Eye of the End Extremity Post.
The Stainless Steel Carriage Body connects the user to the line with the help of a Lanyard and moves smoothly without ?interruption along the entire length of the Horizontal line and also through the Intermediate Brackets, thus ensuring 100% anchorage of the user at all times.
The line also has a Shock Absorber at one end which reduces the impact of fall both on the user as well as on the extremities.
The system also has an Inspection Name Plate for identification, traceability and maintenance of inspection records. One Stainless Steel Cable tie is used to fasten the System Name Plate to the structure. At time of installation, the relevant details are punched on the plate by a number punch. The revalidation dates are punched each year on the plates after inspection and revalidation.

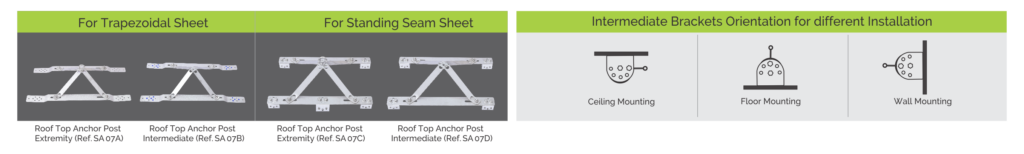

The System is versatile and can be installed on Walls, Floors, Ceilings as well as on Pre-engineered Building Roofs, Fragile Roofs, Airports using the same components by using appropriate posts to install the system to the client’s receiving structure.
