机架安装采用标准接触器，无谐波滤波器
该MOD-RACK模块包括，以紧凑的尺寸中，所有必要的组件实现一个步骤的一个标准的电容器组中的开关。MOD-RACK模块由两个基本部分组成：切换块和控制块。两个部件都安装在一个小框架中，以安装在电路板上。
MOD-RACK系列功率电容器模块包括母线系统，高破裂容量保险丝，接触器和低损耗功率电容器POLB在一个紧凑的单元中。模块完全接线，可以安装在500x600mm的标准机柜上。（W x D）。
Rack-Mounting with standard contactors without harmonic filters
The MOD-RACK module includes, in a compact size, all the components necessary to realize the switch of one step for a standard capacitor bank. The MOD-RACK modules are composed of two basic parts: switching block and control block. Both parts are mounted in a small frame to be installed in an electric board.
The MOD-RACK series of power capacitor modules include busbar system, high rupture capacity fuses, contactor and low losses power capacitors POLB in one compact unit. The modules are completely wired and ready to be installed on standard cabinets 500x600mm. (W x D).
| 电压 | 400/440 Vca |
| 辅助电压 | 230伏 |
| 频率 | 50/60赫兹 |
| 电容器 | POLB类型 |
| 保险丝 | NH00 |
| 温度 | -40 / +55?C |
| 保护 | IP00 |
| 安装 | 室内 |
根据要求提供其他功率，电压和频率。
| Voltage | 400/440 Vca |
| Auxiliary voltage | 230 V |
| Frequency | 50 / 60 Hz |
| Capacitor | POLB Type |
| Fuses | NH00 |
| Temperature | -40/+ 55?C |
| Protection | IP00 |
| Installation | Indoor |
Other powers, voltages and frequencies on request.

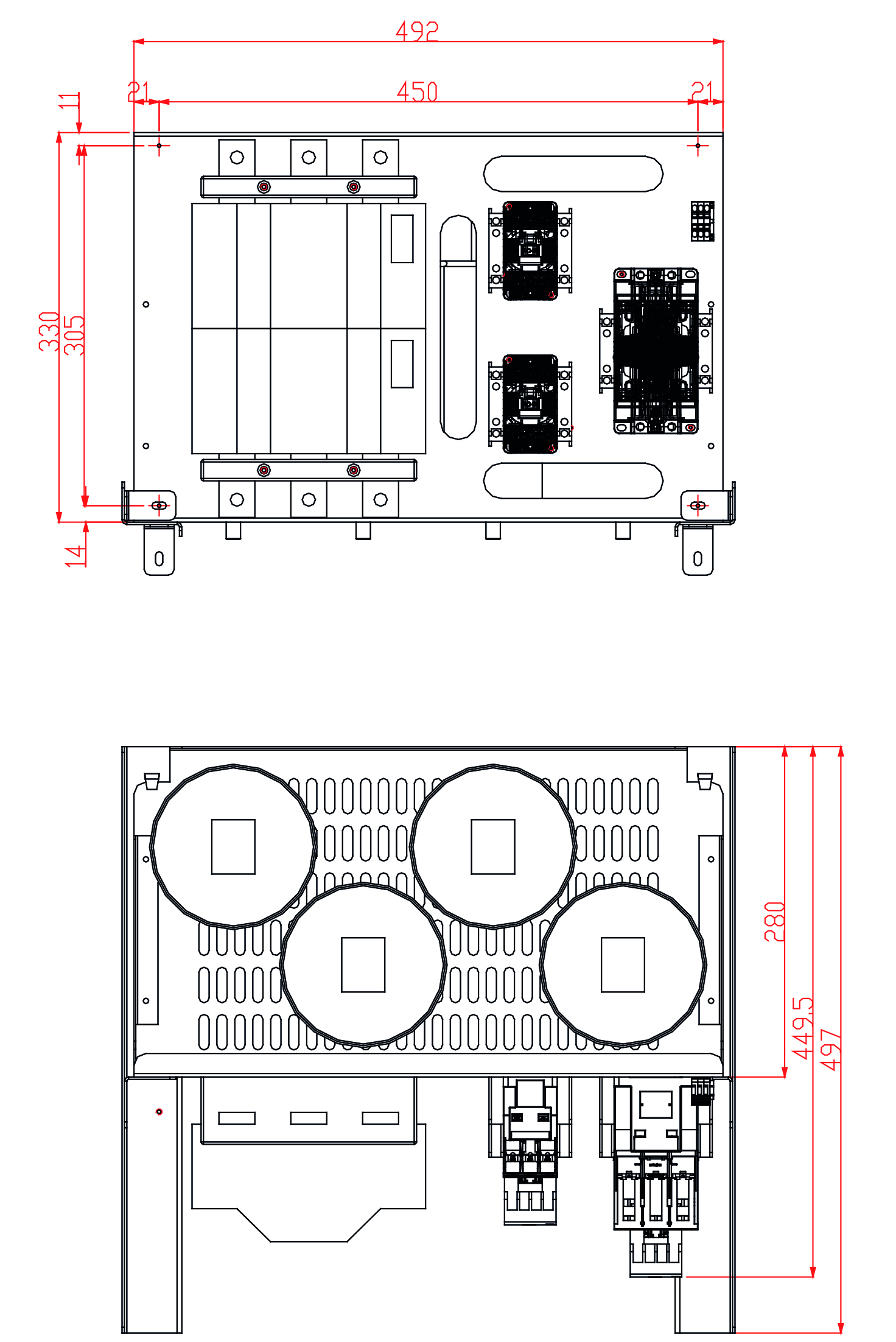

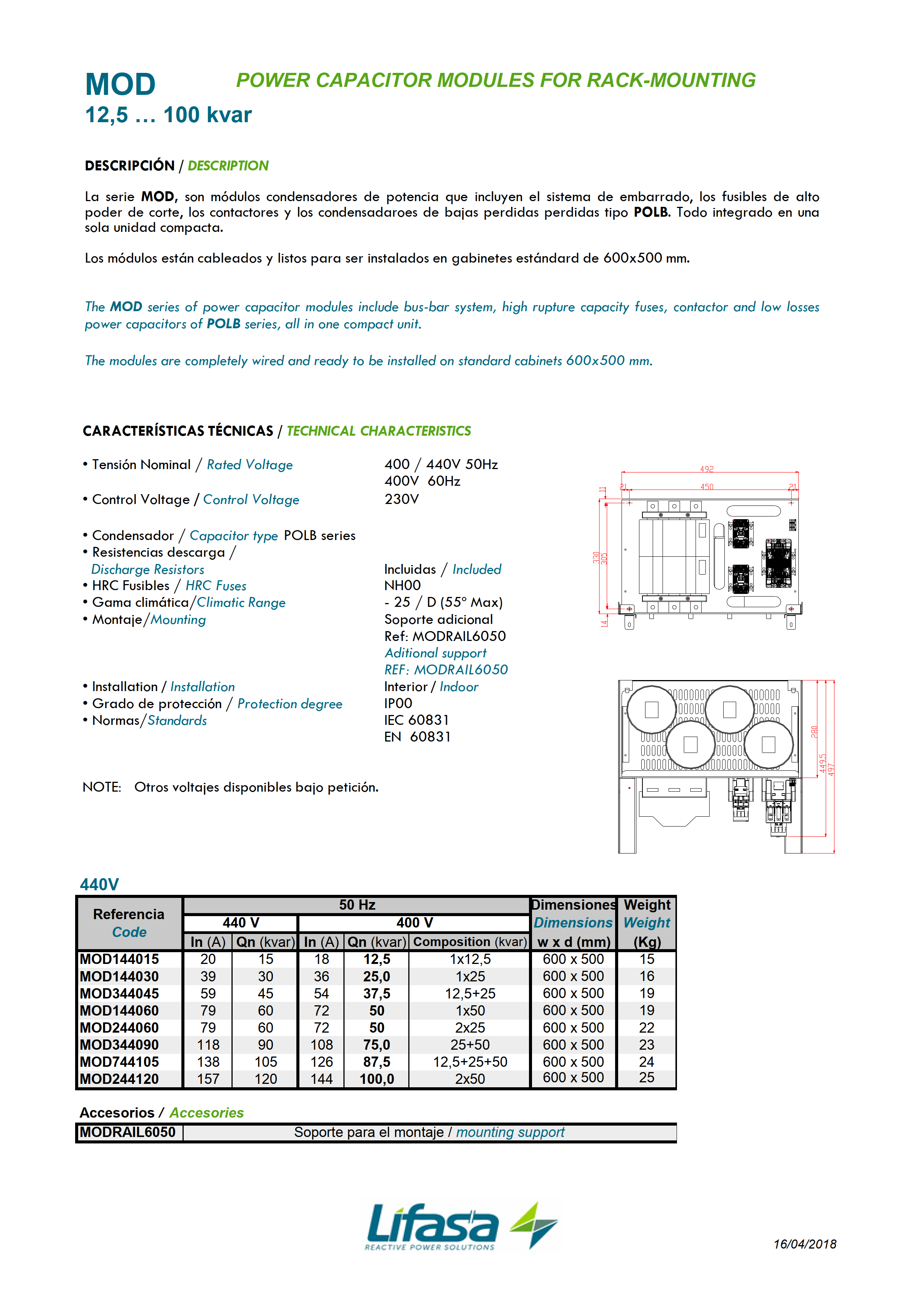

| 440V | ? | ? | ? | ? | ? | ? | ? |
| Code | 50 Hz | Dimensions w x d(mm) | Weight (Kg) | ||||
| 440 V | 400 V | ||||||
| In (A) | Qn (kvar) | In (A) | Qn (kvar) | ?Composition (kvar) | |||
| MOD144015 | 20 | 15 | 18 | 12,5 | 1×12,5 | 600×500 | 15 |
| MOD144030 | 39 | 30 | 36 | 25,0 | 1×25 | 600×500 | 16 |
| MOD344045 | 59 | 45 | 54 | 37,5 | 12,5+25 | 600×500 | 19 |
| MOD144060 | 79 | 60 | 72 | 50 | 1×50 | 600×500 | 19 |
| MOD244060 | 79 | 60 | 72 | 50 | 2×25 | 600×500 | 22 |
| MOD344090 | 118 | 90 | 108 | 75,0 | 25+50 | 600×500 | 23 |
| MOD744105 | 138 | 105 | 126 | 87,5 | 12,5+25+50 | 600×500 | 24 |
| MOD244120 | 157 | 120 | 144 | 100,0 | 2×50 | 600×500 | 25 |
| ? | ? | ? | ? | ? | ? | ? | ? |
| ? | ? | ? | ? | ? | ? | ? | ? |

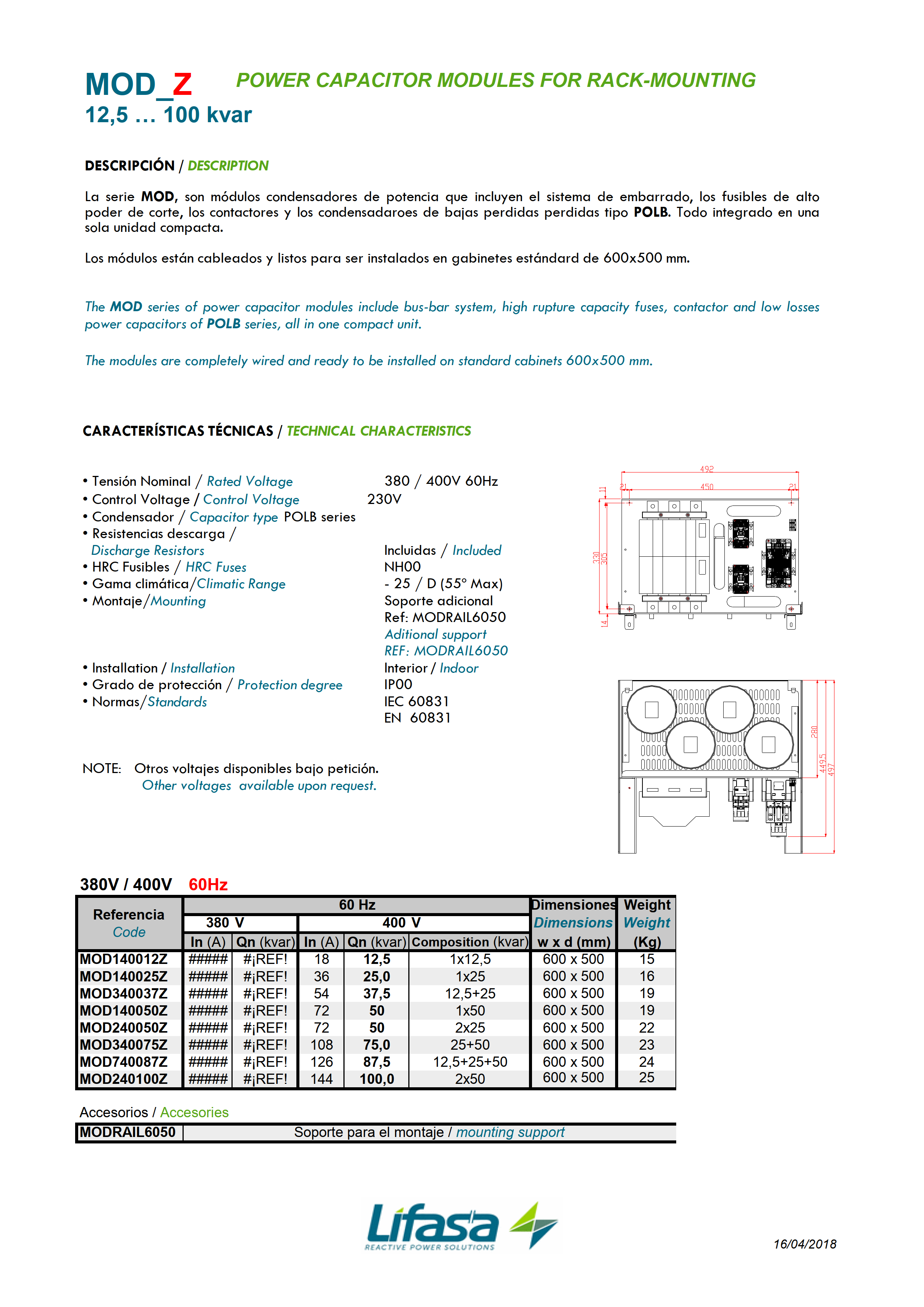

| 380V / 400V 60Hz | ? | ? | ? | ? | ? | ? | ? |
| Code | 50 Hz | Dimensions w x d(mm) | Weight (Kg) | ||||
| 440 V | 400 V | ||||||
| In (A) | Qn (kvar) | In (A) | Qn (kvar) | ?Composition (kvar) | |||
| MOD140025Z | ? | ? | 36 | 25,0 | 1×25 | 600×500 | 16 |
| MOD340037Z | ? | ? | 54 | 37,5 | 12,5+25 | 600×500 | 19 |
| MOD140050Z | ? | ? | 72 | 50 | 1×50 | 600×500 | 19 |
| MOD240050Z | ? | ? | 72 | 50 | 2×25 | 600×500 | 22 |
| MOD340075Z | ? | ? | 108 | 75,0 | 25+50 | 600×500 | 23 |
| MOD740087Z | ? | ? | 126 | 87,5 | 12,5+25+50 | 600×500 | 24 |
| MOD240100Z | ? | ? | 144 | 100,0 | 2×50 | 600×500 | 25 |
| ? | ? | ? | ? | ? | ? | ? | ? |
| ? | ? | ? | ? | ? | ? | ? | ? |
| Accessories | ? | ? | ? | ? | ? | ? | ? |
| MODRAIL6050 | mounting support | ? | ? | ? | ? | ? | |
