Dual-Laser Infrared Thermometer, 20:1

IR10

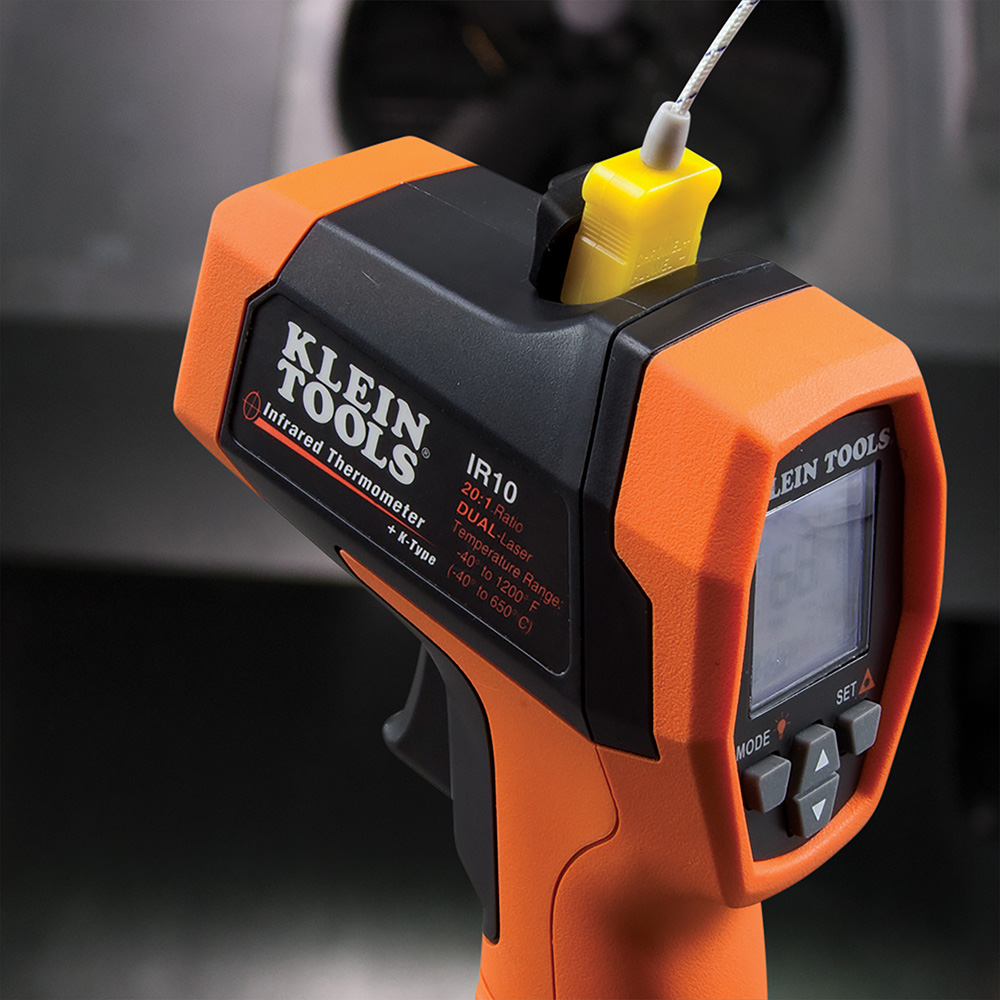

  • Incorporates surface temperature measurement capability using IR emission and can also measure bulk temperatures of air, gas, or liquids using a standard K-Type probe

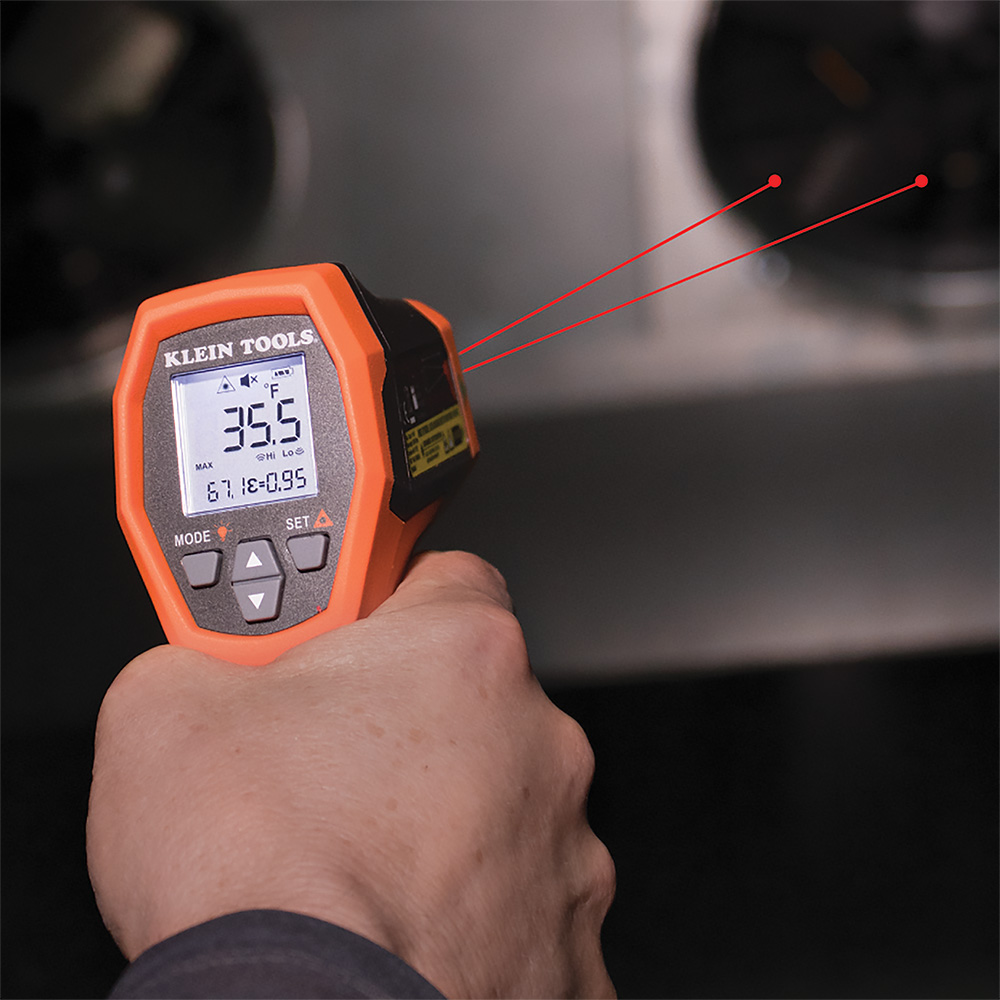

  • Dual targeting lasers offer more accurate determination of the area being tested
  • Optical Resolution (Distance-to-Spot) is 20:1
  • Measurement range for both IR and K-Type probe -40 to 1200-Degree Fahrenheit (-40 to 650-Degree Celsius)
  • Adjustable emissivity from 0.1-1.0 delivers flexibility to address multiple applications
  • Bright backlit display for working in low ambient lighting conditions
  • Statistical parameters for measurement event – max/min/avg/diff
  • User definable high/low limits with audible and visual alarms when limits are breached
  • Uses one 9-volt alkaline battery, with battery life expectancy at 8 hours of continuous use with laser and backlight on

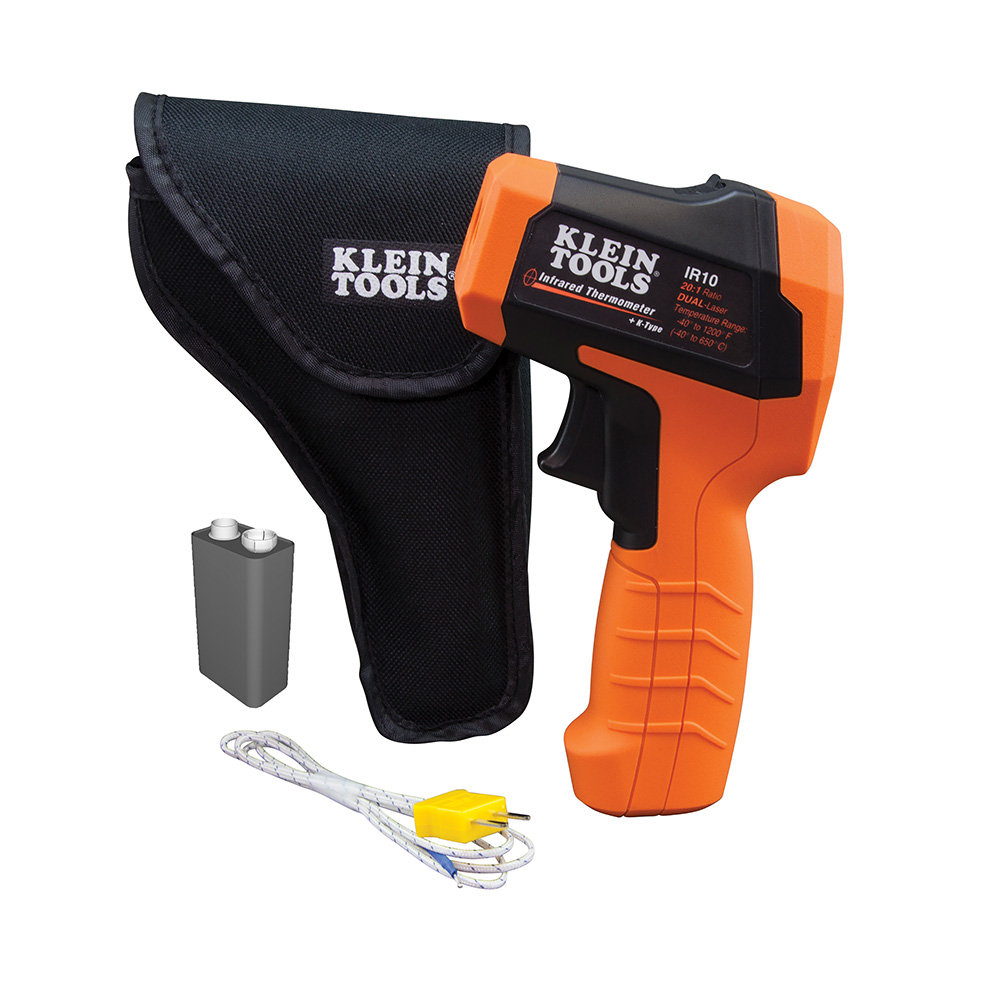

  • Includes custom pouch, K-Type probe and battery
  • Soft-touch, over-mold housing; built to withstand a 9.9-Foot (3 m) drop
  • IP54 ingress protections for dust and water resistance
  • ”Auto Power-Off” conserves and extends battery life

双激光红外测温仪，20：1

IR10

  • 利用红外发射结合表面温度测量能力，还可以使用标准K型探头测量空气，气体或液体的体温
  • 双靶向激光器可以更准确地确定被测区域
  • 光学分辨率（距离到点）是20：1
  • IR和K型探头的测量范围-40至1200华氏度（-40至650摄氏度）
  • 0.1-1.0的可调发射率可灵活地满足多种应用需求
  • 明亮的背光显示屏，适用于低环境照明条件下工作
  • 测量事件的统计参数 – 最大/最小/平均/差异
  • 用户可定义的上限/下限，在违反限制时发出声音和视觉警报
  • 使用一节9伏碱性电池，电池预期寿命为8小时，连续使用激光和背光
  • 包括定制袋，K型探头和电池
  • 柔软触感，模压外壳;?可承受9.9英尺（3米）的跌落
  • IP54防护等级，防尘防水
  • ”自动关机”可以节省并延长电池寿命

Klein Tools IR10 is a professional dual targeting laser infrared (IR) thermometer. It offers a wide measurement range, a tight 20:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. In addition to measuring temperature using IR emission, it can also measure temperature using a standard K-type probe.

Specifications
Type:
Dual-Laser Infrared Thermometer
Application:
Temperature Measurements Using IR Emission or K-Type Probe
Special Features:
Dual Targeting Lasers, 20:1 Distance-to-Spot Ratio; Hi/Low Limits with Simultaneous Audible and Visual Alarms When Limits are Breached; Bright Backlit Display; Works with K-Type Probe Also
Audible Alert:
Y
Material:
Plastic Housing, Electronic Compenents
Batteries:
1x 9V Alkaline
Distance to Spot:
20:1
Accuracy:
IR: 32° F and Above: +/- 3° F or +/- 1.5% (Whichever is Greater); Less Than 32° F: +/- (3.6° F + 0.2° F per Degree); K-Type: 32° F and Above: +/- 2° F or +/-% (Whichever is Greater); Above 32° F: +/- 3° or +/1% (Whichever is Greater)
Calculations:
Min/Max/Difference/Average
Display:
Digital Backlit
Display Resolution:
0.1F (0.1 C)
Degree Format:
F or C
Range:
-40° to 1200° F (-40° to 650° C)
Response Time:
<150ms
Auto Callibration:
N
Overall Length:
7.0” (177.8 mm)
Overall Height:
4.49” (114.0 mm)
Overall Width:
2.05” (52.1 mm)
Included:
Custom Pouch, K-Type Probe and Battery
Weight:
7.4 oz (210 g)
UPC:
092644691850
WARNINGS
  • Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
  • LASER RADIATION, Class II laser. Do NOT stare into beam. Exposing eyes to laser radiation can result in severe and permanent eye injuries. NEVER look directly into the laser beam emitted by this instrument.
  • Usage of this tester in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.

Klein Tools IR10是一款专业的双靶向激光红外（IR）温度计。它提供了广泛的测量范围，20：1的紧密距离比，双靶向激光器和多种计算模式，以便于不同的温度测量应用。除了使用红外发射测量温度外，它还可以使用标准K型探头测量温度。

产品规格
类型：
双激光红外测温仪
应用：
使用IR发射或K型探针进行温度测量
特殊功能：
双目标激光器，20：1距离 – 点比率;?当限制被违反时，具有同时声音和视觉警报的高/低限制;?明亮的背光显示;?与K型探头一起使用
声音警报：
?
材料：
塑料外壳，电子元件
电池：
1x 9V碱性
到现场的距离：
20：1的
准确性：
IR：32°F及以上：+/- 3°F或+/- 1.5％（以较大者为准）;?低于32°F：+/-（3.6°F + 0.2°F /度）;?K型：32°F及以上：+/- 2°F或+ / – ％（以较大者为准）;?高于32°F：+/- 3°或+ / 1％（以较大者为准）
计算：
最小/最大/差值/平均值
显示：
数码背光
显示分辨率：
0.1F（0.1 C）
学位格式：
F或C.
范围：
-40°至1200°F（-40°至650°C）
响应时间：
<150毫秒
自动校准：
?
总长度：
7.0”（177.8 mm）
总体高度：
4.49”（114.0 mm）
总宽度：
2.05英寸（52.1毫米）
包括：
定制袋，K型探针和电池
重量：
7.4盎司（210克）
UPC：
092644691850
警告
  • 在每次使用之前，请阅读，理解并遵守所有测试和测量设备附带和/或包装的所有说明，注意事项和警告。
  • 激光辐射，II类激光。不要盯着光束。将眼睛暴露于激光辐射会导致严重和永久性的眼睛受伤。切勿直视本仪器发出的激光束。
  • 以非制造商指定的方式使用本测试仪可能会影响安全操作，导致严重伤害或死亡。
