- 在小隔间工作中防止电击的必要项目警告接近带声光的充电装置
- [新特征]
■除声音操作，可视化和报警由LED发光
■“操作周期”可以体验到带电部件之间的距离（当它接近充电单元，发音和发射操作更快）
■防水性能达（相当于IPX 4） - 报警起始距离：AC 6.6 kV（接地电压3.8 kV） – 60 cm?（在我们的标准状态下）
频率：50 Hz / 60 Hz常见 - 使用的电池：CR 1620锂电池×1
CE标志

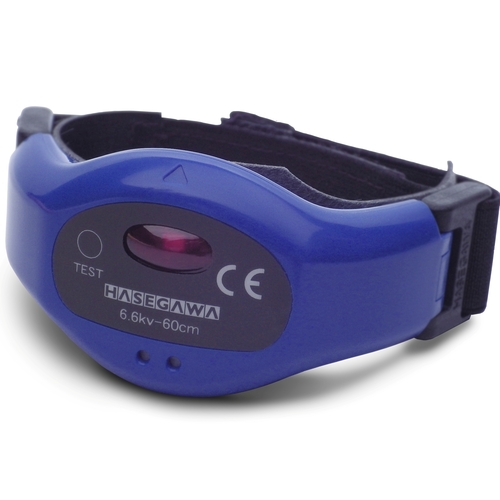

Auxiliary voltage detection device that gives alarm sounding at a distance when approach to a live line.
? Alarm sound of electronic buzzer when ap-proaching to live line is detected.
? It is ideal for preventing human errors, as there is no power switch and it is always on stand-by.
| 型号 | HXW-6 | HX-6 | HX-6S | |
| 使用场合 | 与隔间（狭小空间）有关的工作 | 供架空线路作业 | ||
| 开始报警距离 | 60cm | 80cm | 110cm | |
| 频率 | Both 50Hz and 60Hz | 50Hz或者60 Hz, 需指定 | ||
| 音量 | 65dB or more (60cm apart) | 65dB or more (1m apart) | ||
| 电池 | CR1620(3V) × 1 1 | CR2025 or CR2032(3V) × 1 1 | ||
| 电池寿命（新） | 持续使用状态 | 约 15 小时 | 约 50 小时 | |
| 未使用状态 | 约10个月 | 约2年 | ||
| 操作温度范围 | －10℃～＋40℃ | －5℃～＋45℃ | ||
| Model | HXW-6 | HX-6 | HX-6S | |
| Location of use | Exclusively for work relating to cubicles | Exclusive for work with overhead lines | ||
| Alarm starting distance （Under standard condition） | 60cm | 80cm | 110cm | |
| Frequency | Both 50Hz and 60Hz | Either 50 Hz or 60 Hz, whichever is designated | ||
| Sound volume | 65dB or more (60cm apart) | 65dB or more (1m apart) | ||
| Battery | CR1620(3V) × 1 pcs | CR2025 or CR2032(3V) × 1 pcs | ||
| Battery life （with new battery | Continuously operating state | About 15 hr | About 50 hr | |
| Unused state | About 10 months | About 2 years | ||
| Operating temperature range | －10℃～＋40℃ | －5℃～＋45℃ | ||
