电场探头?HI-6153电场探头

ETS-Lindgren的HI-6153电场探头的工作频率范围为10 MHz至40 GHz。

ETS-Lindgren的HI-6153型激光电源探头提供宽带EMF频率覆盖和宽动态范围，可满足大多数测试要求。为了利用这一功能，HI-6153射频场探头设计为单量程读数，因此可以在整个动态范围内连续读取数据。每个轴（X，Y，Z）的数据值可以单独读取或求和。

光纤信号和电源线将HI-6153型探头连接到HI-6100型现场监控器，或者通过HI-6113激光数据接口和ProbeView 激光软件直接连接到PC USB端口。

HI-6100通过IEEE-488和RS-232串行数据接口提供手动功能和编程控制。最多可同时显示四个探头的读数。

除了作为系统级平台的功能外，EMCenter 模块化射频平台和EMSense 接口卡还可与HI-6000系列现场探头一起用作现场监控器。

HI-6113为HI-6153提供激光功率和通信。通过USB连接到PC可以使用ProbeView激光软件快速轻松地收集数据。

英文简介

ELECTRIC FIELD PROBES HI-6153 Electric Field Probe

ETS-Lindgren’s?HI-6153 Electric Field Probe operates at a Frequency Range: 10 MHz to 40 GHz.

ETS-Lindgren’s?Model?HI-6153?Laser-powered?Electric Field Probes?provide?broadband EMF frequency coverage and wide dynamic range that satisfies the demands of most test requirements. To take advantage of this capability, the HI-6153 RF field probe was designed to be single range reading so data can be read continuously over the entire dynamic range. Data values for each axis (X,Y,Z) can be read individually, or summed.

?Fiber optic signal and power lines link the model HI-6153 probe to either the model HI-6100 Field Monitor, or as a direct connect to a PC USB port with the HI-6113 Laser Data Interface and ProbeView? Laser Software.

The HI-6100 provides manual functions and programmed control via IEEE-488 and RS-232 Serial Data Interfaces. Readings from up to four probes can be displayed simultaneously.

The EMCenter? Modular RF Platform along with the EMSense? interface card can be used with the HI-6000 series field probes as a field monitor in addition to its capability as a system level platform.

The HI-6113 provides the laser power and communications for the HI-6153. A USB connection to the PC allows for quick and easy data collection, using ProbeView Laser software.

技术参数

主要特点

- 激光供电无限的测试时间?
- 频率范围：10 MHz至40 GHz?
- 动态范围：2.0至800 V / m（单量程）?
- 提供单个和总和轴值?
- A2LA认可的校准报告?
- 适用于MIL标准规格：?
  - MIL-STD 461F辐射敏感性（RS）
- 适用于汽车规格：
  - SAE J1113 / 27
  - GMW 3091/3097/3103
  - 福特FMC 1278
- 适合商业规格：
  - EN / IEC 61000-4-3辐射抗扰度
- 使用大多数第三方免疫软件运行

产品规格

电气规格

检测各向同性:(?X，Y和Z轴读数）
频率范围：?10 MHz至40 GHz
带校正的频率响应：

10 MHz至18 GHz±0.9 dB
18至40 GHz±1.1 dB

频率响应（典型值）：

10至100 MHz + 3.0，-4.0 dB
100 MHz至1 GHz + 3.0，-0.50 dB
1至18 GHz + 4.0，-2.0 dB
18至40 GHz +3.5，-4.5 dB

动态范围：??2至800 V / m（单量程）
分辨率：??0.01 V / m
各向同性偏差：??±1.0 dB <18 GHz
线性度：??±0.5 dB
采样率（典型值）：??每秒70个样本最大
过载能力：?> 1500 V / m CW

物理规格

物理接口：

双工光纤（62.5微米多模）
用于激光电缆的FC连接器，整体1m光缆
ST变送器电缆连接器，1米光缆

工作温度范围：?10°至40°C（50°至104°F）;?5-95％相对湿度无冷凝

长度：??43.8厘米（17.24英寸）

宽度：??5.7厘米（2.24英寸）

重量：?0.36千克（12.64盎司）

安装：??1/4 in x 20 UNC内螺纹

其他规格

探针组装
A2LA可追踪校准报告
10米光纤电缆
隔板连接器（2）
携带箱
纤维清洁套件和棉签
手册

Technical Characteristics

Key Features

- Laser Powered for Unlimited Test Time?
- Frequency Range: 10 MHz?to 40 GHz?
- Dynamic Range: 2.0?to 800 V/m (Single Range)?
- Provides Individual and Summed Axis Values?
- A2LA Accredited Calibration Report?
- Suitable for MIL Standard Specs:?
  - MIL-STD 461F Radiated Susceptibility (RS)
  - Suitable for Automotive Specs:
    - SAE J1113/27
    - GMW 3091/3097/3103
    - FORD?FMC 1278
  - Suitable for Commercial Specs:
    - EN/IEC 61000-4-3 Radiated Immunities
  - Operates with Most 3rd Party Immunity Software

Specifications

Electrical Specifications

Detection Isotropic: (X, Y, and Z Axis Readings)
Frequency Range: 10 MHz to 40 GHz
Frequency Response with Correction:

10 MHz to 18 GHz ± 0.9 dB
18 to 40 GHz ± 1.1 dB

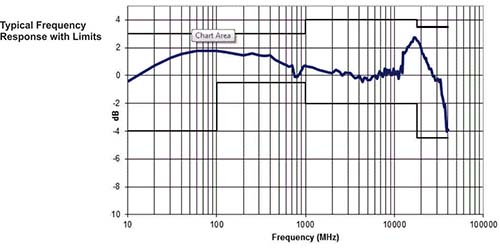

Frequency Response (Typical):

10 to 100 MHz + 3.0, -4.0 dB
100 MHz to 1 GHz +3.0, -0.50 dB
1 to 18 GHz +4.0, -2.0 dB
18 to 40 GHz +3.5, -4.5 dB

Dynamic Range:?2 to 800 V/m (Single Range)
Resolution:? 0.01 V/m

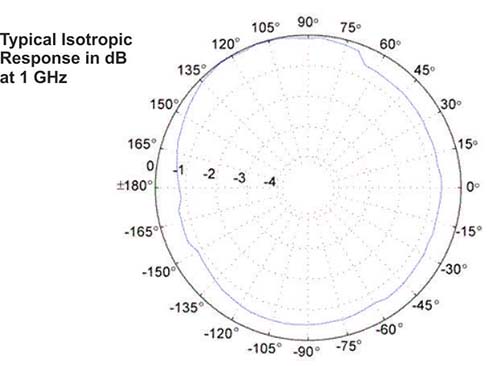

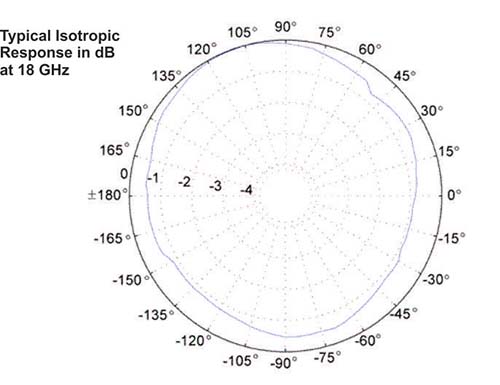

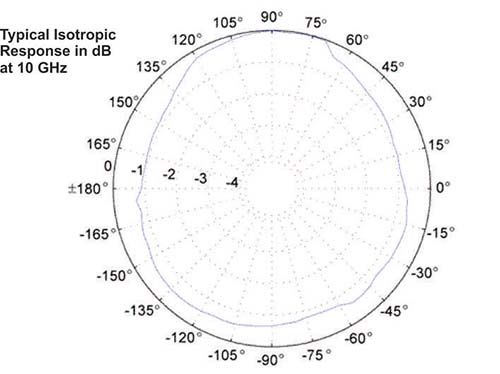

Isotropic Deviation:?±1.0 dB < 18 GHz

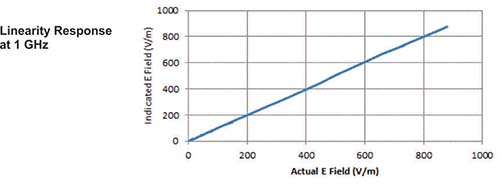

Linearity:?±0.5 dB
Sample Rate (Typical):?70 Samples per Second Maximum
Overload Withstand: >1500 V/m CW
