HI-6006电场探头 现场可更换电池

ELECTRIC FIELD PROBES HI-6006 Electric Field Probe with Field-Replaceable Battery

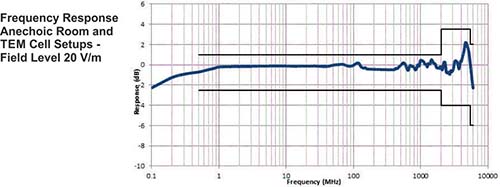

ETS-Lindgren’s HI-6006 Electric Field Probe has a?Frequency Response of?100 kHz to 6 GHz.

ETS-Lindgren’s Model HI-6006 Electric Field Probe is a fully intelligent sensor enabling fast and accurate EMF measurements with industry-leading performance specifications. Optical coupling to a variety of readout options makes this probe ideally suited for a wide range of field monitoring applications.

Designed to be single range reading, the HI-6006 RF field probe?can read data continuously over the entire dynamic range. Data values for each axis (X, Y, and Z) can be read individually or summed.

A unique feature of the HI-6006 is the field-replaceable battery. This battery allows the user to replace the battery when necessary, without requiring additional calibration. Simple in-field synchronization of the HI-6006 is all that is required for proper battery level monitoring.

The HI-6100 Field Monitor provides manual functions and programmed control via IEEE-488 and RS-232 Serial Data Interfaces. Readings from up to four field probes can be displayed simultaneously.

The EMCenter? Modular RF Platform along with the EMSense? interface card can be used with the HI-6000 series field probes as a field monitor in addition to its capability as a system level platform.???

For direct connection to a PC, either the HI-4413P Serial or the HI-4413USB interfaces are available.
