磁场探头?HI-4433-LFH磁场探头
ETS-Lindgren的HI-4433-LFH磁场探头可测量磁场强度,并提供X,Y和Z以及总场值。
ETS-Lindgren的HI-4433-LFH磁场探头可测量磁场强度,并提供X,Y和Z以及总场值。每个轴的数据可以单独查看或总结。现场探头光纤耦合到读出或PC接口,以消除电缆干扰的可能性。
对于其他频率和数据范围,ETS-Lindgren的HI-4433系列宽带射频(RF)各向同性场探头采用电池供电,专为进行RF暴露测量而设计。
MAGNETIC FIELD PROBES HI-4433-LFH Magnetic Field Probe
ETS-Lindgren’s HI-4433-LFH Magnetic Field probe measures magnetics field strength and provides X, Y and Z as well as total field values.
ETS-Lindgren’s HI-4433-LFH Magnetic Field probe measures magnetics field strength and provides X, Y and Z as well as total field values. Data from each axis can be viewed individually or summed. The field probe is fiber optically coupled to the readout or PC interface to eliminate the possibility of cable interference.
For additional frequencies and data ranges, ETS-Lindgren’s HI-4433 Series of ??Broadband Radio Frequency (RF) Isotropic Field Probes are battery-operated and designed for use in making RF exposure measurements.???
主要特点
- 各向同性磁场感应:300 kHz至30 MHz
- 自动连续归零
- 光纤技术
- 每个轴的数据可以单独查看或总结
- 适用于HI-4416读数器,HI-4413P光纤转RS232转换器或HI-4413USB光纤转USB转换器
- ProbeView LT软件可免费下载
产品规格
电气规格
频率响应:??300 kHz至30 MHz + 2.0 / -3.0 dB
动态范围:??0.3至30 A / m
电池:?20小时连续操作3.6 Vdc,1400 mA – 小时可充电NiCAD
各向同性偏差:??+/- 0.5 dB
数据采样率:?每秒1到24个样本
检测:?各向同性磁场
线性度:??+/- 0.5 dB满量程
响应时间(最小值):??86毫秒
物理规格
湿度:??5到95%相对湿度无冷凝
其他规格
- 探针和电子外壳
- 快速电池充电器
- 电介质手柄
- 2米光纤电缆
- 校准证书
- 用户手册

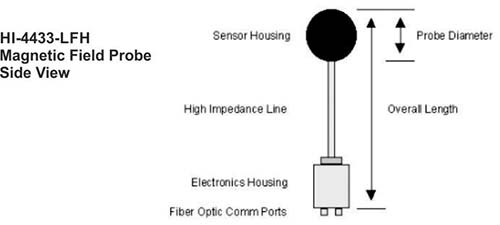

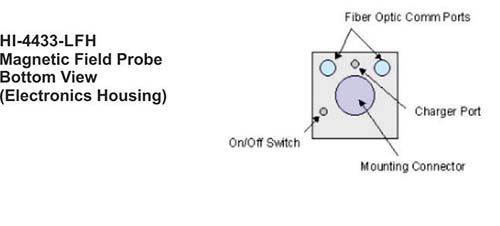

产品图表

Graphs for Uploading

Graphs for Uploading
Key Features
- Isotropic Magnetic Field Sensing: 300 kHz to?30 MHz
- Automatic Continuous Zeroing
- Fiber Optic Technology
- Data from Each Axis can be Viewed Individually or Summed
- For Use with HI-4416 Readout, HI-4413P Fiber to RS232 Converter or HI-4413USB Fiber to USB Converter
- ProbeView™ LT Software Available for Free Download
Specifications
Electrical Specifications
Frequency Response:?300 kHz to?30 MHz +2.0/-3.0 dB
Dynamic Range:?0.3?to?30 A/m
Battery: 20 Hours Continuous Operations 3.6 Vdc, 1400 mA-Hour Rechargeable NiCAD
Isotropic Deviation:?+/- 0.5 dB
Data Sample Rate: 1 to 24 Samples per Second
Detection:?Isotropic?Magnetic Field
Linearity:?+/- 0.5 dB Full Scale
Response Time (Minimum):?86 msec
Physical Specifications
Humidity:?5 to 95% Relative Humidity Non-condensing
Other Specifications
- Probe and Electronics Housing
- Fast Battery Charger
- Dielectric Handle
- 2 Meter Fiber Cable
- Calibration Certificate
- User Manual
Product Charts

Graphs for Uploading

Graphs for Uploading
