电场探头?HI-4433-GRE电场探头

ETS-Lindgren的HI-4433-GRE电场探头的频率响应为500 kHz至5 GHz，+ 2.0 / -3.0 dB。

ETS-Lindgren的HI-4433-GRE型电场探头测量电场强度，并提供X，Y和Z以及总场值。每个轴的数据可以单独查看或总结。现场探头光纤耦合到读出或PC接口，消除了电缆干扰的可能性。对于其他频率和数据范围，ETS-Lindgren的HI-4433系列射频现场探头采用电池供电，专为进行射频辐射测量而设计。

ELECTRIC FIELD PROBES HI-4433-GRE Electric Field Probe

???ETS-Lindgren’s HI-4433-GRE Electric Field Probe has a?Frequency Response of?500 kHz to 5 GHz, +2.0/-3.0 dB.

ETS-Lindgren’s Model HI-4433-GRE Electric Field Probe?measures electric field strength and provides X, Y and Z as well as total field values. Data from each axis can be viewed individually or summed. The field probe is fiber optically coupled to the readout or PC interface, eliminating?the possibility of cable interference.?For additional frequencies and data? ranges, ETS-Lindgren’s HI-4433 Series of RF field probes?are battery-operated and designed for use in making RF exposure measurements.???

主要特点

    • 各向同性电场感应：500 kHz至5 GHz
    • 自动连续归零
    • 光纤技术
    • 每个轴的数据可以单独查看或总结
    • 适用于HI-4416读数器，HI-4413P光纤转RS232转换器或HI-4413USB光纤转USB转换器
    • ProbeView LT软件可免费下载

产品规格

电气规格

频率响应：?500 kHz至5 GHz，+ 2.0 / -3.0 dB

动态范围：?3至300 V / m
电池：??20小时连续操作，3.6 Vdc，1400 mA小时可充电NiCAD
各向同性偏差：?+/- 0.5 dB
数据采样率：?每秒1到24个样本
检测：??各向同性电场
线性度：?+/- 0.5 dB满量程
响应时间（最短）：??86毫秒
光纤连接器：?标准FSMA

物理规格

工作温度：??10?到40?C（50?到104?F）

湿度：??5至95％相对湿度无冷凝

其他规格

  • 探针和电子产品
  • 快速电池充电器
  • 电介质手柄
  • 2米光纤电缆
  • 校准证书
  • 用户手册

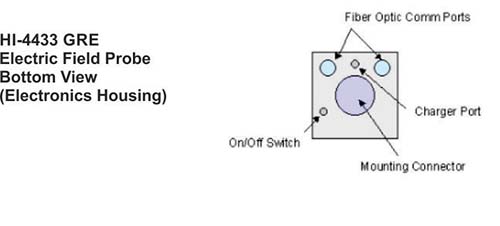

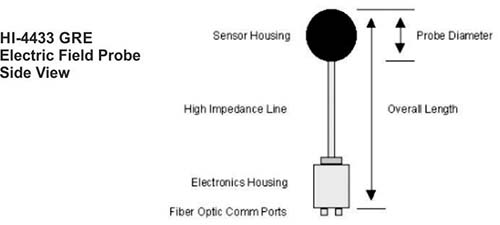

产品图表

Graphs for Uploading

Graphs for Uploading

Key Features

    • Isotropic Electric Field Sensing: 500 kHz to 5 GHz
    • Automatic Continuous Zeroing
    • Fiber Optic Technology
    • Data from Each Axis Can be Viewed Individually or Summed
    • For use with HI-4416 Readout, HI-4413P?Fiber to RS232?Converter or HI-4413USB Fiber to USB Converter
    • ProbeView? LT Software Available for Free Download

Specifications

Electrical Specifications

Frequency Response: 500 kHz to 5 GHz, +2.0/-3.0 dB

Dynamic Range: 3 to 300 V/m
Battery:?20 Hours Continuous Operations, 3.6 Vdc, 1400 mA-Hour Rechargeable NiCAD
Isotropic Deviation: +/- 0.5 dB
Data Sample Rate: 1 to 24 Samples per Second
Detection:?Isotropic Electric Field
Linearity: +/- 0.5 dB Full Scale
Response Time (Minimum):?86 msec
Fiber Optic Connectors:?Standard FSMA

Physical Specifications

Operating Temperature:?10? to 40?C (50? to 104? F)

Humidity:?5 to 95% Relative Humidity Non-condensing

Other Specifications

  • Probe and Electronics H??ousing
  • Fast Battery Charger
  • Dielectric Handle
  • 2 Meter Fiber Cable
  • Calibration Certificate
  • User Manual

Product Charts

Graphs for Uploading

Graphs for Uploading
