• 工作电压：AC 3 kV至AC 7.2 kV
  • 无接地电压AC 800 V或更低，无充电
  • 从交流电压的充电部分悬挂使用
    高亮度发光闪烁和间歇性声音无电荷
    改变挂钩形状
  • 使用的电池：AAA电池（1.5 V）R 03×2

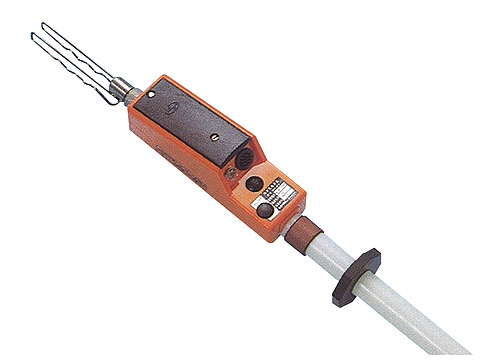

Audio signaling and light emitting type non-live-part indicator

Uncharged State is Notified by Sound and Light Indications.

? Shape of the hook makes it difficult to dislodge even in strong winds.

工作电压范围AC3kV～7.2kV
操作温度范围－10℃～＋40℃
绝缘电阻在接触尖端（金属.）和把手之间，100MΩ或更高
电池R03(1.5V)? × 2个
电介质强度Ditto, 20kVAC，1分钟
结构防水（防止水侵入）
操作状态显示灯光可以达到8000lux的亮度。光以不带电的状态发射。
声音在不带电状态下，在2m声音的距离处产生50dB或更多。
泄露电流介电强度试验：500μA以下
重量约 580克
Working voltage rangeAC3kV～7.2kV
Operating temperature range－10℃～＋40℃
Insulation resistanceBetween contact tip (metal ?tting) and grip, 100 MΩ or more
BatteryR03(1.5V)? × 2 pcs
Dielectric strengthDitto, 20 kVAC, 1 min
StructureWaterproof (Ingress of water is prevented.)
Operation
status display		LightIt shall be possible to con?rm luminance of 8,000 lux. Light is emitted in uncharged state.
Sound50 dB or more at a distance of 2 m????? Sound is generated in uncharged state.
Leakage currentAt dielectric strength test: 500 μA or less
WeightAbout 580g
