FSI 150
绝缘剥线钳
应用范围：
6 -?150mm?
绝缘厚度：
剥离衬垫上的剥离
建议应用：
ABC电缆（架空，绞合，绝缘）
FSI 150
Insulated Wire Stripper
Application range:
6 – 150 mm?
Insulation thickness:
Depands on stripping insert
Suggested application:
ABC cables (overhead, twisted, insulated)
技术特征
?剥线长度可在20至80mm之间调节
?带卡口连接的绝缘手柄
?手柄内置的剥离深度调节
?在内置设备上标记刻度以显示预设长度
?通过剥离头上的箭头指示切割方向
?可互换，硬化的刀片
?设备适用于高达1000V AC和1500V DC的带电部件
?专为极低温使用而设计，温度低至-40°C
| 剥离刀片 | 订单号。 |
|---|---|
| 剥离插入6mm? | 1717 006 |
| 剥离刀片10mm? | 1717 010 |
| 剥离插入16mm? | 1717 016 |
| 剥离插入25mm? | 1717 025 |
| 剥离插入35mm? | 1717 035 |
| 剥离插件50mm? | 1717 050 |
| 剥离刀片54mm? | 1717 054 |
| 剥离插件70mm? | 1717 070 |
| 剥离插件95mm? | 1717 095 |
| 剥离插件150mm? | 1717 150 |
其他插入请求
通过预先调整的插入物轻松处理
适合在带电部件上工作1000 v
旨在在有限的空间内工作
| 描述 | 订单号。 | 外形尺寸 | 重量 |
|---|---|---|---|
| 套装：FSI 150 | 1717 0 | 235 x 200 x 55毫米 | 950克 |
| 备用刀片 | 1717 9 |
设备
- 绝缘手柄
- 剥线刀片：16mm?，25mm?，35mm?，50mm?，54.6mm?，70mm?
- 3备用刀片
- 内六角扳手2,5毫米
- 刚性塑料外壳
Technical Characteristics
? Stripping length adjustable from 20 to 80mm

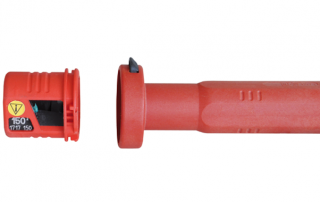

? Insulated handle with bayonet connection

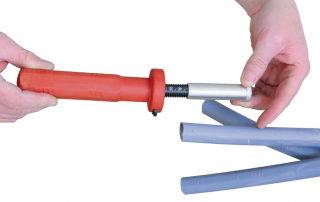

? Stripping depth adjustment built inside the handle
? Scale marked on the built-in device to display the preset length

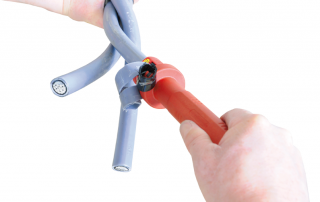

? Indication of cutting direction by arrow on the peeling head
? Interchangeable, hardened blade
? Device suitable to work ?on live parts up to 1000V AC and 1500V DC
? Designed for very low temperature uses, down to -40°C
| Stripping inserts | Order No. |
|---|---|
| Stripping?insert 6 mm? | 1717 006 |
| Stripping insert 10 mm? | 1717 010 |
| Stripping?insert 16mm? | 1717 016 |
| Stripping?insert 25mm? | 1717 025 |
| Stripping?insert 35mm? | 1717 035 |
| Stripping?insert 50mm? | 1717 050 |
| Stripping insert 54,6mm? | 1717 054 |
| Stripping?insert 70mm? | 1717 070 |
| Stripping?insert 95 mm? | 1717 095 |
| Stripping?insert 150 mm? | 1717 150 |
Other inserts on request
easy handling through preadjusted inserts
suitable to work on live parts 1000 v
designed to work in limited space
| Description | Order No. | Dimensions | Weight |
|---|---|---|---|
| Set: FSI 150 | 1717 0 | 235?x?200 x?55 mm | 950 g |
| Spare blade | 1717 9 |

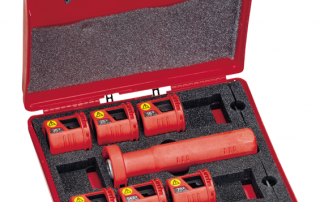

SET Equipment
- Insulated handle
- Stripping inserts: 16mm?, 25mm?, 35mm?, 50mm?, 54.6mm?, 70mm?
- 3 Spare blades
- Allen wrench 2,5mm
- Rigid plastic case
