绝缘电阻测试仪

ET600

  • 电压测试仪可在125V，250V，500V和1000V DC下测试高达4000MΩ的绝缘电阻
  • 带有测试和锁定按钮的兆欧表，用于简单的绝缘测试
  • 警告警报和用于检测电压的高压图标
  • 测量高达1000V的AC / DC，低电阻和连续性
  • 自动测距真均方根（TRMS）技术可提高准确性
  • 带条形图的背光显示，自动关机，高压，至大/至小和保持图标
  • 电池电量低指示器，可轻松更换电池和保险丝
  • 内置支架和可选的磁性吊架，免提操作
  • 测试符合EN61557-1，-2，-4
  • CAT IV 600V和CAT III 1000V安全等级
  • 包括直角测试线和重型鳄鱼夹测试线

Insulation Resistance Tester

ET600

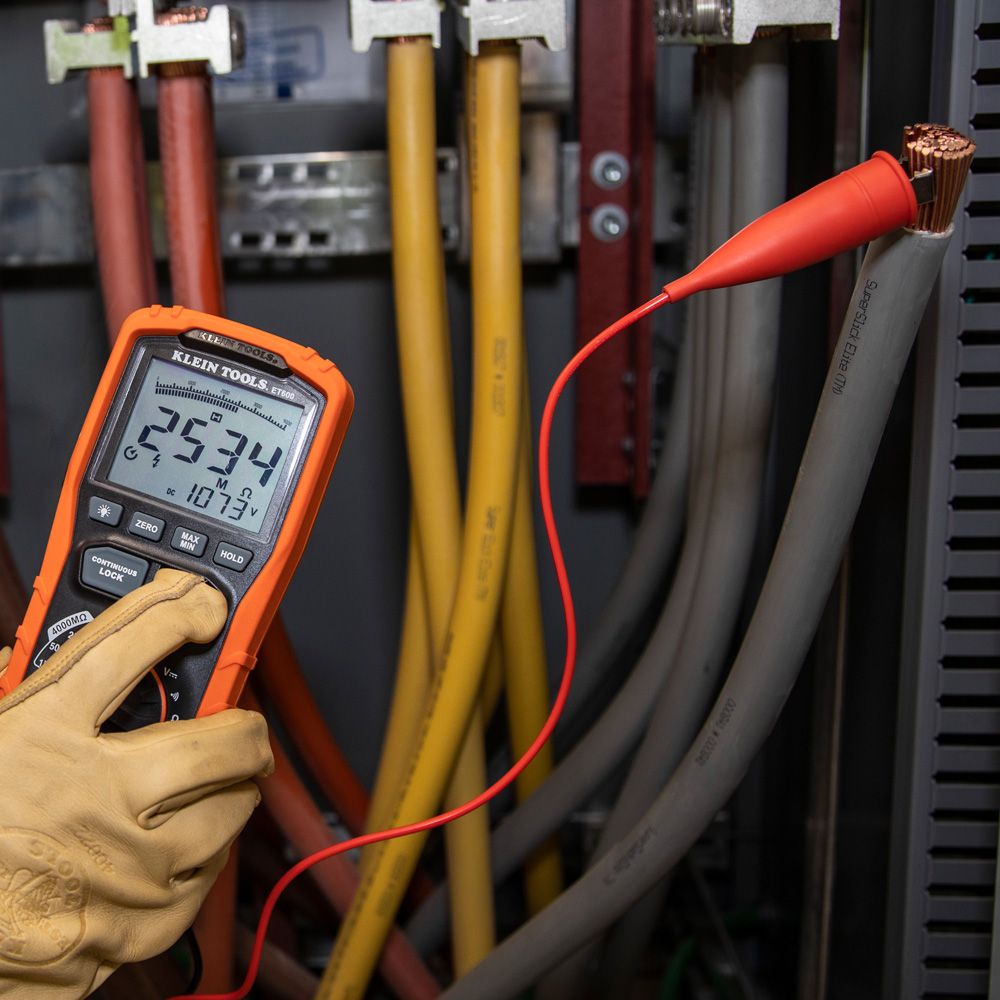

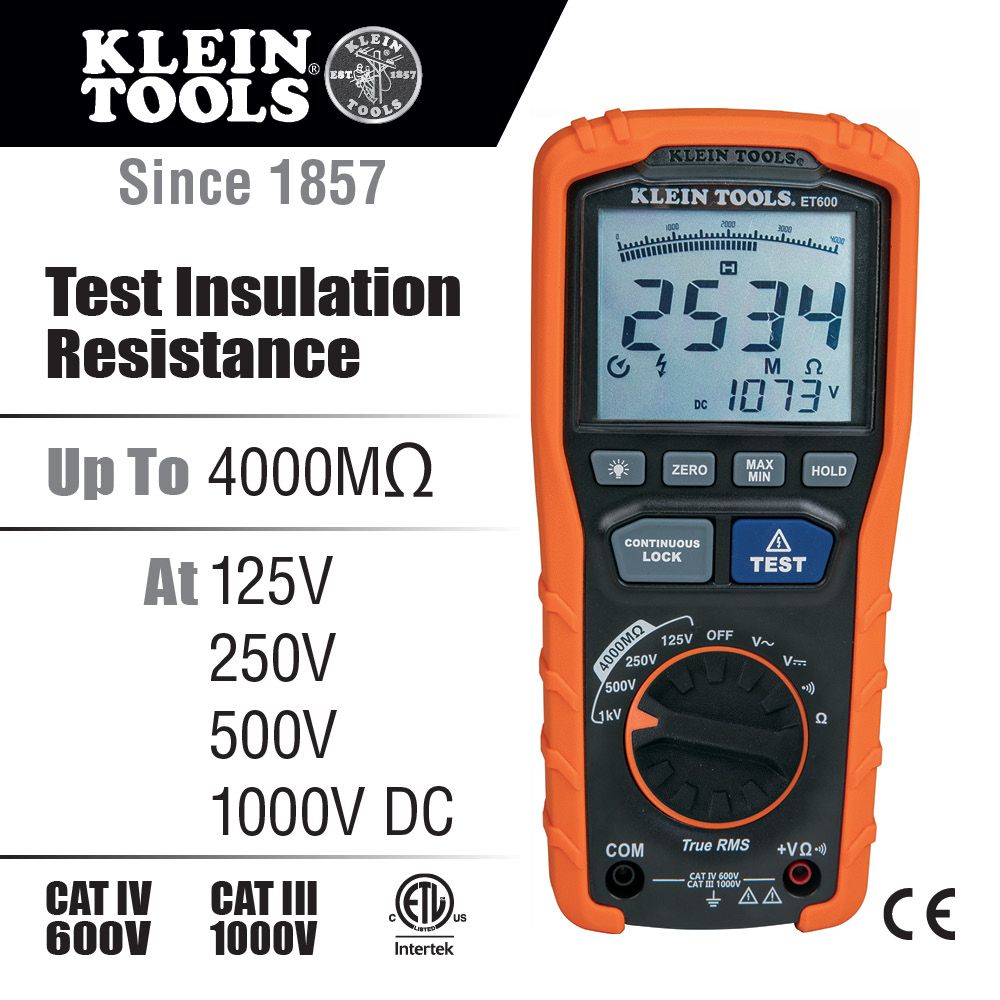

  • Voltage Tester tests insulation resistance up to 4000M? at 125V, 250V, 500V, and 1000V DC
  • Megohmmeter with test and lock buttons for simple insulation testing
  • Warning alarm and high voltage icon for detection of voltage

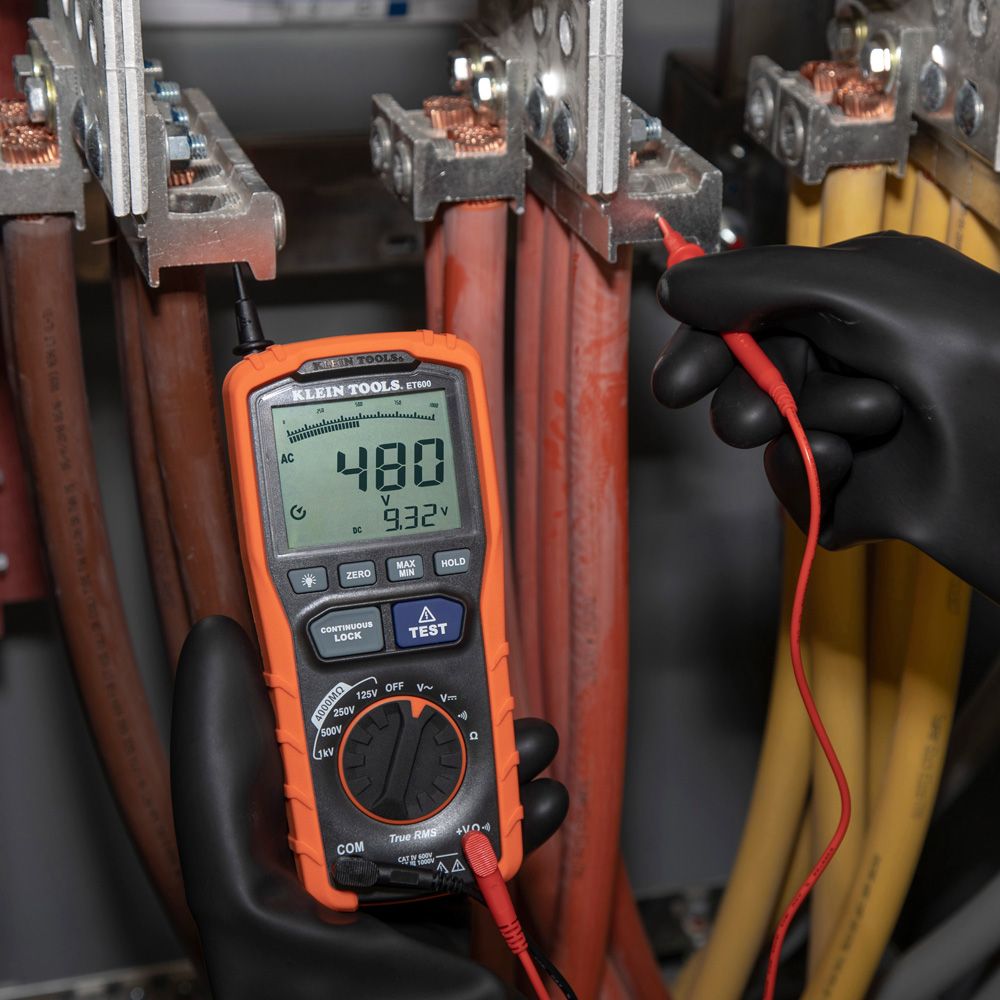

  • Measures up to 1000V AC/DC, low resistance, and continuity
  • Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy

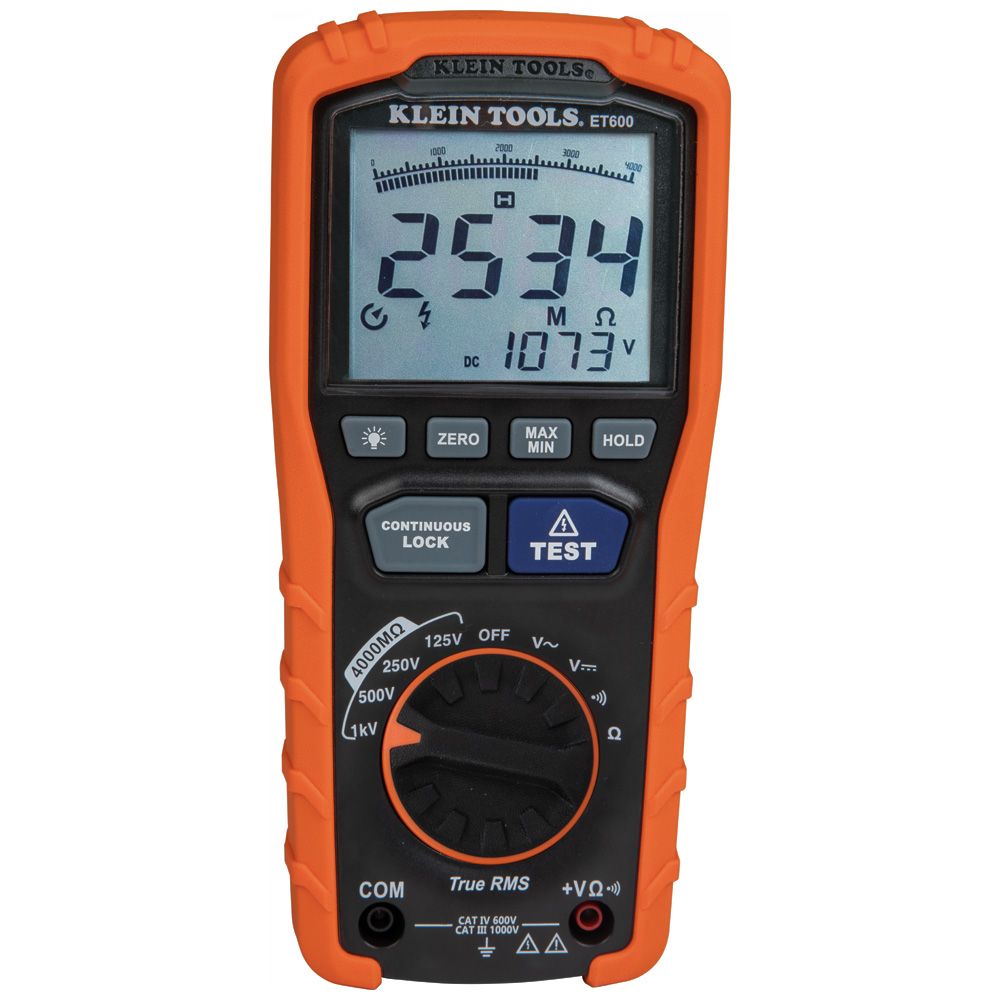

  • Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons

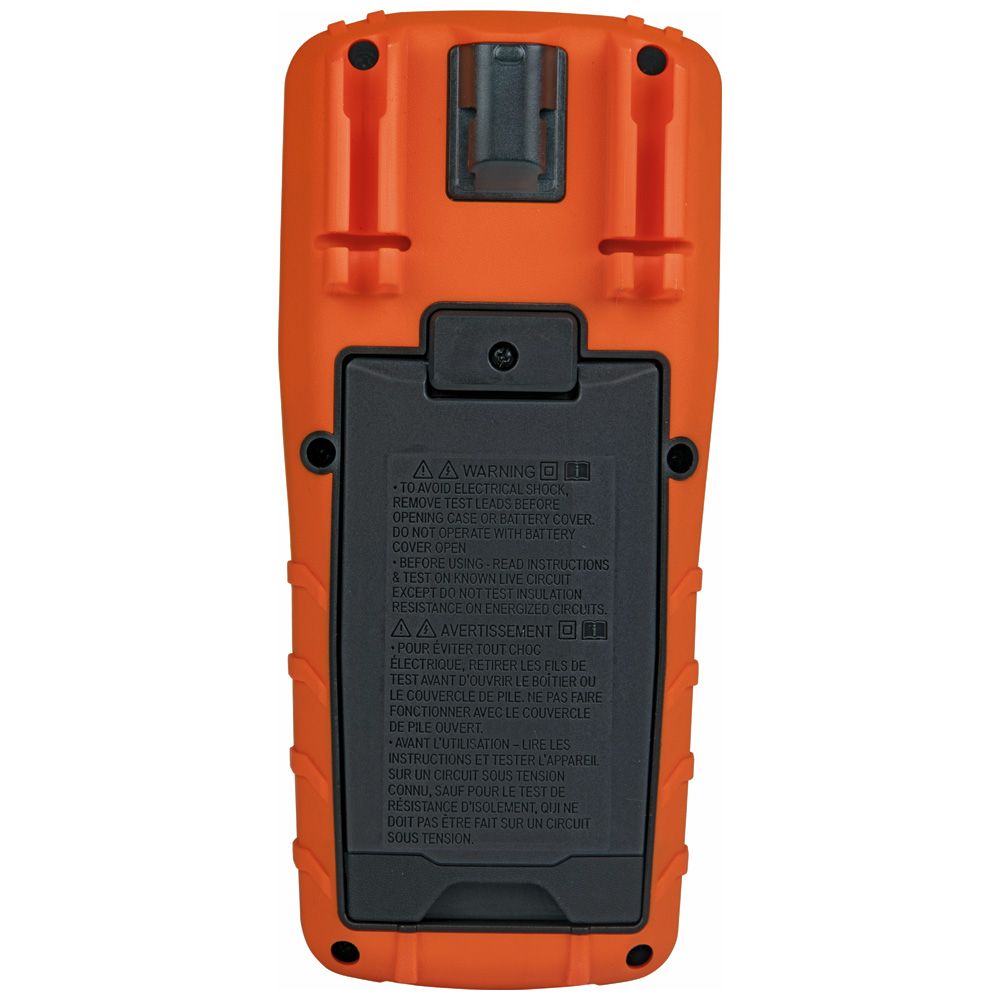

  • Low battery indicator with easily replaceable battery and fuse

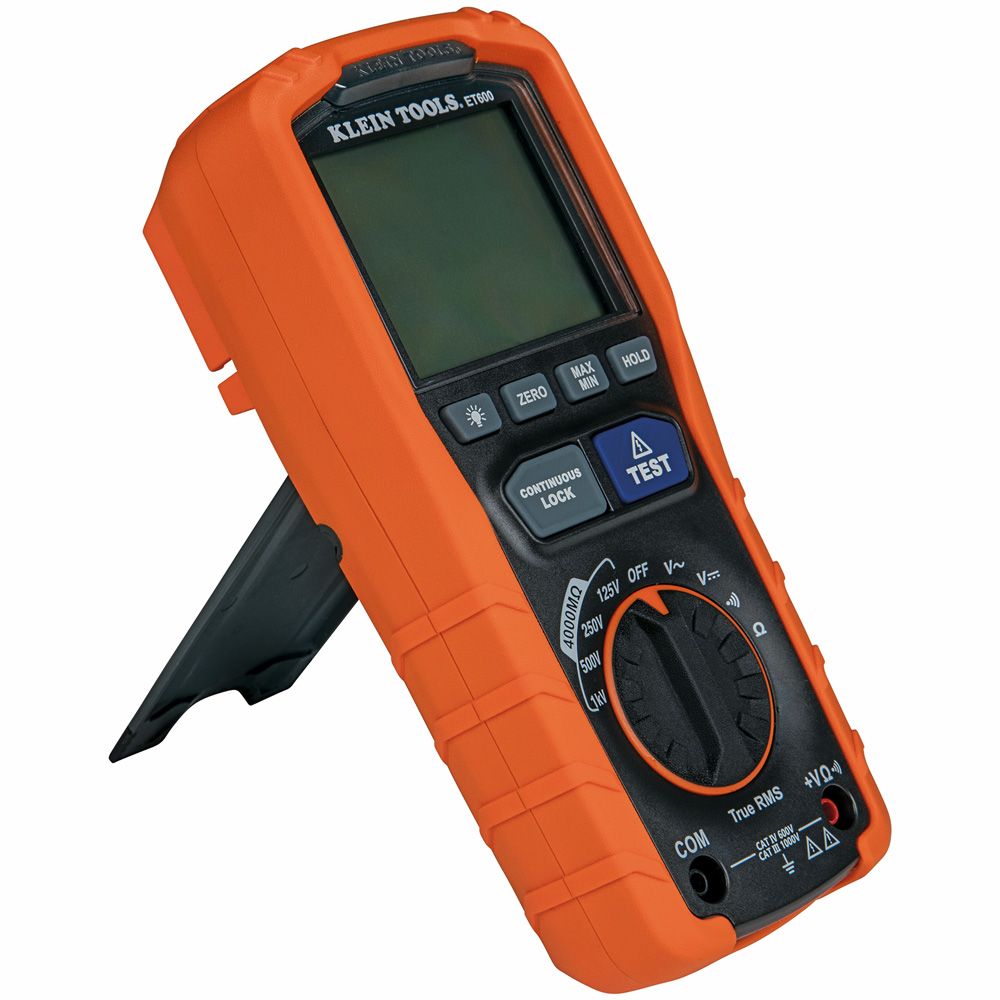

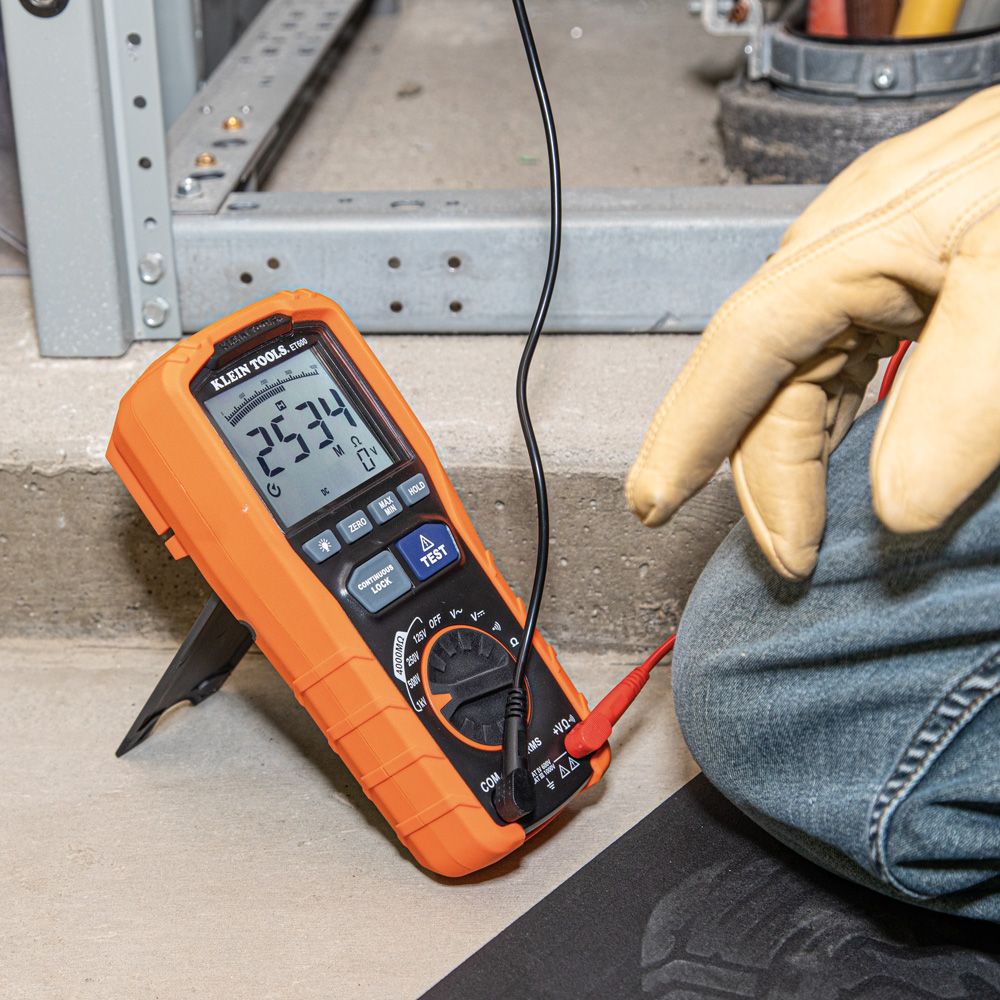

  • Built-in stand and optional magnetic hanger for hands free operation
  • Test verification of conformity to EN61557-1,-2,-4
  • CAT IV 600V and CAT III 1000V safety rating

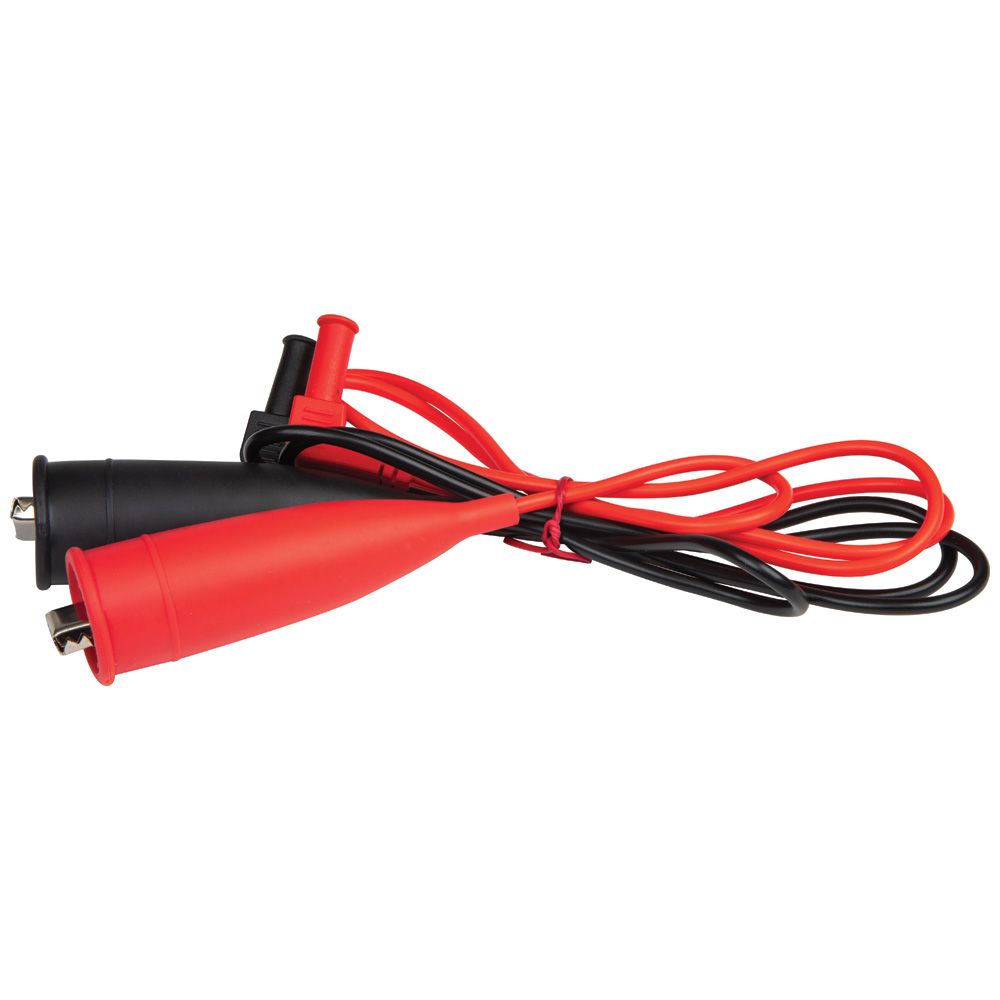

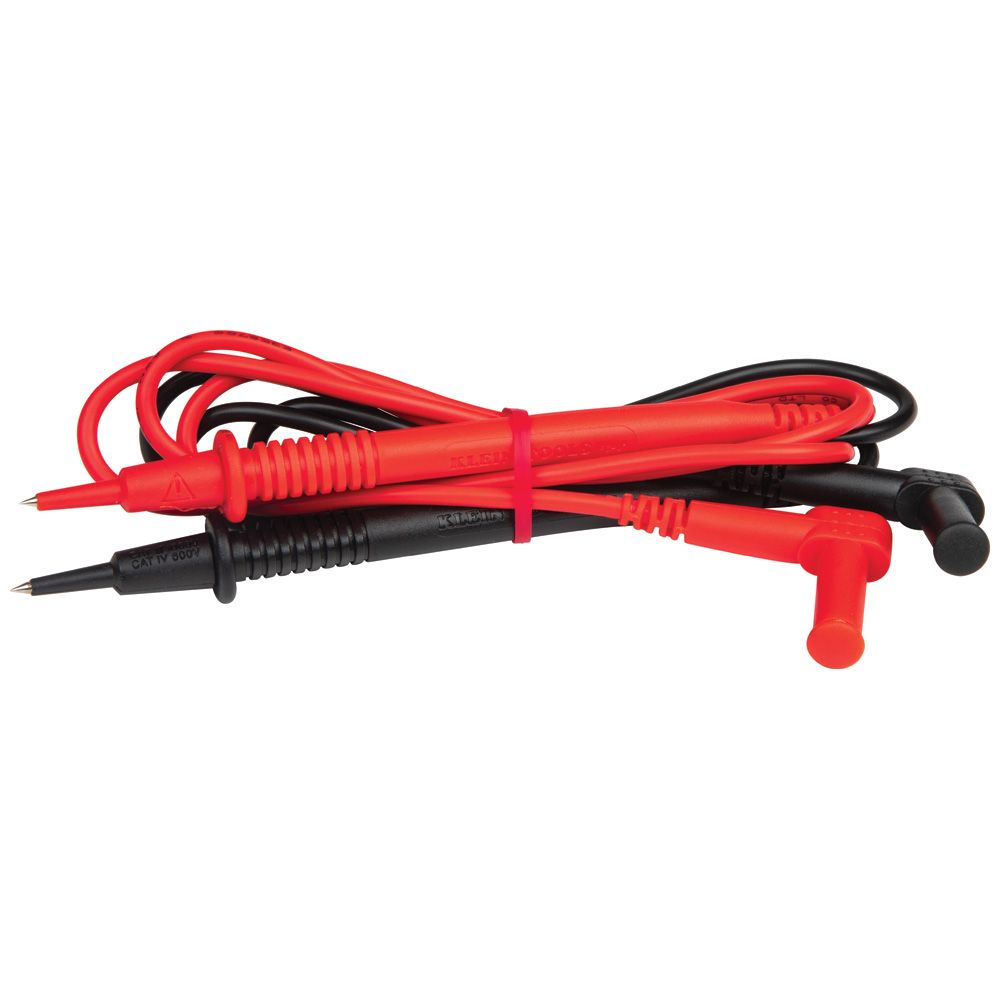

  • Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads

ET600是一款多功能兆欧表，能够产生125V，250V，500V和1000V测试电压，可测量高达4000MΩ的绝缘电阻。还可以使用自动量程True RMS技术测试高达1000V的AC / DC电压。便捷的锁定功能和内置支架可实现免提操作。双功能背光显示屏监控过程。

技术指标
类型：
绝缘电阻测试仪
应用：
电气线路和电气设备的安装，故障排除和预防性维护，测量1000V AC / DC，电阻和连续性
特殊功能：
锁定按钮，用于绝缘电阻测试
材料：
ABS，聚碳酸酯，电气元件
电池：
6 x AA
显示：
4000点液晶
颜色：
橙色/黑色
功能：
绝缘电阻，电压AC / DC，低电阻和连续性
电压：
125V，250V，500V和1000V DC;?1000V交流/直流
欧姆（电阻）：
4000Ω
标准：
CAT IV 600V / CAT III 1000V，EN61557-1，EN61557-2，EN61557-4
包括：
CAT III / CAT IV安全额定测试线，重型鳄鱼夹测试线，电池，手提箱和使用手册
总长度：
7.93英寸（20.2厘米）
总高度：
2.32英寸（5.9厘米）
总宽度：
3.59英寸（9.1厘米）
重量：
1.4磅（0.6公斤）
UPC：
092644692420
警告事项
  • 在操作测试人员之前，请阅读，理解并遵循所有警告和说明。
  • 请勿尝试测量带电电路的绝缘电阻，电阻或连续性。
  • 每次使用前，请通过测量已知电压来验证电表的运行。
  • 在雷雨天气或潮湿天气中，请勿使用仪表。
  • 仅使用CAT III / CAT IV安全额定测试线。如果测试线似乎损坏，请使用仪表。

The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000M?. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.

Specifications
Type:
Insulation Resistance Tester
Application:
Installation, Troubleshooting, and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance, and Continuity
Special Features:
Lock Button for Insulation Resistance Testing
Material:
ABS, Polycarbonate, Electrical Components
Batteries:
6 x AA
Display:
4000 Count LCD
Color:
Orange/Black
Functions:
Insulation Resistance, Voltage AC/DC, Low Resistance, and Continuity
Voltage:
125V, 250V, 500V, and 1000V DC; 1000V AC/DC
Ohms (Resistance):
4000?
Standard:
CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4
Included:
CAT III/CAT IV Safety Rated Test Leads, Heavy-duty Alligator Clip Test Leads, Batteries, Carrying Case, and Instruction Manual
Overall Length:
7.93” (20.2 cm)
Overall Height:
2.32” (5.9 cm)
Overall Width:
3.59” (9.1 cm)
Weight:
1.4 lb (0.6 kg)
UPC:
092644692420
WARNINGS
  • Read, understand, and follow all warnings and instructions before operating testers.
  • Do not attempt to measure insulation resistance, resistance, or continuity on live circuits.
  • Before each use verify meter operation by measuring known voltage.
  • Do not use meter during electrical storms or in wet weather.
  • Use only CAT III/CAT IV safety rated test leads. Do use the meter if test leads appear to be damaged.
