带GFCI插座测试仪的数字断路器查找器

ET310

  • 快速准确地将正确的断路器定位在与电源插座或固定装置所连接的电路相对应的面板中
  • 测试仪由两部分组成：一个发射器，连接到电源插座或夹具和一个接收器，用于扫描面板以找到正确的断路器
  • 当找到正确的断路器时，接收器提供清晰的视觉和听觉指示
  • 可在90-120V交流电路上运行
  • 变送器包含一个GFCI插座测试仪，用于检查电源插座的接线状况并测试GFCI设备
  • 发射器停靠在接收器中，以便在不使用测试仪时作为单个项目方便地存储
  • 变送器采用三针插头，用于连接北美式接地电源插座。
  • 可使用另售的可选配件将变送器连接到其他电气设备（目录号69411）
  • 接收器在大约三分钟不使用后自动关机以延长电池寿命
  • 当连接到电源插座或固定装置时，变送器由电路供电
  • 低电量指示灯
  • 易于使用的电池盒。仅在接收器中使用一节9V电池;?变送器不需要电池
  • 可承受6.6英尺（2米）的跌落
  • CAT II 120V安全等级
  • 测量类别II适用于测试和测量直接连接到低压电源装置的使用点（插座和类似点）的电路
  • 包括发射器，接收器，用户手册和9V电池（用于接收器）

Digital Circuit Breaker Finder with GFCI Outlet Tester

ET310

  • Quickly and accurately locate the correct circuit breaker in a panel corresponding to the circuit to which an electrical outlet or fixture is connected

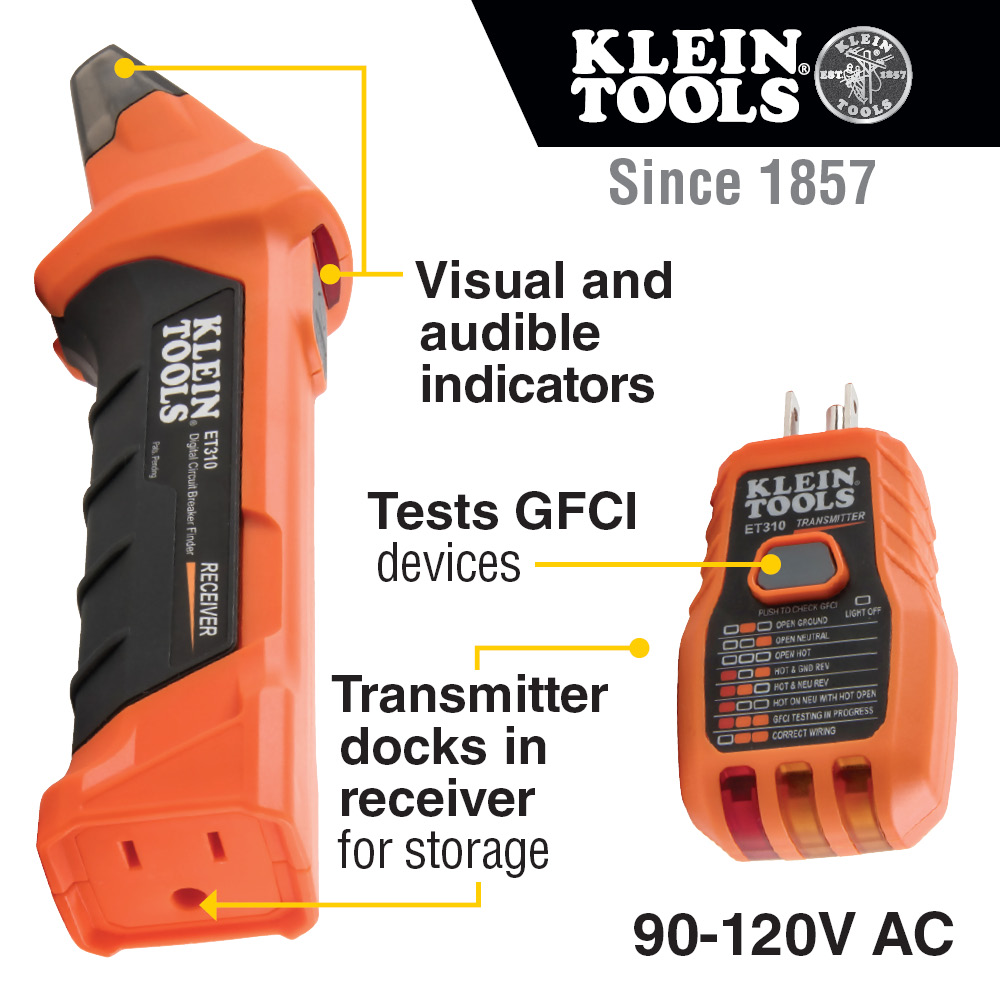

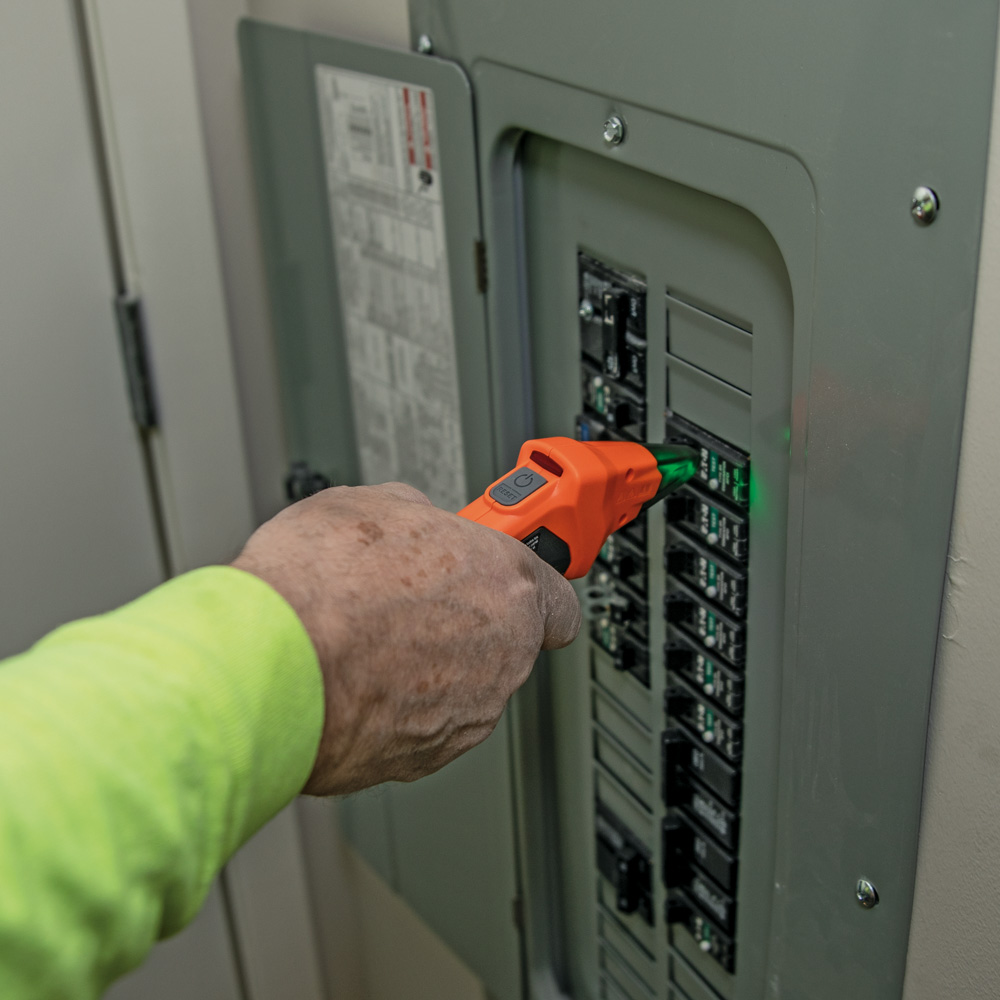

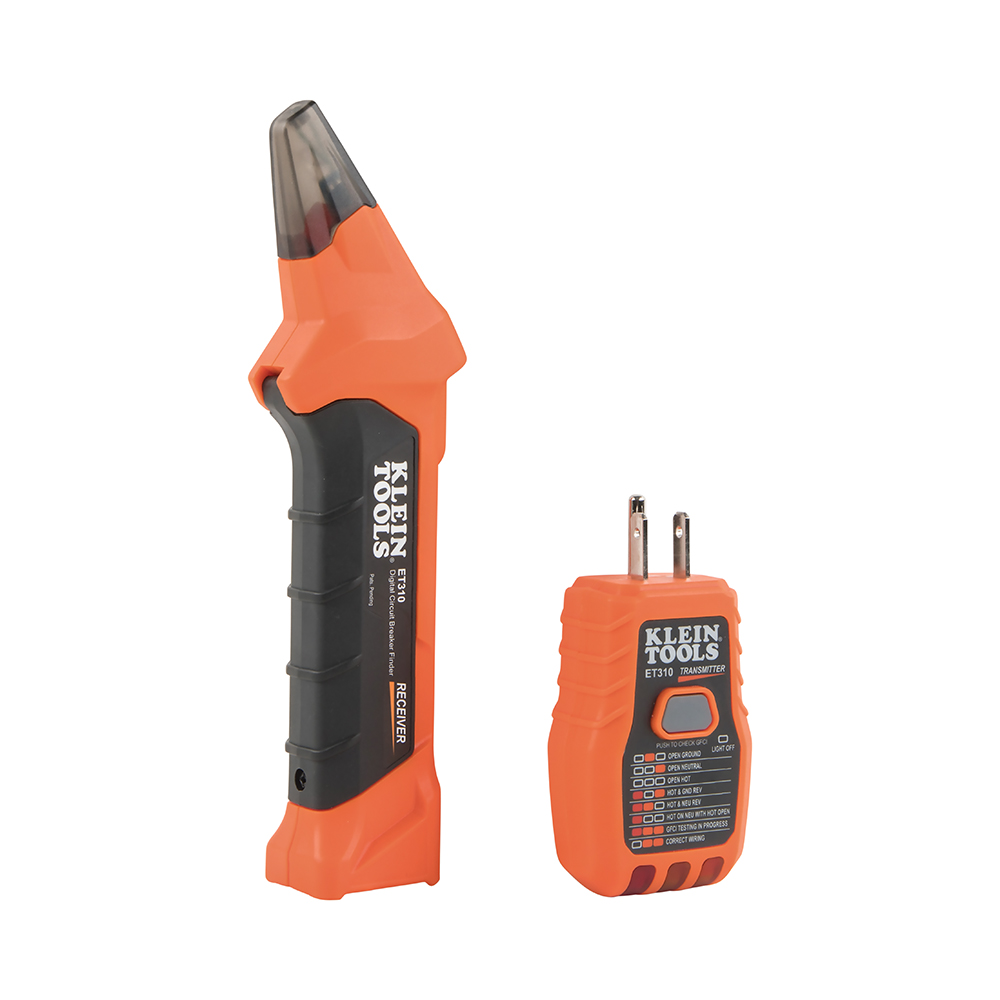

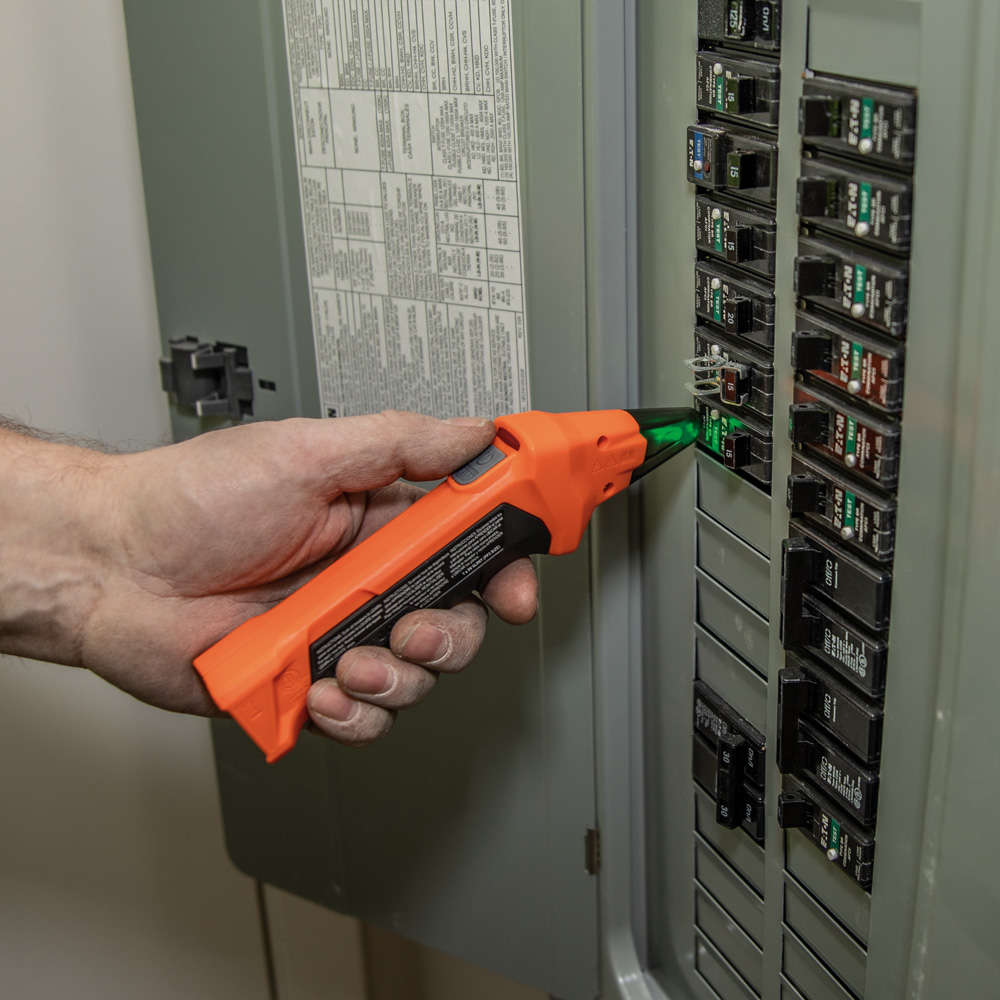

  • Tester consists of two parts: a Transmitter, connected to the electrical outlet or fixture and a Receiver, used to scan the panel to locate the correct breaker
  • Receiver delivers clear visual and audible indications when the correct breaker has been located
  • Operates on 90-120V AC circuits
  • Transmitter incorporates a GFCI outlet tester to inspect the wiring condition at the electrical outlet and test GFCI devices

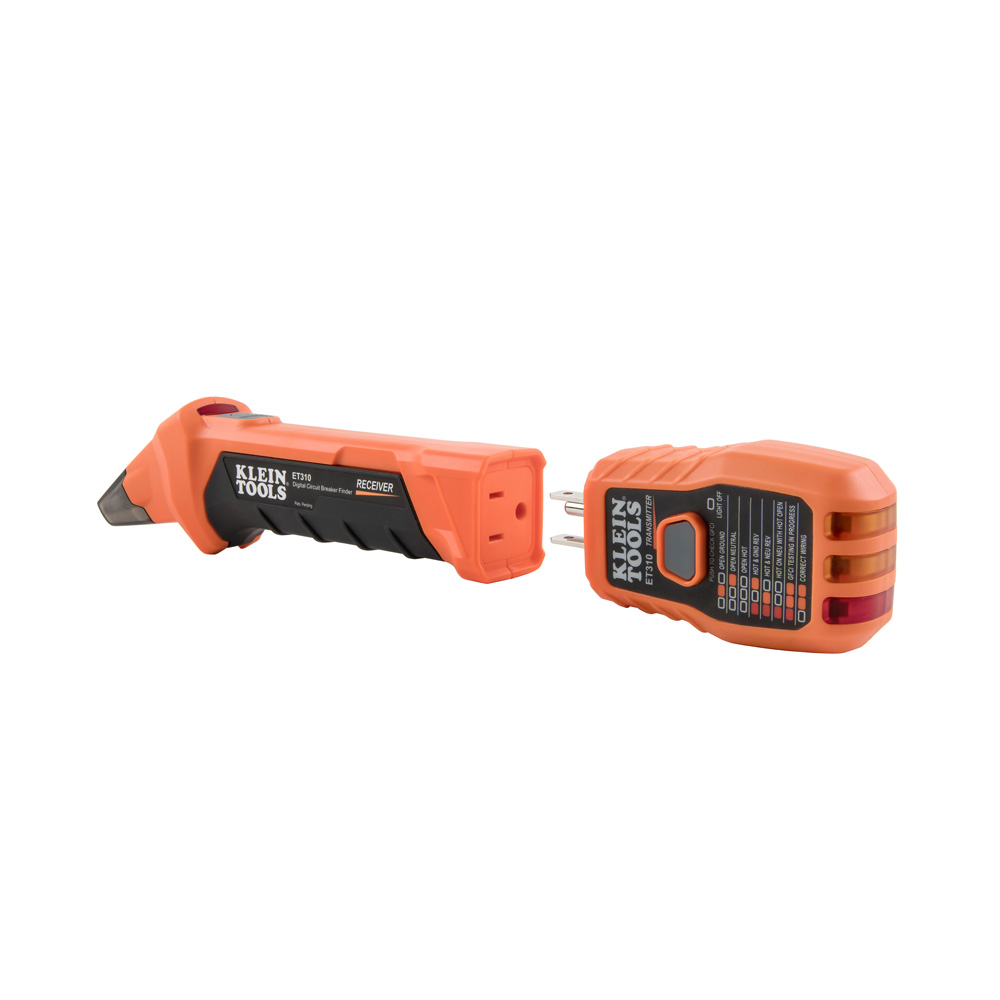

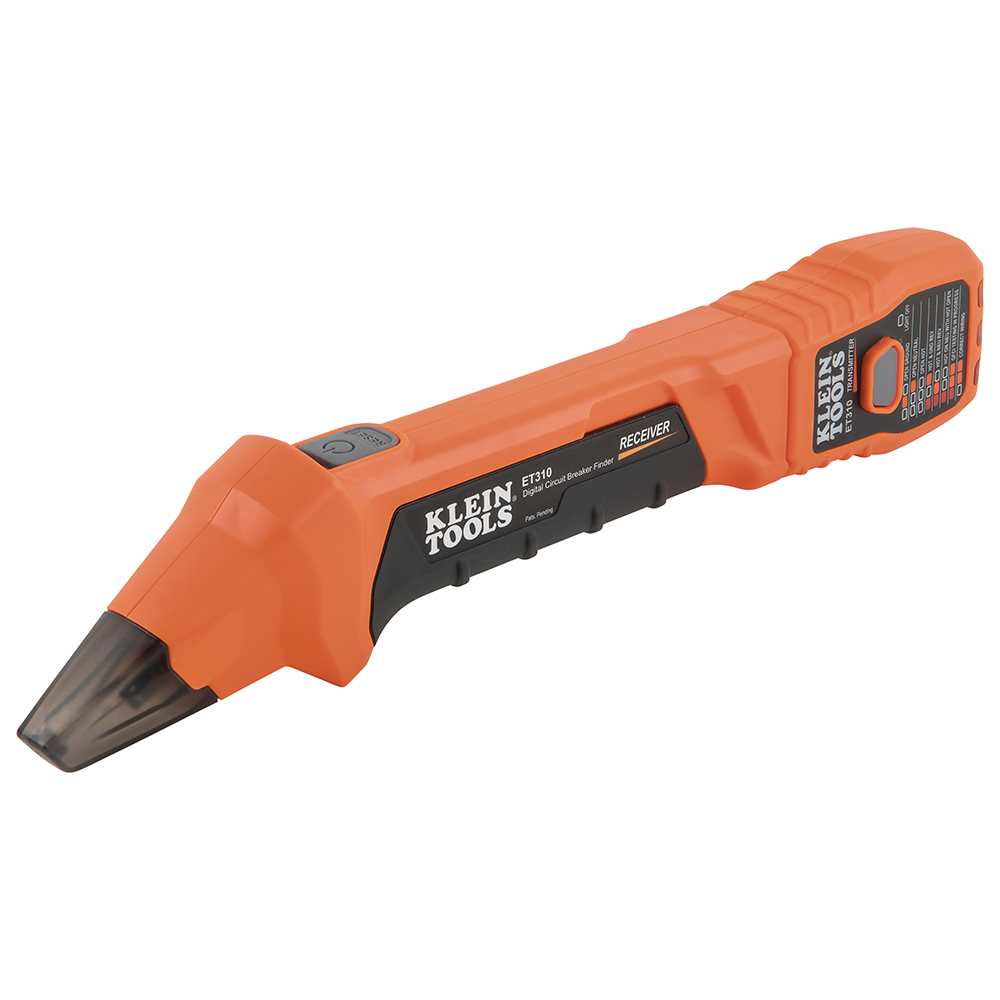

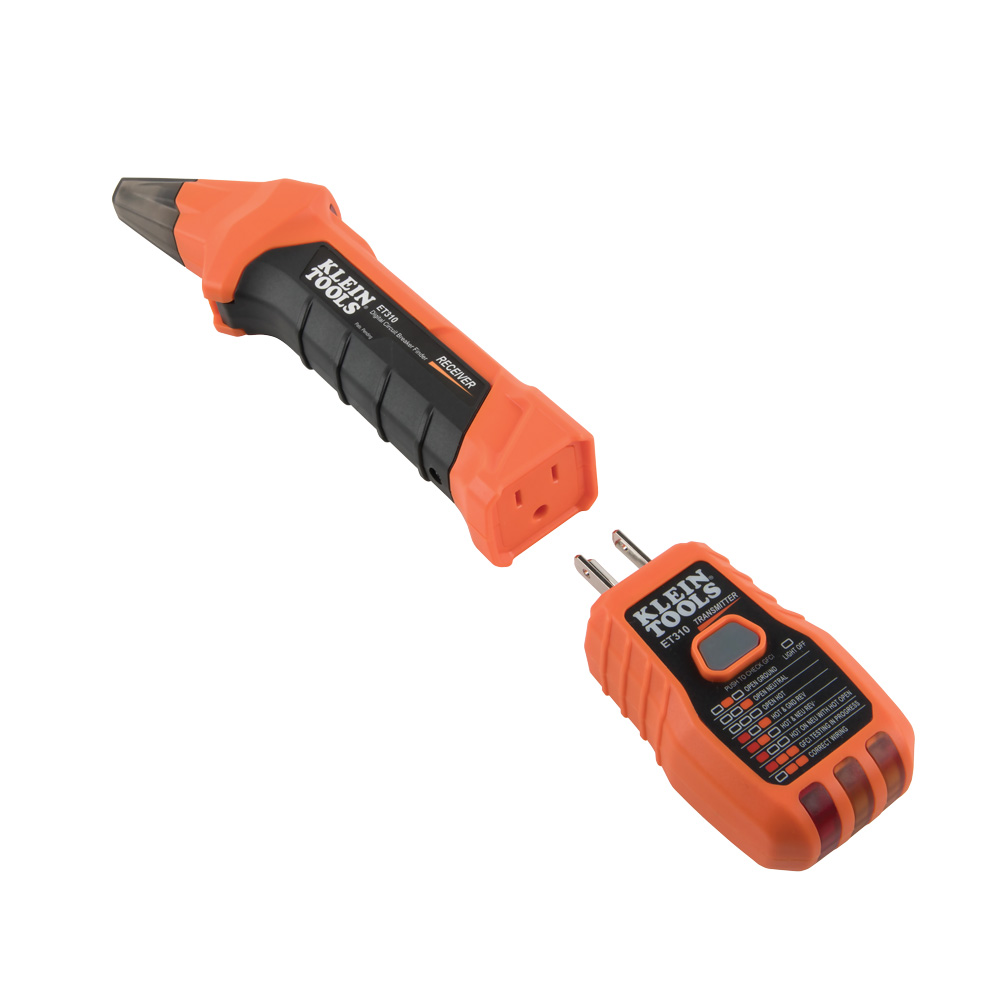

  • Transmitter docks in the Receiver for convenient storage as a single item when tester is not is use

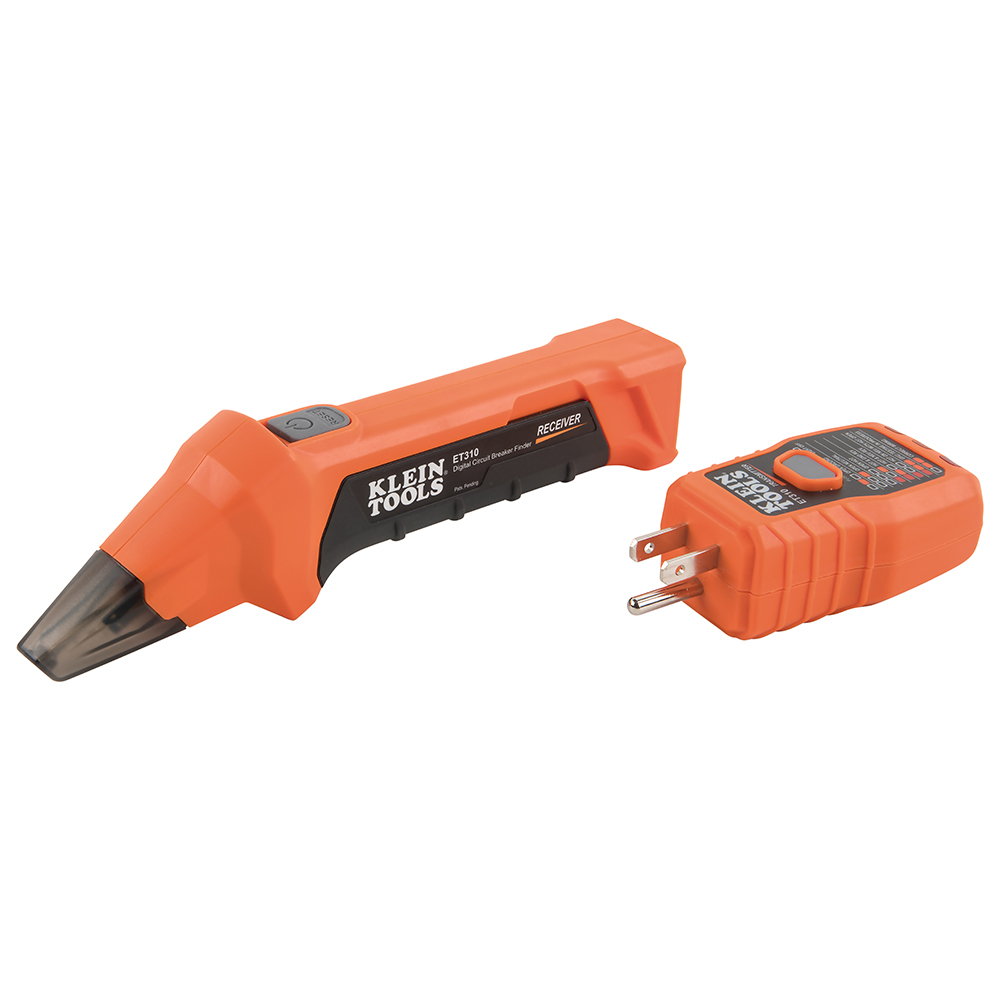

  • Transmitter incorporates a three-pin plug for connecting to North-American-style grounded electrical outlets.
  • The transmitter may be connected to other electrical fixtures using optional accessories which are sold separately (Cat. No. 69411)
  • Receiver powers off automatically after approximately three minutes of non-use to conserve battery life

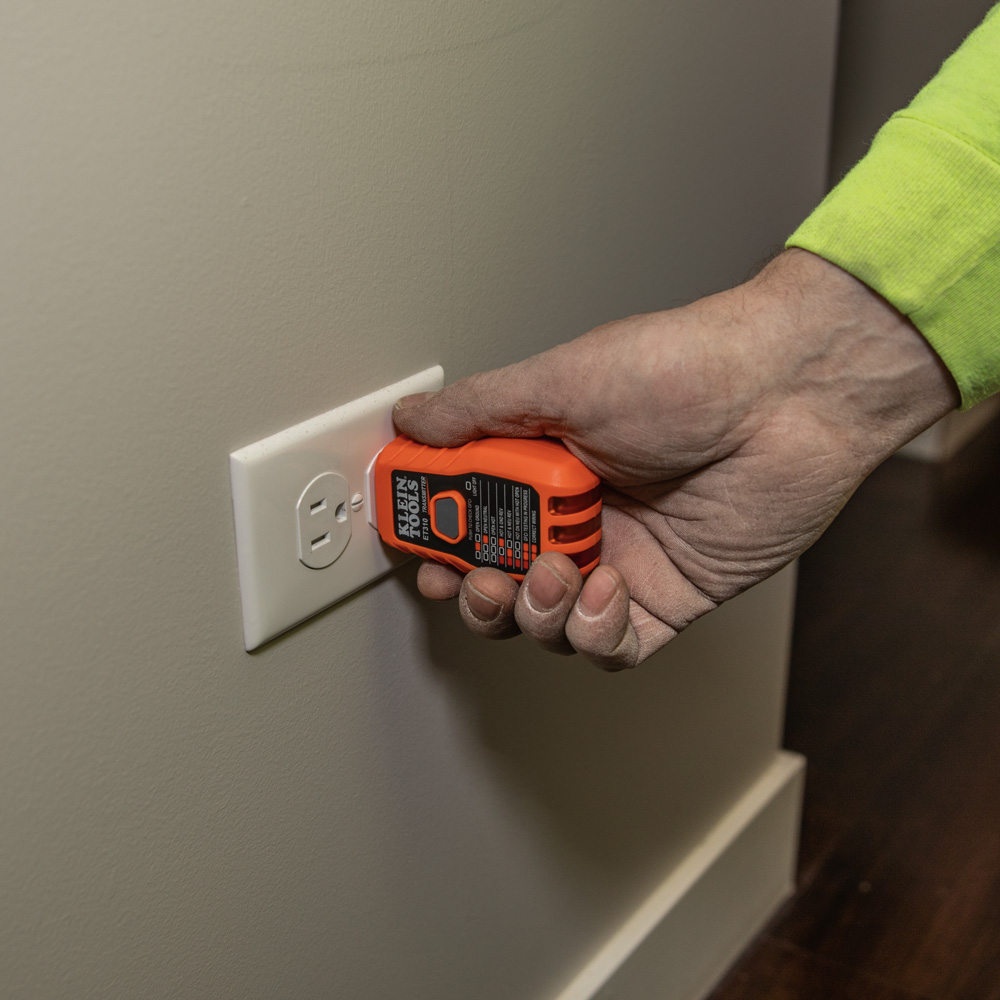

  • Transmitter is powered by the circuit when connected to the electrical outlet or fixture
  • Low battery indicator
  • Easily accessible battery compartment. Uses one 9V battery in receiver only; Transmitter does not require a battery
  • Built to withstand a 6.6-Foot (2 m) drop
  • CAT II 120V safety rating
  • Measurement Category II is applicable to test and measuring circuits connected directly to utilization points (socket outlets and similar points) of the low-voltage MAINS installation
  • Includes Transmitter, Receiver, user manual, and 9V battery (for Receiver)

Klein Tools ET310是一款数字式断路器探测器，用于在连接电源插座或固定装置的面板中找到正确的断路器。变送器连接到电路中的电源插座或固定装置，而接收器用于扫描电路板中的断路器。变送器还配有GFCI插座测试仪。

产品规格
类型：
电子测试仪
应用：
在面板中找到断路器，测试GFCI设备
特殊功能：
接收器发射器中的发射器对接器集成了接收器中的GFCI插座测试器
总长度：
10.96英寸（278毫米）（发射器停靠在接收器中）
总体高度：
2.16”（55mm）（发射器停靠在接收器中）
总宽度：
1.39”（35mm）（发射器停靠在接收器中）
材料：
PC和PC-ABS外壳和电子元件
标准：
CATII 120V
包括：
包括接收器的发射器，接收器，用户手册和9V电池
重量：
7.2盎司?（204克）
UPC：
092644692406
警告
  • 在操作测试人员之前，请阅读，理解并遵循所有警告和说明。
  • 在每次使用之前，通过测试已知的带电和正确接线的插座和电路来验证测试仪的操作。
  • 如果测试仪出现任何损坏，请勿使用。务必咨询合格的电工以解决接线问题。
  • 测试仪仅供室内使用。该测试仪设计用于120V AC电气系统。请勿连接到更高电压的电源。
  • 如果使用附件连接裸线，请确保在检查，应用或拆除变送器之前电路未通电。
  • 在通电的裸线周围要特别小心，特别是在打开的断路器面板内或周围工作时。

The Klein Tools ET310 is a digital circuit breaker finder used to locate the correct circuit breaker in a panel to which an electrical outlet or fixture is connected. The Transmitter is connected to the electrical outlet or fixture in the circuit while the receiver is used to scan the breakers in the circuit panel. The Transmitter also features a GFCI outlet tester.

Specifications
Type:
Electronic Tester
Application:
Locate Circuit Breakers in Panel, Test GFCI Devices
Special Features:
Transmitter docks in Receiver Transmitter integrated GFCI outlet tester in receiver
Overall Length:
10.96” (278mm) (With Transmitter docked in Receiver)
Overall Height:
2.16” (55mm) (With Transmitter docked in Receiver)
Overall Width:
1.39” (35mm) (With Transmitter docked in Receiver)
Material:
PC & PC-ABS housing and electronic components
Standard:
CATII 120V
Included:
Includes Transmitter, Receiver, user manual, and 9V battery for Receiver
Weight:
7.2 oz. (204 g)
UPC:
092644692406
WARNINGS
  • Read, understand, and follow all warnings and instructions before operating testers.
  • Before each use, verify tester operation by testing on a known live and correctly wired receptacle and circuit.
  • DO NOT use if the tester appears damaged in any way. Always consult a qualified electrician to resolve wiring problems.
  • Tester is intended for indoor use only. The tester is designed for use with 120V AC electrical systems. DO NOT connect to higher voltage electrical supplies.
  • If using accessories to connect to bare wires ensure that the circuit is not energized before inspecting, applying, or removing the transmitter.
  • Exercise extreme caution around energized, bare wires, especially when working in or around an open breaker panel.
