EFP203 – 高性能与很薄设计相结合
稳定的输出，可靠耐用 – 压制工具EFP203符合这一标准Novopress自1972年以来一直坚持的标准。
新型基本生产线压制工具EFP203可以使用金属管（取决于压装系统，最高可达108 mm）处理最大54 mm的压接头，使用塑料和多层管可处理高达110 mm的压接头。
由于重量减轻25％*和更纤细的设计，新款EFP203比其前代产品更加便于使用，即使在头顶环境下也能确保安全操作。由于其自动返回和短按压循环，压制工具是现代压制应用的良好经济替代品。
好处
- 重量减轻25％*
- 缩短6厘米*
- 坚固的设计
- 自动返回
- 易于处理
- 可旋转的头
（*与其前身EFP202相比）?

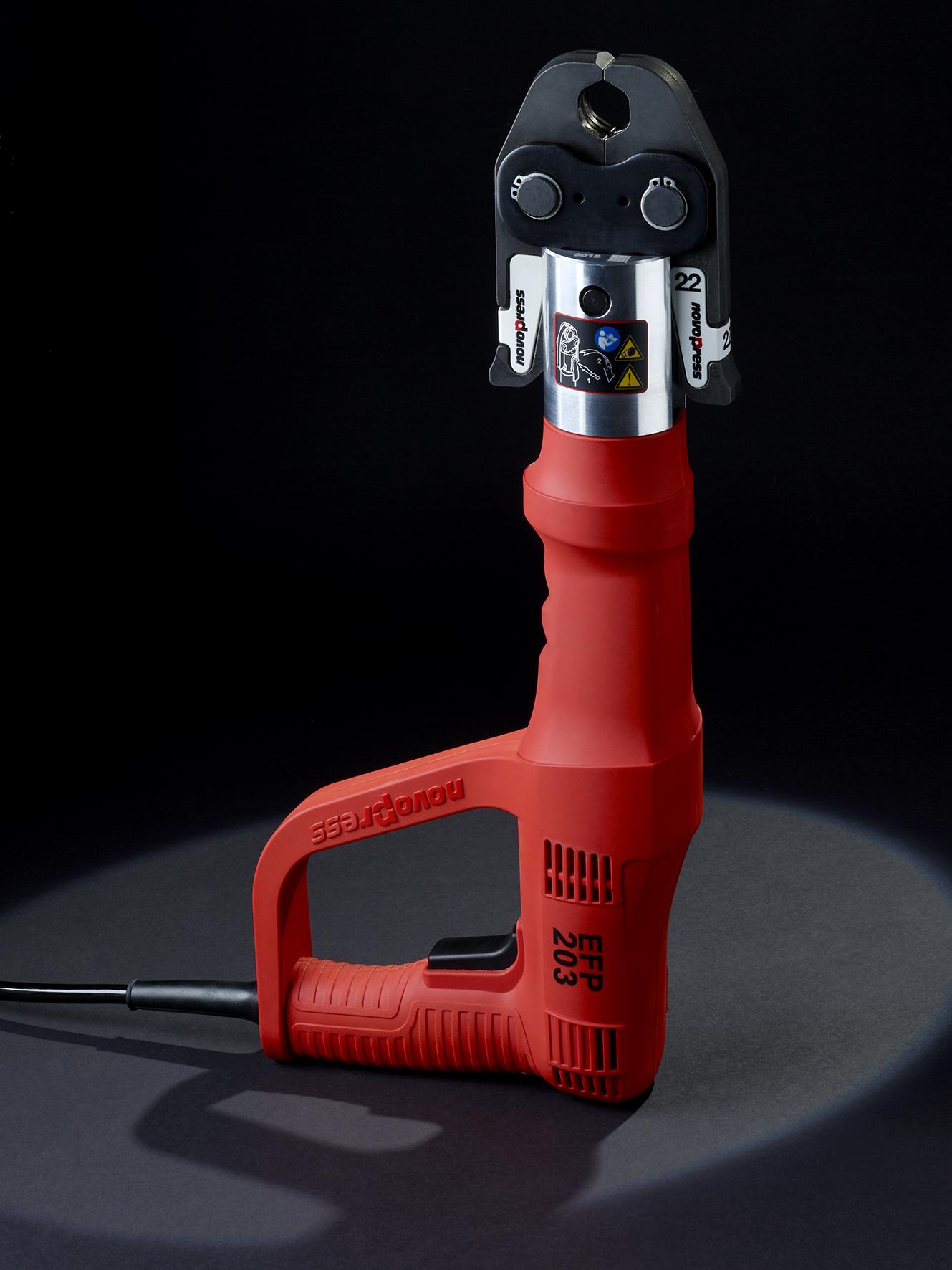

EFP203 – HIGH PERFORMANCE COMBINED WITH SLIM DESIGN
Steady output, reliable and durable – the pressing tool EFP203 meets each of this criteria Novopress has always stood for since 1972.
The new Basic-line pressing tool EFP203 can handle press joints up to 54 mm with metal pipes (depending on the pressfitting system even up to 108 mm) and up to 110 mm with plastic and multilayer pipes.
Thanks to 25 % savings in weight* and a more slender design, the new EFP203 is even handier than its predecessor and ensures safe operation even in overhead situations. The pressing tool is a good economic alternative for modern pressing applications thanks to its automatic return and the short pressing cycle.
ADVANTAGES
- 25 % savings in weight*
- 6 cm shorter*
- Robust design
- Automatic return
- Easy handling
- Rotatable head
(*in comparison to its predecessor EFP202)?
| EFP203 | |
|---|---|
| 尺寸金属 | 高达tp 54 mm（取决于最大108 mm的压装系统） |
| 尺寸塑料管 | 最大110毫米 |
| 活塞力 | 32 kN |
| 活塞冲程 | 40毫米 |
| 重量 | 3,0公斤 |
| 长度 | 395毫米 |
| 宽度 | 81毫米 |
| 高度 | 203毫米 |
| 能量消耗 | 450瓦 |
| EFP203 | |
|---|---|
| Dimension Metal | up tp 54 mm (depending on pressfitting system up to 108 mm) |
| Dimension plastic pipe | up to 110 mm |
| Piston force | 32 kN |
| Piston stroke | 40 mm |
| Weight | 3,0 kg |
| Length | 395 mm |
| Width | 81 mm |
| Height | 203 mm |
| Power consumption | 450 W |
