DoubleVision Dual Display Wireless Voltage Indicating Phaser

The Dual Display?Voltage Indicating Phaser, model DDVIP-138, is a completely wireless dual display voltage indicator and phasing tool for voltages from 100v to 138kV line-to-line.? It includes a pair of lightweight, single stick line-to-ground voltage indicators that communicate with each other wirelessly.? The DDVIP-138 can also be used independently as Digital Voltage Indicators. Its multiple functions include:

Expanded phasing capabilities
Two large, digital LED displays are easily read from a distance or in bright sunlight
Clear indication of in-phase or out-of-phase
Capacitive Test Point mode
Peak Hold mode

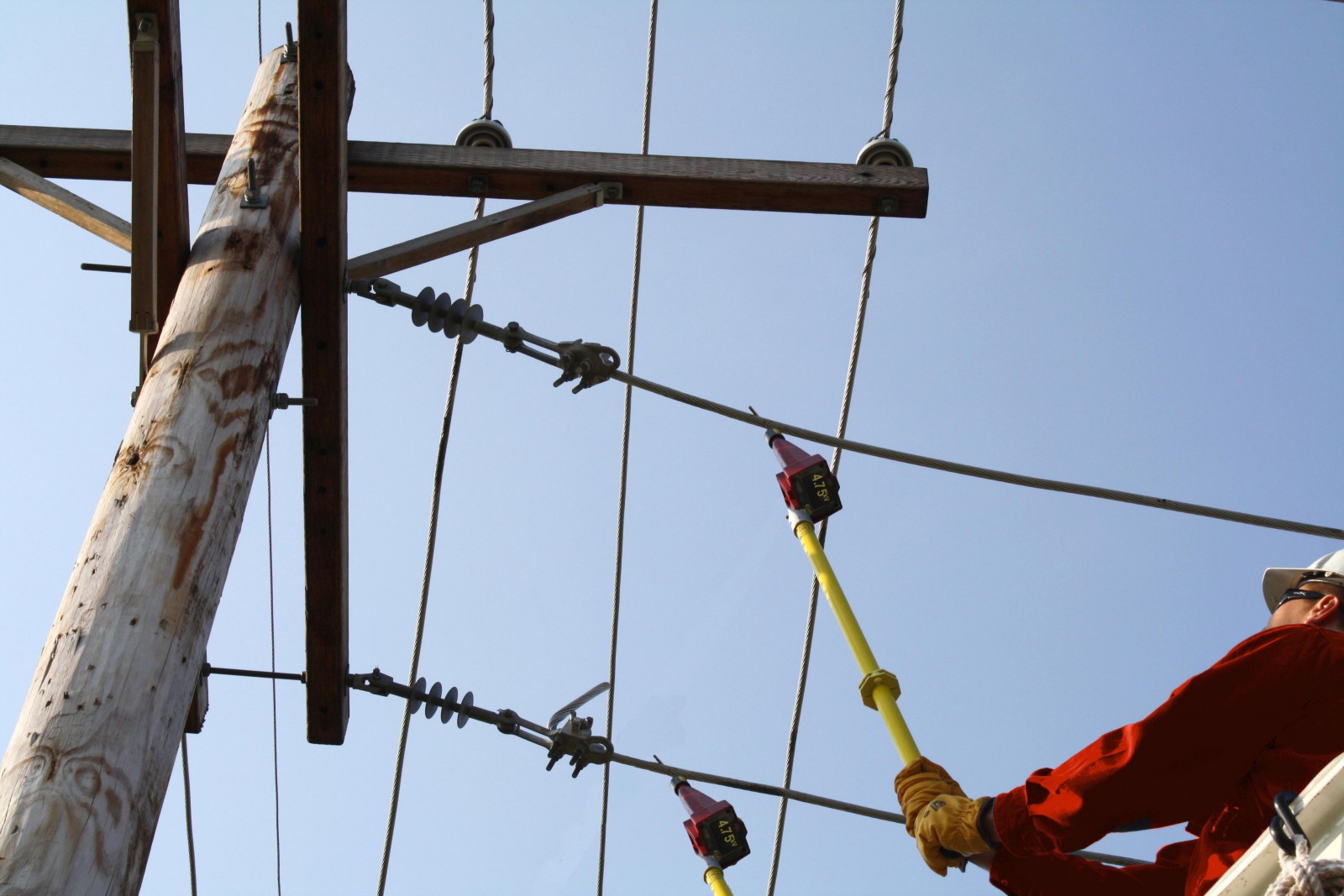

The DDVIP-138 measures voltage up to 138kV line-to-line. It can be used individually as voltage indicators or together for phasing operations up to 100 ft. (30m) apart.

Completely Wireless Communication -?Big, bright LED displays communicate wirelessly to make voltage measurements and phasing easy and efficient, especially over long distances. The synchronized dots at the bottom of the screens clearly indicate when the tools are communicating with each other.

For longer distance phasing up to 100?feet, the DDVIP is an ideal solution.

Features?and Benefits

Single button interface controls all functions:
- Line-to-line measurements
- Line-to-ground measurements
- Capacitive test point
- Real time and peak hold reporting
Ultra-light, high-strength nylon molded housing
Dual hot stick connection options – universal spline and shotgun stick
Oversized, digital LED screens on both meters
Two synchronized dots move back and forth to indicate when the meters are communicating

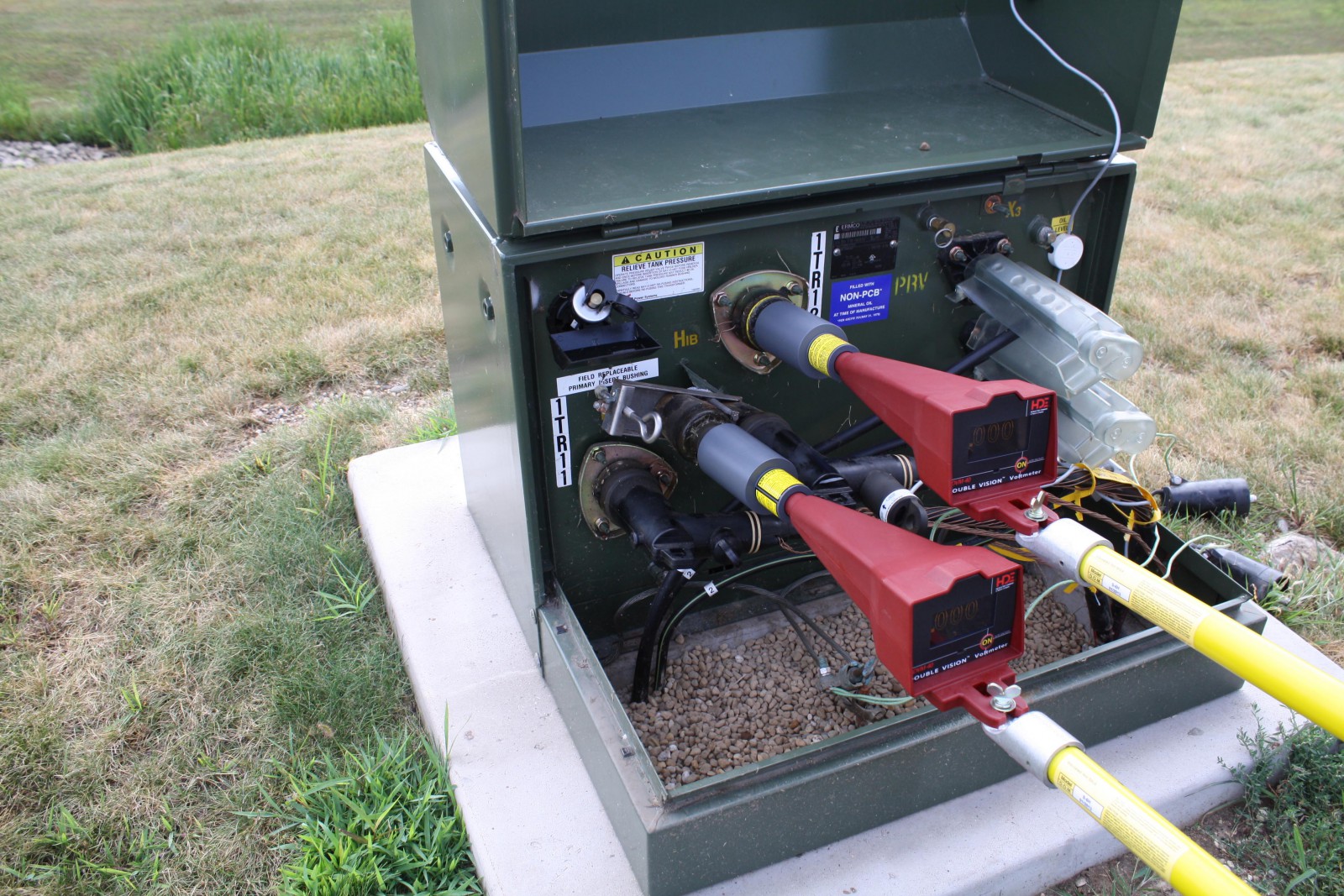

Available overhead and underground probes
Dual battery monitor with auto shut off
Powered by two 9V lithium or alkaline batteries in an easy to change battery case – no tools required

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.
