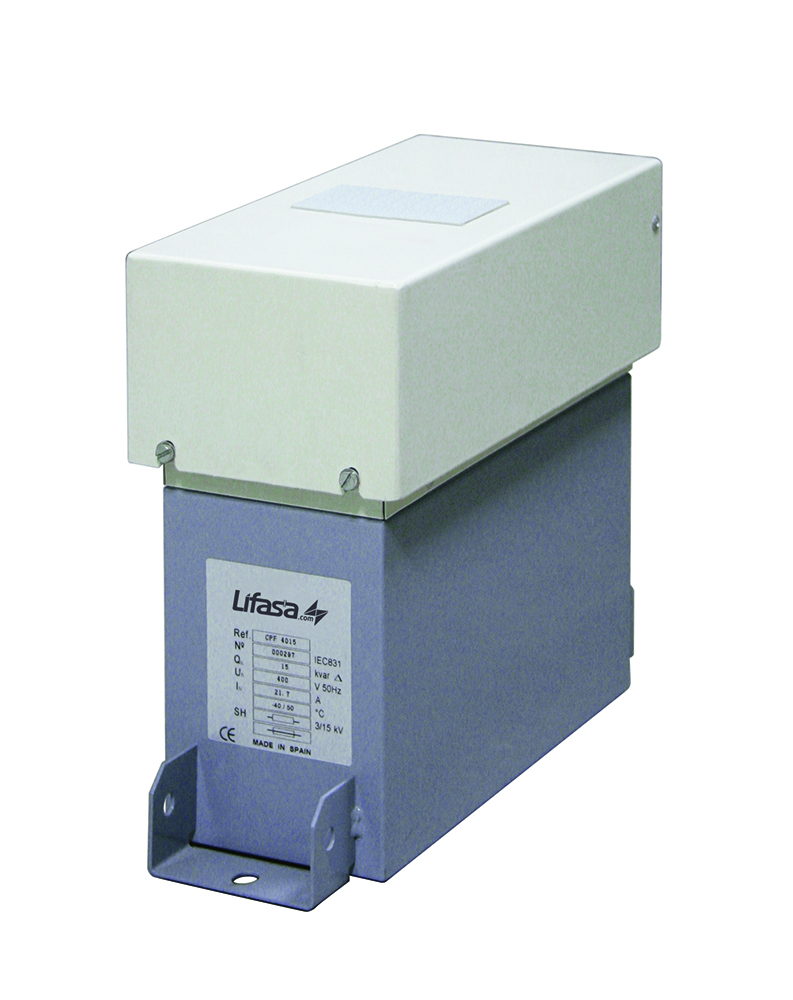

带保险丝CPF的电容器

CPF系列是通过将FML电容器连接到一组高破裂容量保险丝而形成的。

其结构有利于电容器在需要单独补偿电动机和变压器的安装中的连接。它提供有效的短路保护。

Capacitor with fuses CPF

CPF series are formed by connecting a FML capacitor to a group of high rupturing capacity fuses.

Its construction facilitates connection of the capacitor in installations where individual compensation of motors and transformers is required. It offers effective protection against short circuits.

绝缘等级3 kV rms / 15 kV波峰
最大。过压1.1 Un（8小时/天）
最大。过流1.3In
温度范围-40 / +55?C
安装室内
保险丝在<63 A：类型D0输入> 63 A：类型NH
保险丝的断裂能力D0型：50 kA

NH型：120 kA

颜色RAL 7035

根据要求提供其他功率，电压和频率。

Rated voltage230 … 440V
Frequency50 Hz – 60 Hz
Insulation level3 kV rms/15 kV crest
Max. overvoltage1.1 Un (8 h/day)
Max. overcurrent1.3 In
Temperature range-40/+55 ?C
InstallationIndoor
FusesIn<63 A: Type D0 In>63 A: Type NH
Rupture capacity of the fusesType D0: 50 kA

Type NH: 120 kA

ColourRAL 7035

Other powers, voltages and frequencies on request.

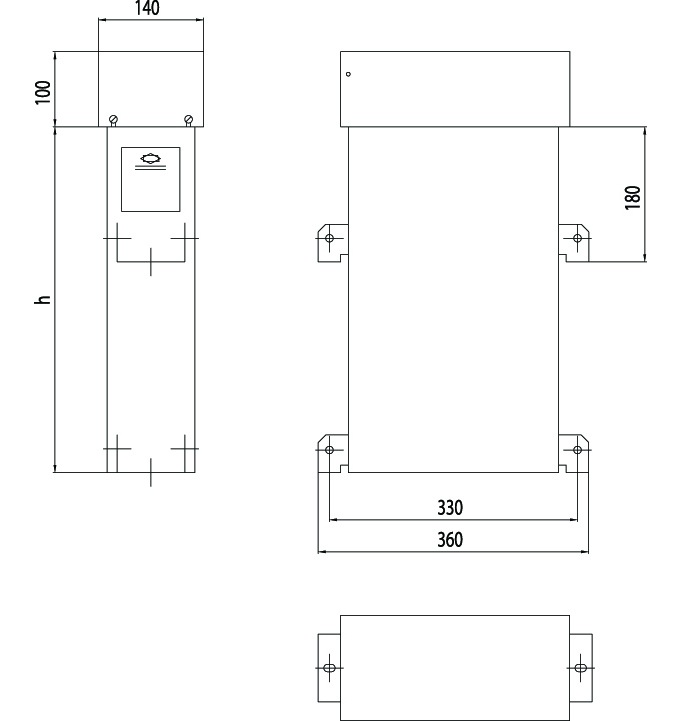

Part numberFusesQn (kvar)Un (V)In (A)h (mm)Weight (kg)
CPF4405NH00 16 A54407.22707
CPF4407NH00 20 A7.544010.82708
CPF4410NH00 35 A1044014.42708
CPF4415NH00 50 A1544021.72709
CPF4420NH00 63 A2044028.927010
CPF4425NH00 80 A2544036.127010
CPF4430NH00 125 A3044043.327011
CPF4440NH00 125 A4044057.727012
CPF4450NH00 160 A5044072.227016
CPF4460NH00 160 A6044086.646018
CPF4475NH00 160 A75440108.346019
CPF4480NH00 160 A80440115.546020
CPF2305NH00 25 A523012.52709
CPF2307NH00 35 A7.523018.827010
CPF2310NH00 50 A1023025.127011
CPF2315NH00 63 A1523037.727012
CPF2320NH00 80 A2023050.227016
CPF2325NH00 125 A2523062.827017
CPF2330NH00 125 A3023075.327019
CPF2340NH00 160 A40230100.446020

Other constructions, powers, tensions and frequencies to consult.
