HVAC数字钳形表，交流自动量程400 Amp

CL320

  • 钳形表通过钳和AC / DC电压，电阻，频率，DC微安，电容，占空比，二极管测试和通过测试引线的连续性以及热电偶的温度来测量AC电流和NCVT
  • 夹钳中集成了非接触式电压测试仪
  • 背光LCD便于在弱光下观看
  • 自动调整真均方根（TRMS）测量技术的准确性
  • 夹具侧面的测试导线支架和用于仪表（目录号69445或69417）的可选磁性吊架，用于免提操作
  • 用K型热电偶探头测量温度
  • 自动量程，数据保持和至大值/至小值
  • 10分钟后自动关闭电源以延长电池寿命
  • 包括一个手提箱，带CAT III / CAT IV安全帽的测试线，热电偶，说明和3节AAA电池
  • 电池电量低指示器和易于接近的电池仓
  • 能够承受6.6英尺（2 m）的跌落
  • CAT III 600V，等级2，双重绝缘安全等级
  • 满足在基本和受控电磁环境（例如住宅，办公室和轻工业场所）中使用的要求

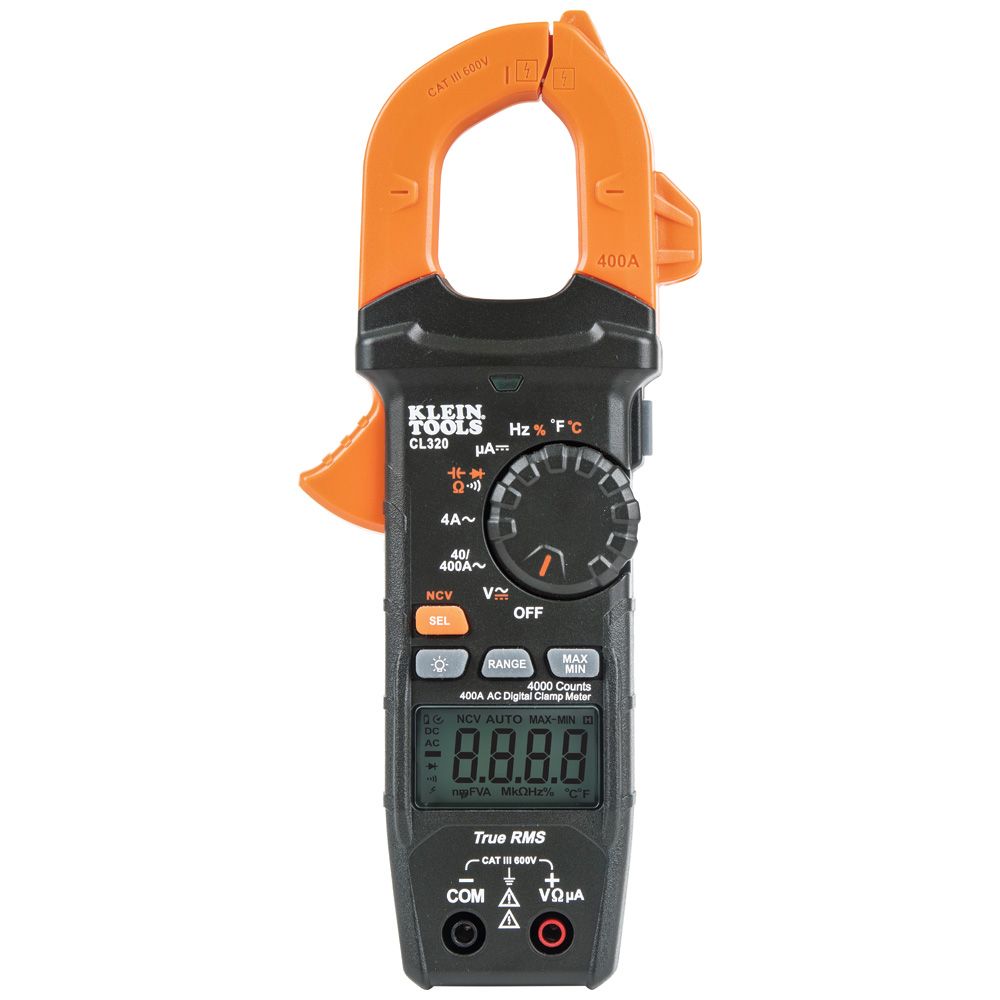

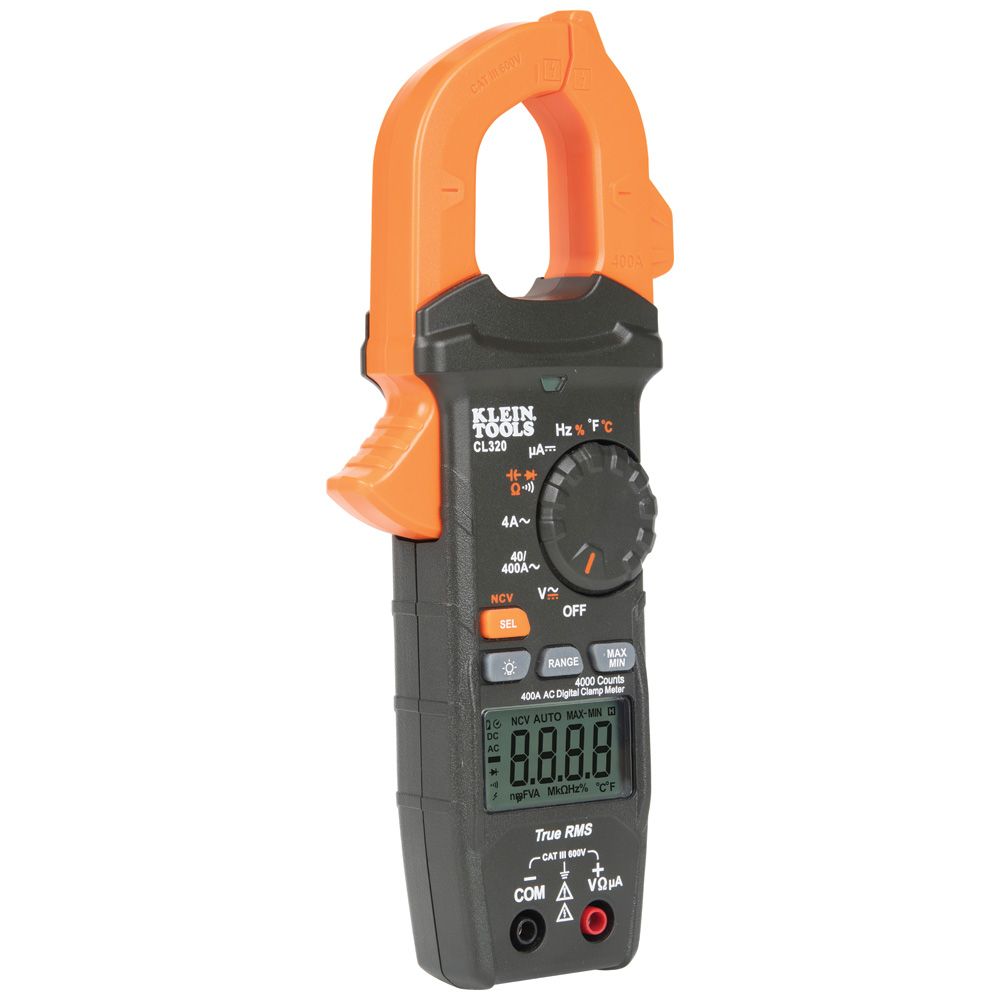

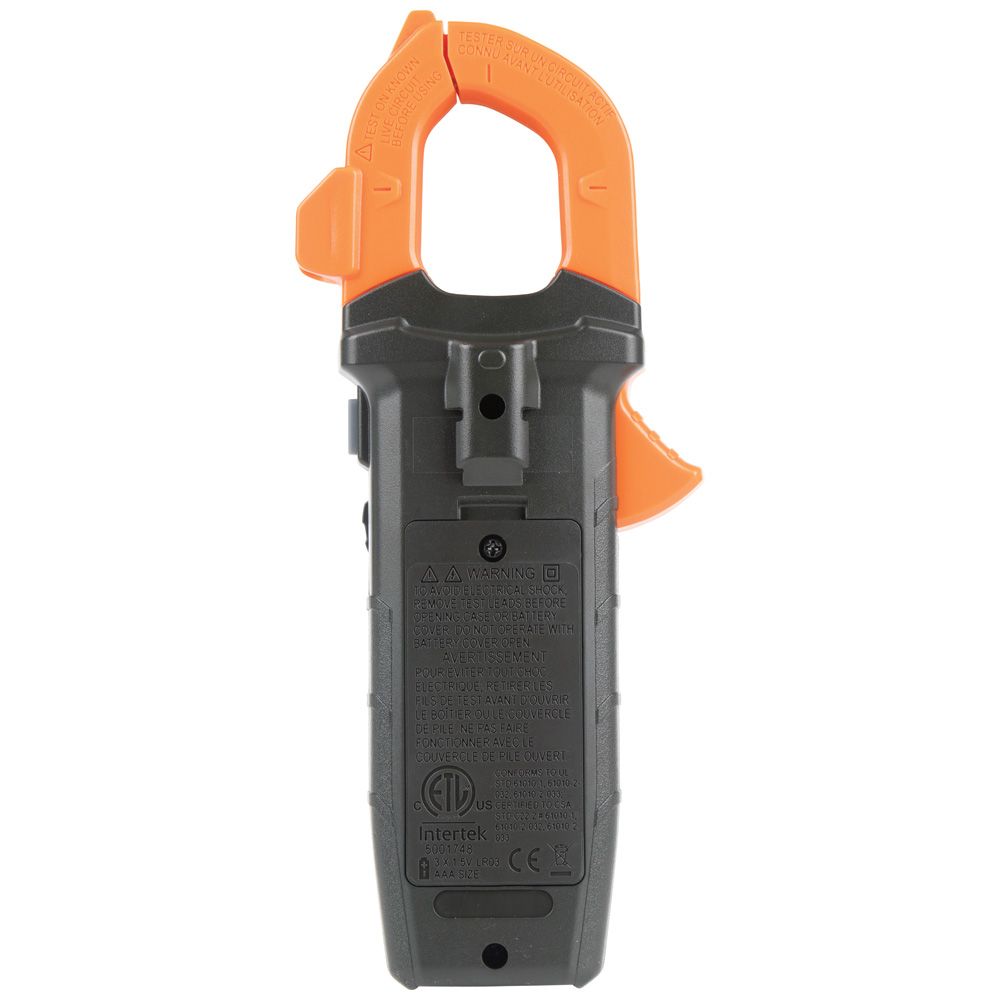

HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp

CL320

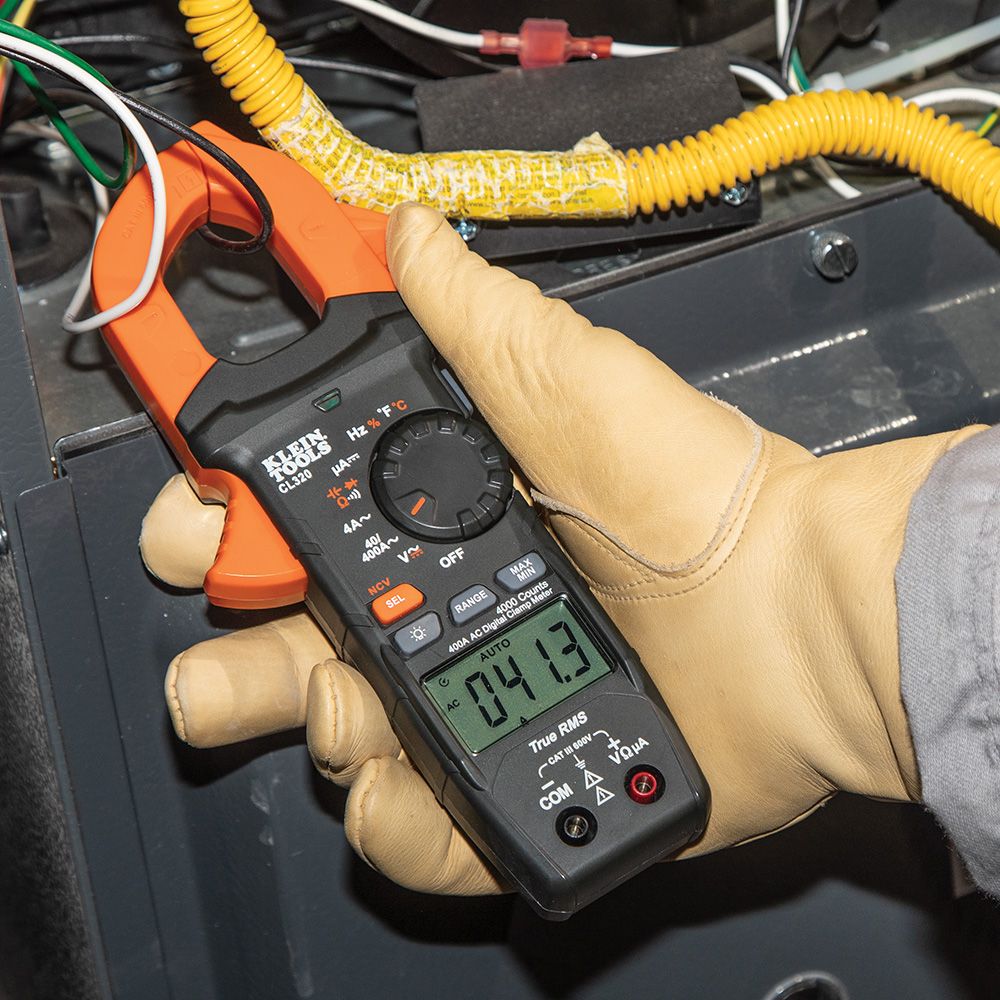

  • Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
  • Measures temperature with a K-Type thermocouple probe
  • Auto-Range, Data Hold, and Max/Min value
  • Auto-power off after 10 minutes to conserve battery life

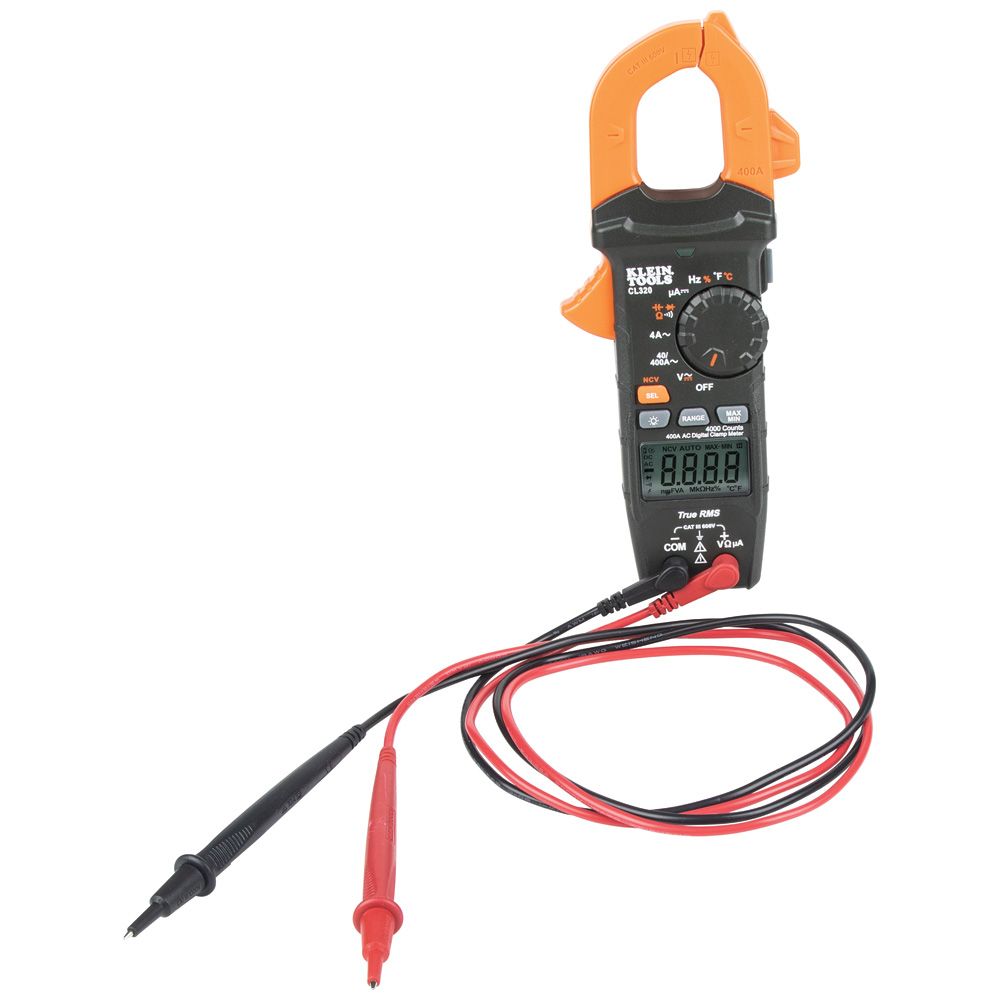

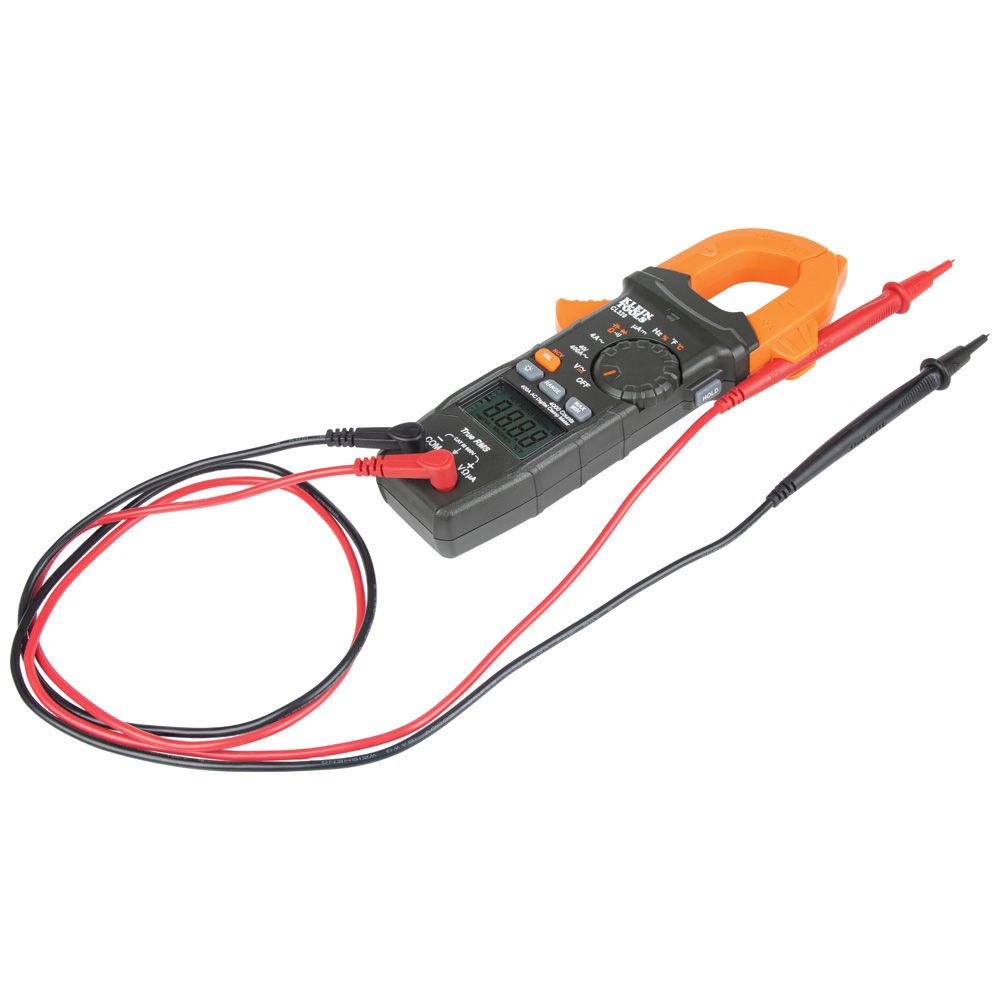

  • Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment
  • Built to withstand a 6.6-Foot (2 m) drop
  • CAT III 600V, Class 2, Double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Klein Tools CL320钳形表是一种自动量程真均方根（TRMS）数字钳形表，可通过钳形测量AC电流和NCVT，AC / DC电压，DC微安，电阻，连续性，频率，电容，并通过测试来测试二极管引线和温度通过热电偶探头。功能包括自动量程，可提高进行测量时的效率和速度；二极管测试，以排除二极管故障；至大值/至小值，了解与火焰传感器一起工作时所测电性能平均值和直流微安测量值的差异。

技术指标
类型：
HVAC TRMS夹
应用：
通过钳位和AC / DC电压，电阻，频率，直流微安培，电容，占空比，二极管测试，通过测试引线的连续性以及热电偶的温度来测量AC电流和NCVT
特殊功能：
自动调整真均方根（TRMS）测量技术的准确性；NCVT；暖通空调应用
材料：
ABS /电子
电池：
3 x AAA
自动关机：
是
钳口尺寸：
1.61英寸（4.1厘米）
跌落保护：
6.6’（2 m）
显示：
4000计数背光LCD
功能：
TRMS，交流电流，NCVT，交流/直流电压，电阻，直流微安培，频率，电容，占空比，二极管测试，连续性和温度
电压：
600V AC /直流
频率：
10赫兹-1 MHz
当前：
交流400 A
电容：
4000 ?F
欧姆（电阻）：
40MO
交流电压
600V
直流电压
600V
直流极性指示器：
是
直流微型放大器：
200微安
温度范围：
-40°-1832°F（-40°-1000°C）
标准：
CATIII 600V，2级，双重绝缘安全等级，CE认证
包括：
手提箱，说明，测试线，热电偶和电池
总长度：
8.45英寸（21.5厘米）
总高度：
1.51英寸（3.8厘米）
总宽度：
3.51英寸（8.9厘米）
重量：
11盎司（314克）
UPC：
092644692864
警告事项
  • 每次使用前，请阅读，理解并遵守所有测试和测量设备随附和/或包装的所有说明，警告和警告。
  • 请勿尝试测量带电电路的电阻或连续性。
  • 每次使用前，请通过测量已知的电压或电流来验证电表的运行。
  • 请勿在雷雨天气或潮湿天气中使用仪表，并且如果仪表或测试线看起来已损坏，也不要使用仪表。
  • 以非制造商指定的方式使用本仪表会损害安全操作，导致严重的人身伤害甚至死亡。

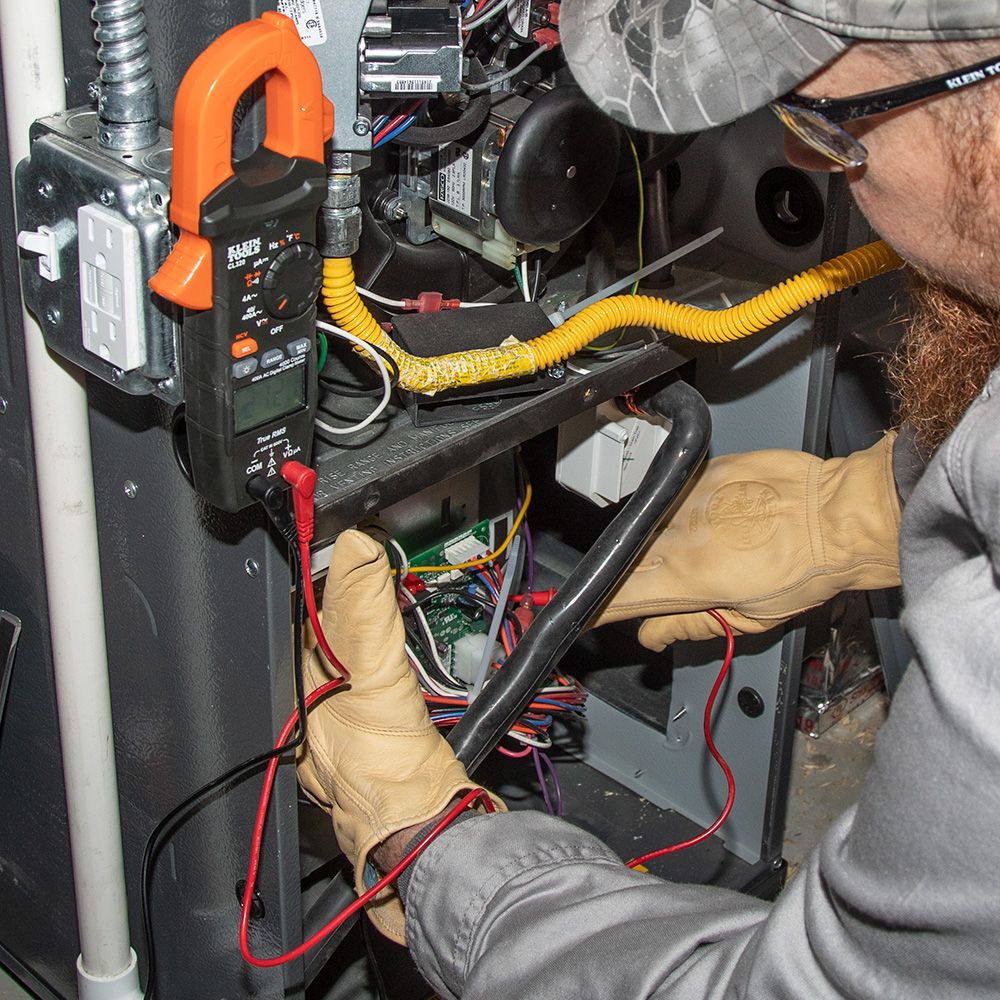

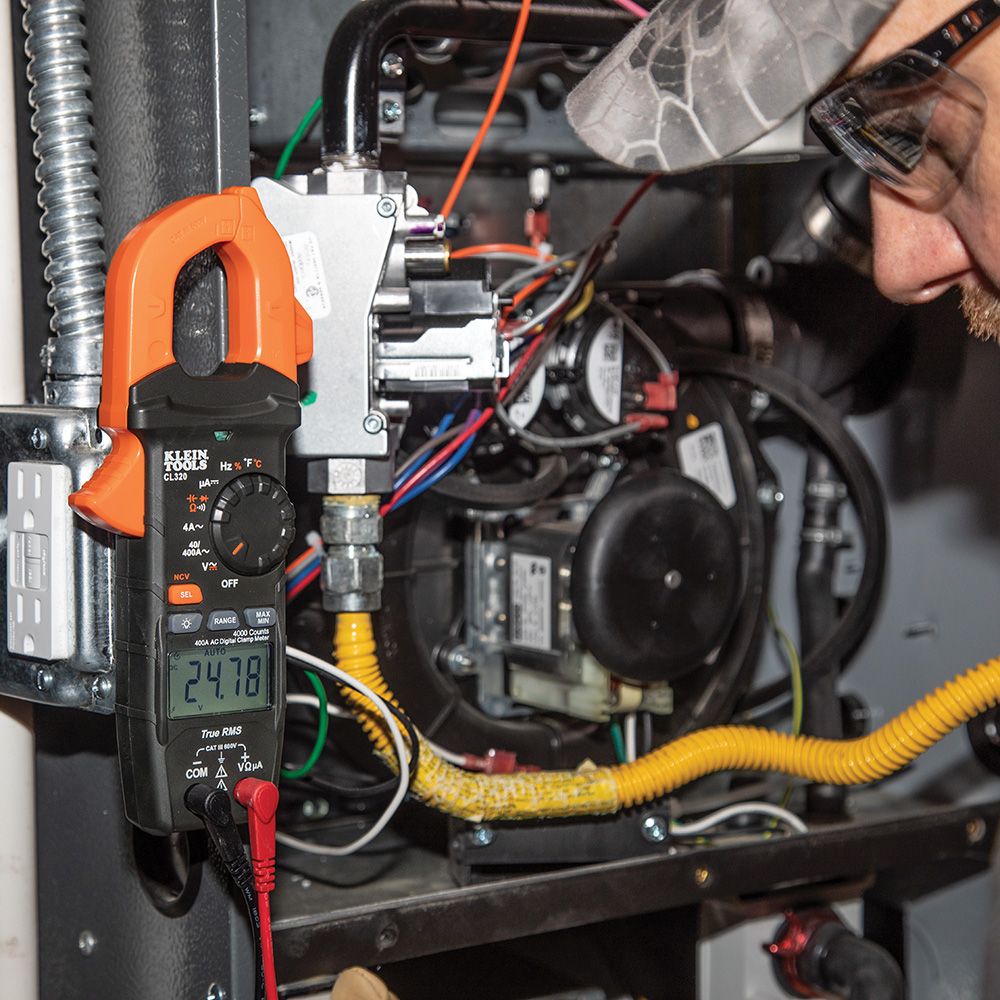

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.

Specifications
Type:
HVAC TRMS Clamp
Application:
Measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC micro-Amp, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
Special Features:
Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; HVAC Applications
Material:
ABS/Electronics
Batteries:
3 x AAA
Auto-Power Off:
Yes
Jaw Size:
1.61” (4.1 cm)
Drop Protection:
6.6′ (2 m)
Display:
4000 Count Backlit LCD
Functions:
TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC Micro Amp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
Voltage:
600V AC/DC
Frequency:
10 Hz -1 MHz
Current:
400 A AC
Capacitance:
4000 ?F
Ohms (Resistance):
40MO
AC Voltage:
600V
DC Voltage:
600V
DC Polarity Indicator:
Yes
DC Micro-Amp:
200 μA
Temperature Range:
-40° – 1832°F (-40° – 1000°C)
Standard:
CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included:
Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries
Overall Length:
8.45” (21.5 cm)
Overall Height:
1.51” (3.8 cm)
Overall Width:
3.51” (8.9 cm)
Weight:
11 oz (314 g)
UPC:
092644692864
WARNINGS
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not attempt to measure resistance or continuity on live circuits.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
