数字钳形表，交流自动量程400 Amp

CL120

  • 钳形表通过钳和AC / DC电压测量AC电流和NCVT，通过测试引线测量电阻和连续性
  • 夹钳中集成了非接触式电压测试仪
  • 背光LCD便于在弱光下观看
  • 自动量程测量
  • 夹具侧面的测试导线支架和用于仪表（目录号69445或69417）的可选电磁吊架，用于免提操作
  • 耐用的多功能仪表
  • 自动量程，保持，数据保持和至大值
  • 10分钟后自动关闭电源以延长电池寿命
  • 包括一个手提箱，带有CAT III / CAT IV安全帽的测试线，说明和3节AAA电池
  • 电池电量低指示器和易于接近的电池仓
  • 能够承受6.6英尺（2 m）的跌落
  • CAT III 600V，等级2，双重绝缘安全等级
  • 满足在基本和受控电磁环境（例如住宅，办公室和轻工业场所）中使用的要求

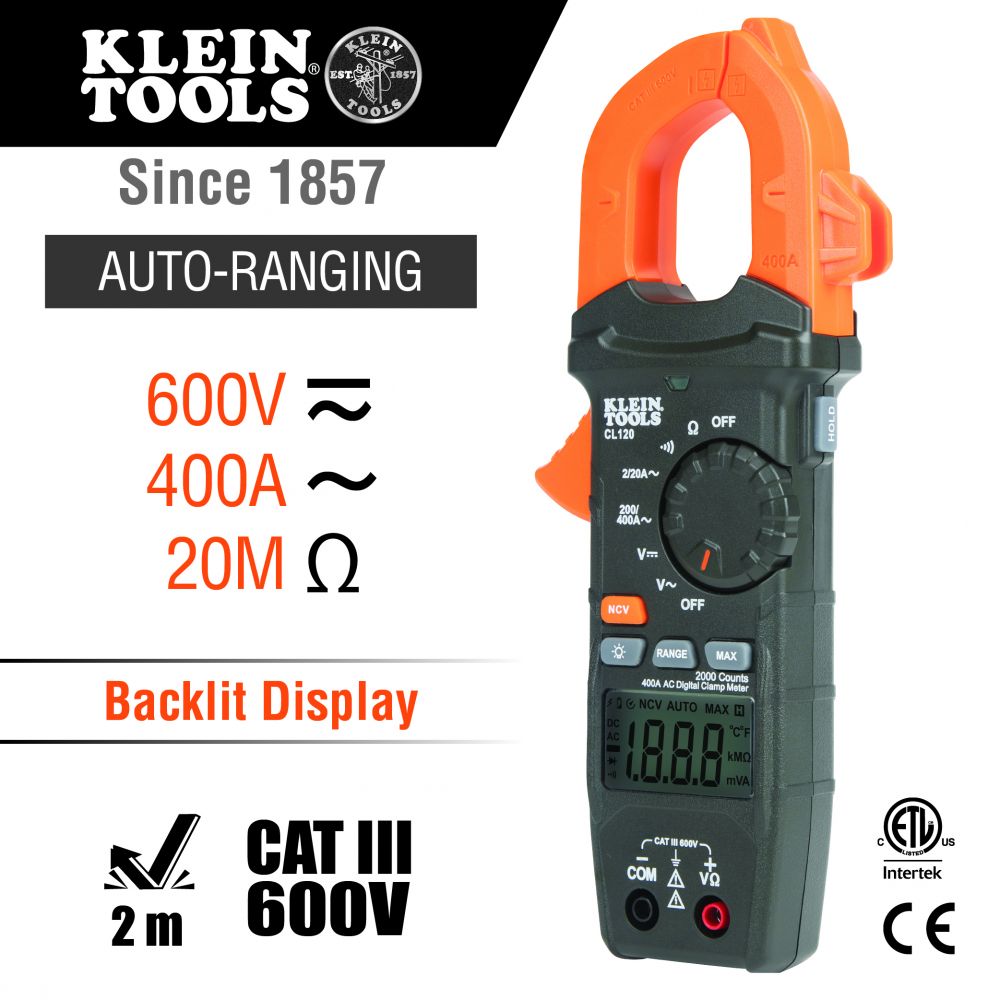

Digital Clamp Meter, AC Auto-Ranging 400 Amp

CL120

  • Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance and continuity via test-leads
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Auto ranging measurements
  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands-free operation
  • Durable, multifunction meter
  • Auto-Range, Hold, Data Hold, and Max value
  • Auto-power off after 10 minutes to conserve battery life

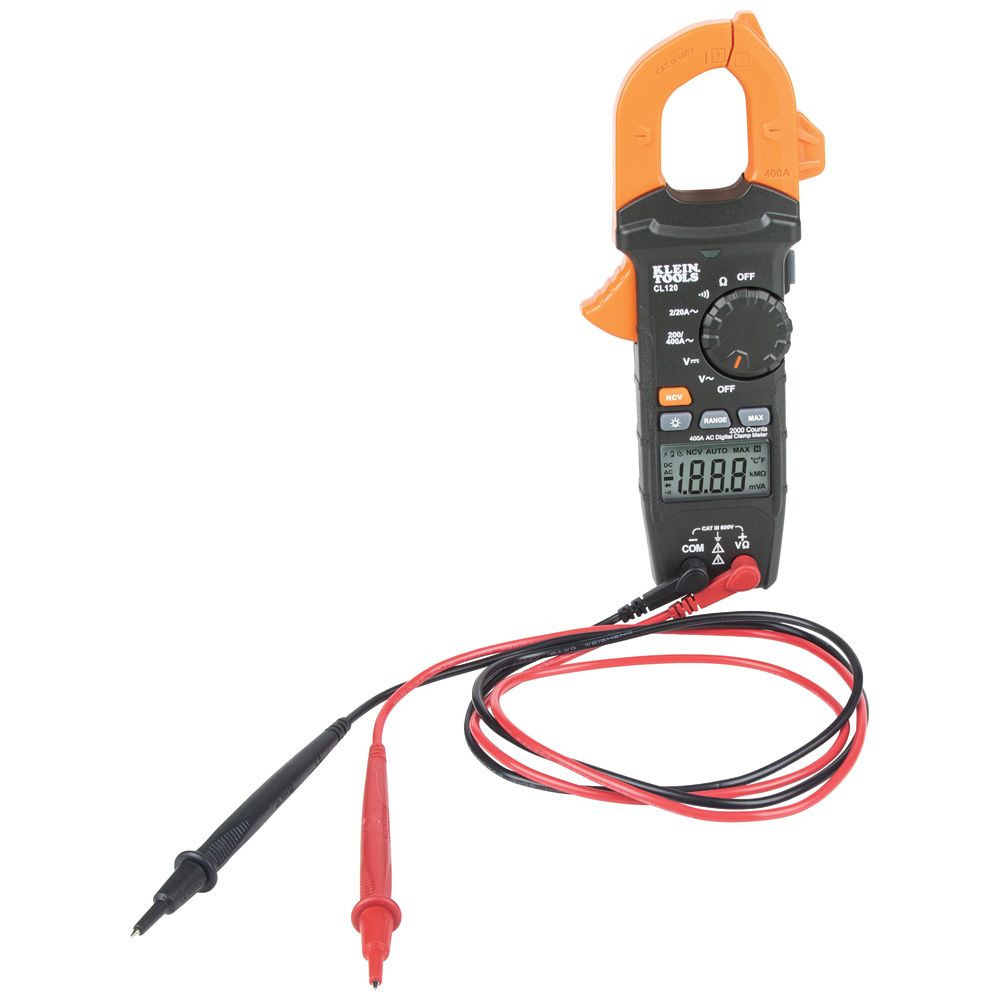

  • Includes a carrying case, test leads with CAT III/CAT IV safety caps, Instructions, and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment
  • Built to withstand a 6.6-Foot (2 m) drop
  • CAT III 600V, Class 2, Double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Klein Tools CL120钳形表是一种自动量程数字钳形表，可通过钳形测量AC电流和NCVT，并通过测试导线测量AC / DC电压，电阻和连续性。Klein Tools的测试和测量产品线是为电工设计的。多年的现场研究，再加上电工的广泛投入，激发了具有省时功能的仪表和电气测试仪的发展。

技术指标
类型：
自动测距夹
应用：
通过钳位测量交流电流和NCVT，通过测试引线测量交流/直流电压，电阻和连续性
特殊功能：
自动量程测量；无级变速器
材料：
ABS /电子
电池：
3 x AAA
自动关机：
是
钳口尺寸：
1.6英寸（4.1厘米）
跌落保护：
6.6’（2 m）
显示：
2000点背光LCD
功能：
交流电流，NCVT，交流/直流电压，电阻和连续性
电压：
600V AC /直流
当前：
交流400 A
欧姆（电阻）：
20MO
交流电压
600V
直流电压
600V
直流极性指示器：
是
标准：
CATIII 600V，2级，双重绝缘安全等级，CE认证
包括：
手提箱，说明，测试线和电池
总长度：
8.5英寸（21.5厘米）
总高度：
1.5英寸（3.8厘米）
总宽度：
3.5英寸（8.9厘米）
重量：
11盎司（314克）
UPC：
092644692833
警告事项
  • 每次使用前，请阅读，理解并遵守所有测试和测量设备随附和/或包装的所有说明，警告和警告。
  • 请勿尝试测量带电电路的电阻或连续性。
  • 每次使用前，请通过测量已知的电压或电流来验证电表的运行。
  • 请勿在雷雨天气或潮湿天气中使用仪表，并且如果仪表或测试线看起来已损坏，也不要使用仪表。
  • 以非制造商指定的方式使用本仪表会损害安全操作，导致严重的人身伤害甚至死亡。

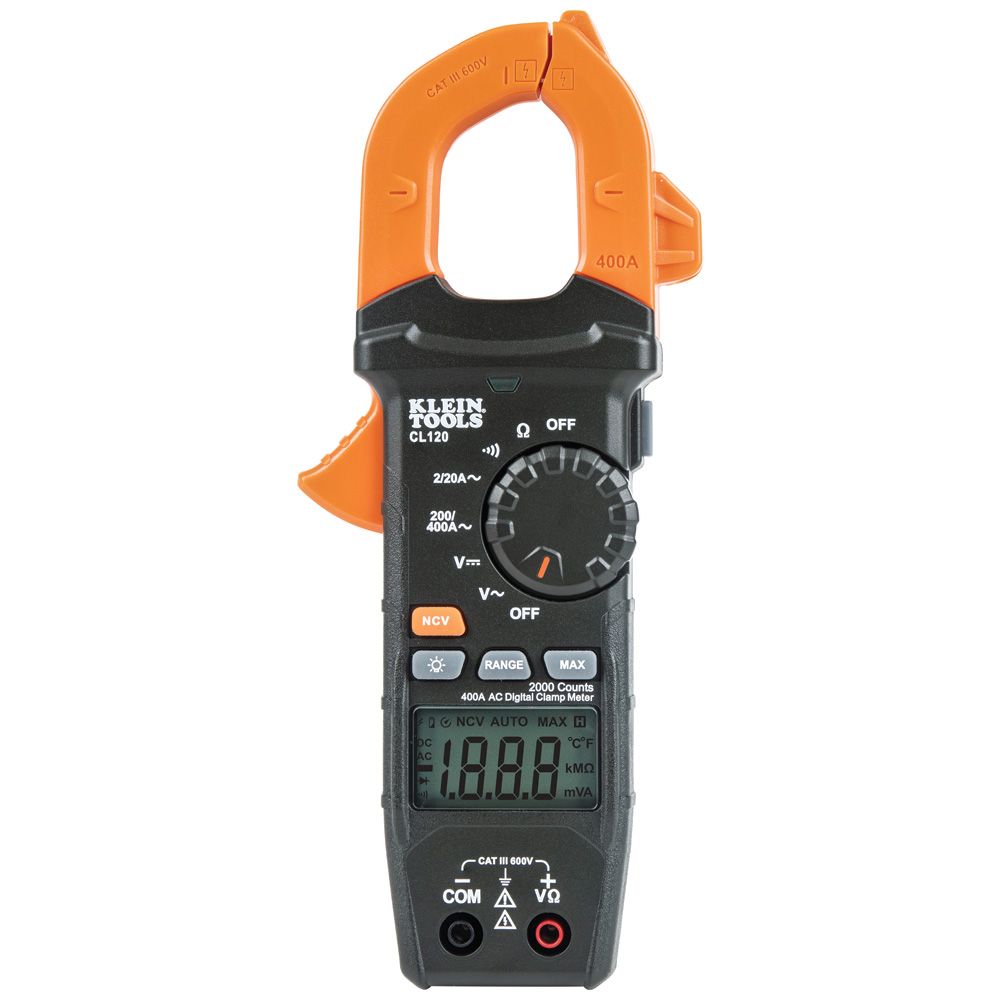

Klein Tools CL120 Clamp Meter is an automatically ranging digital clamp-meter that measures AC current and NCVT via the clamp, and AC/DC voltage, resistance and continuity via test-leads. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with time-saving features.

Specifications
Type:
Auto Ranging Clamp
Application:
Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-Leads
Special Features:
Automatic Ranging for Measurement; NCVT
Material:
ABS/Electronics
Batteries:
3 x AAA
Auto-Power Off:
Yes
Jaw Size:
1.6” (4.1 cm)
Drop Protection:
6.6′ (2 m)
Display:
2000 Count Backlit LCD
Functions:
AC Current, NCVT, AC/DC Voltage, Resistance and Continuity
Voltage:
600V AC/DC
Current:
400 A AC
Ohms (Resistance):
20MO
AC Voltage:
600V
DC Voltage:
600V
DC Polarity Indicator:
Yes
Standard:
CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included:
Carrying Case, Instructions, Test Leads, and Batteries
Overall Length:
8.5” (21.5 cm)
Overall Height:
1.5” (3.8 cm)
Overall Width:
3.5” (8.9 cm)
Weight:
11 oz (314 g)
UPC:
092644692833
WARNINGS
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not attempt to measure resistance or continuity on live circuits.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
