钳形表电气测试套件

CL120KIT

  • 通过夹具测量交流电流，并通过测试引线测量交流/直流电压，电阻和连续性
  • 检测标准和GFCI插座中常见的接线问题，包括开路，反极性，开火，中性开路和热/地反接
  • 分线器允许测量至大15A的电流而无需分流负载的电源线
  • CAT III 600V，等级2，双重绝缘安全等级
  • 交流自动量程400安培数字钳形表
  • 背光显示，读数清晰
  • 包括外壳，测试线和电池

Clamp Meter Electrical Test Kit

CL120KIT

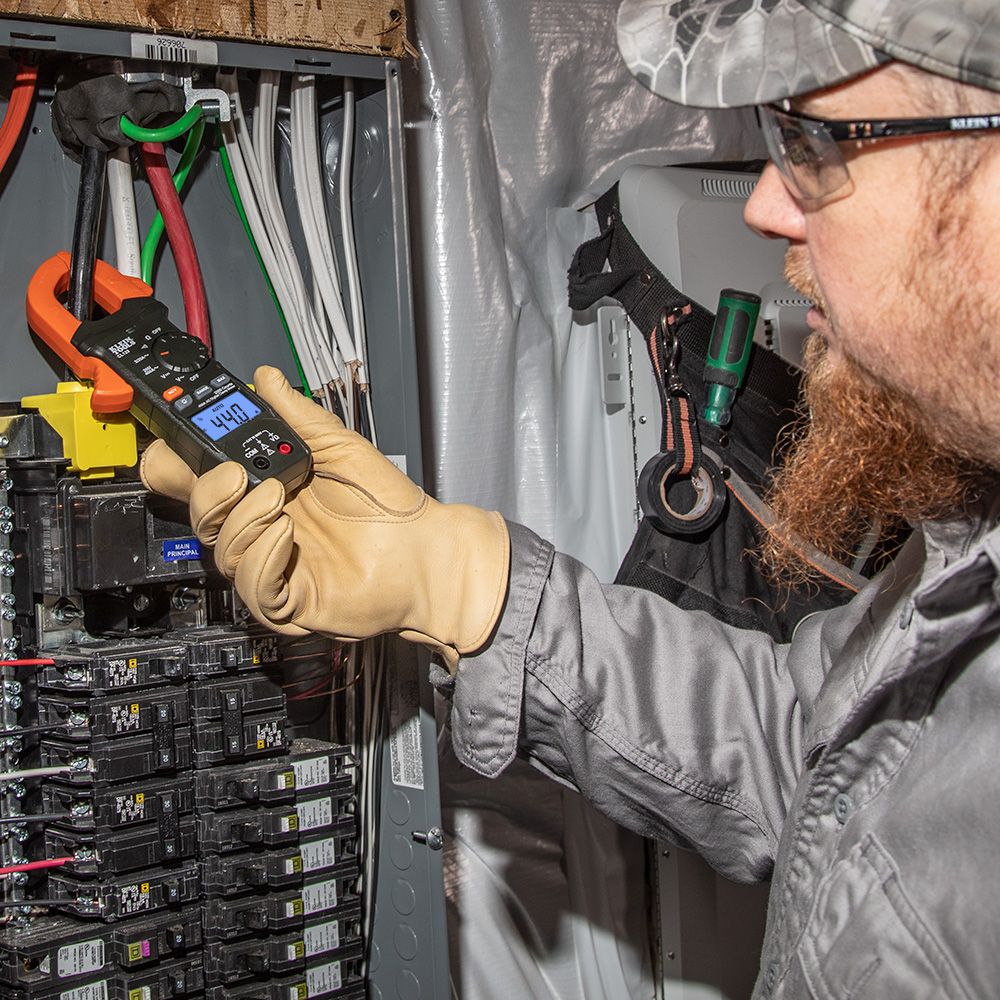

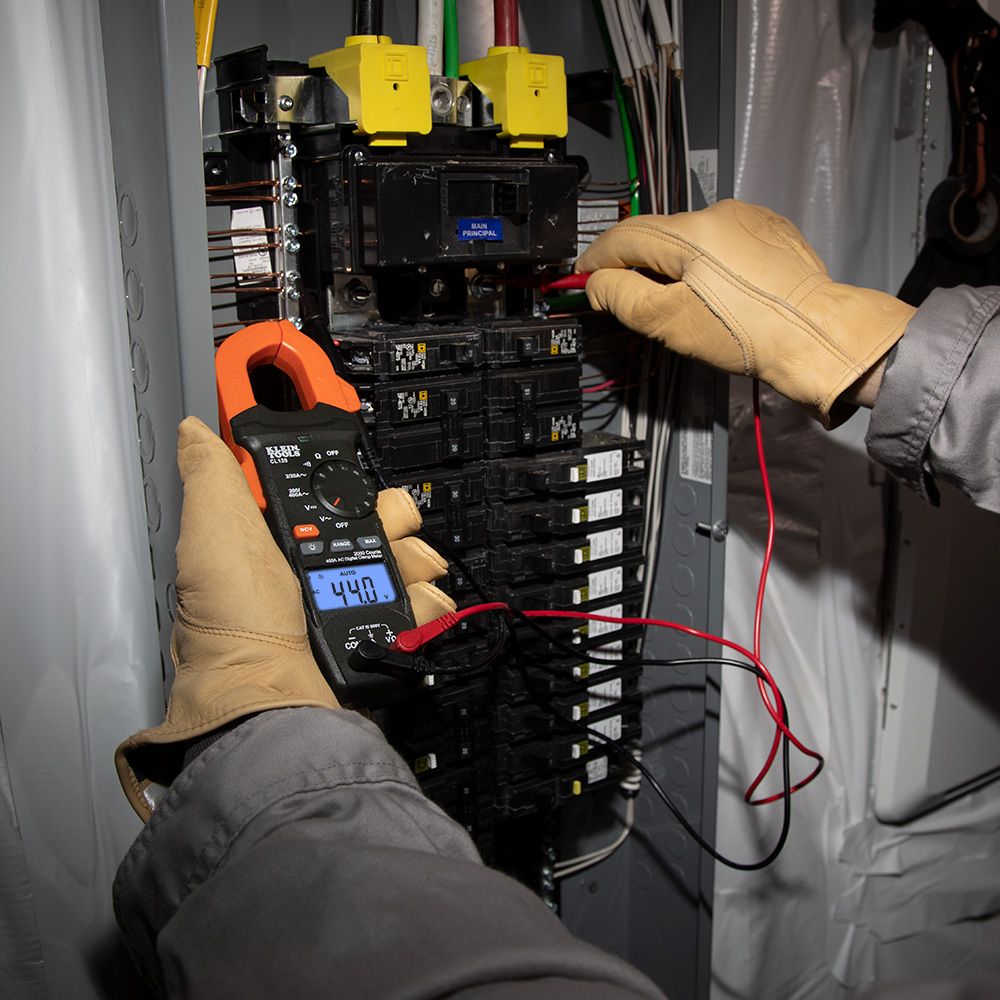

  • Measure AC current via the clamp, and AC/DC voltage, resistance and continuity via test leads

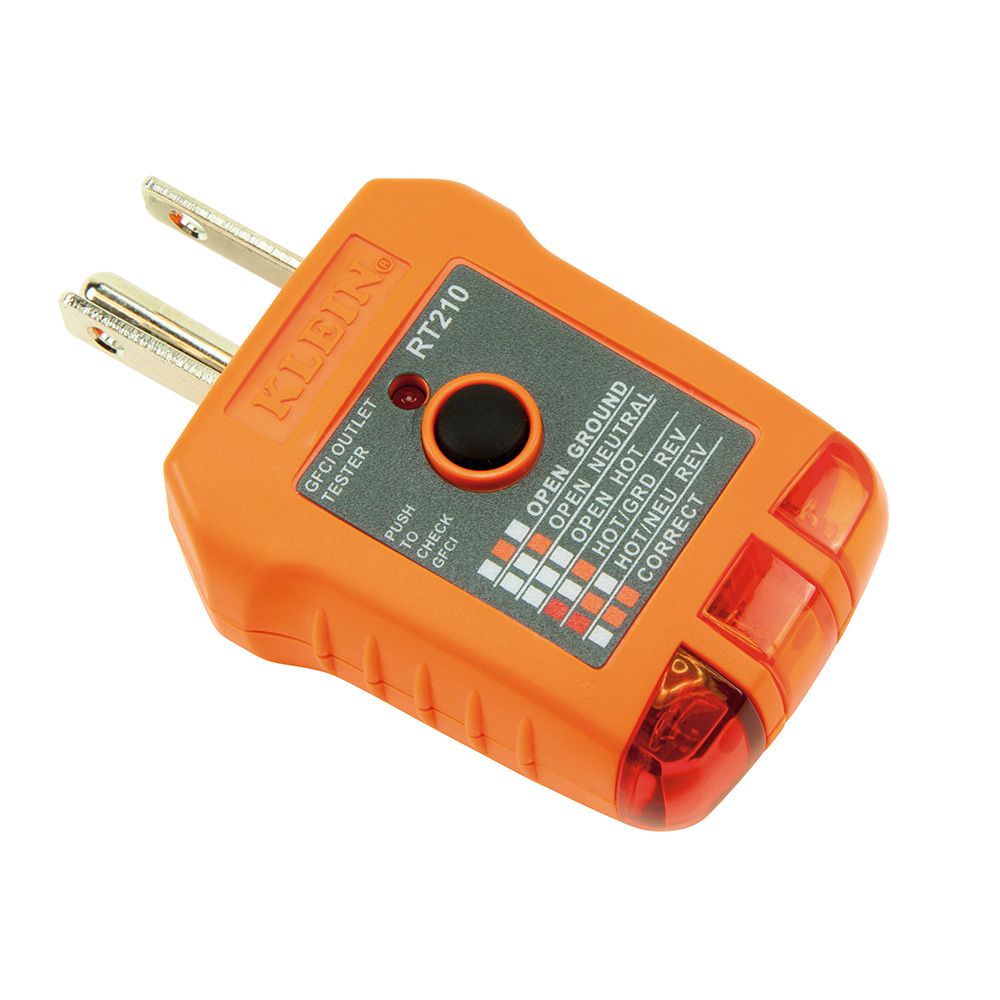

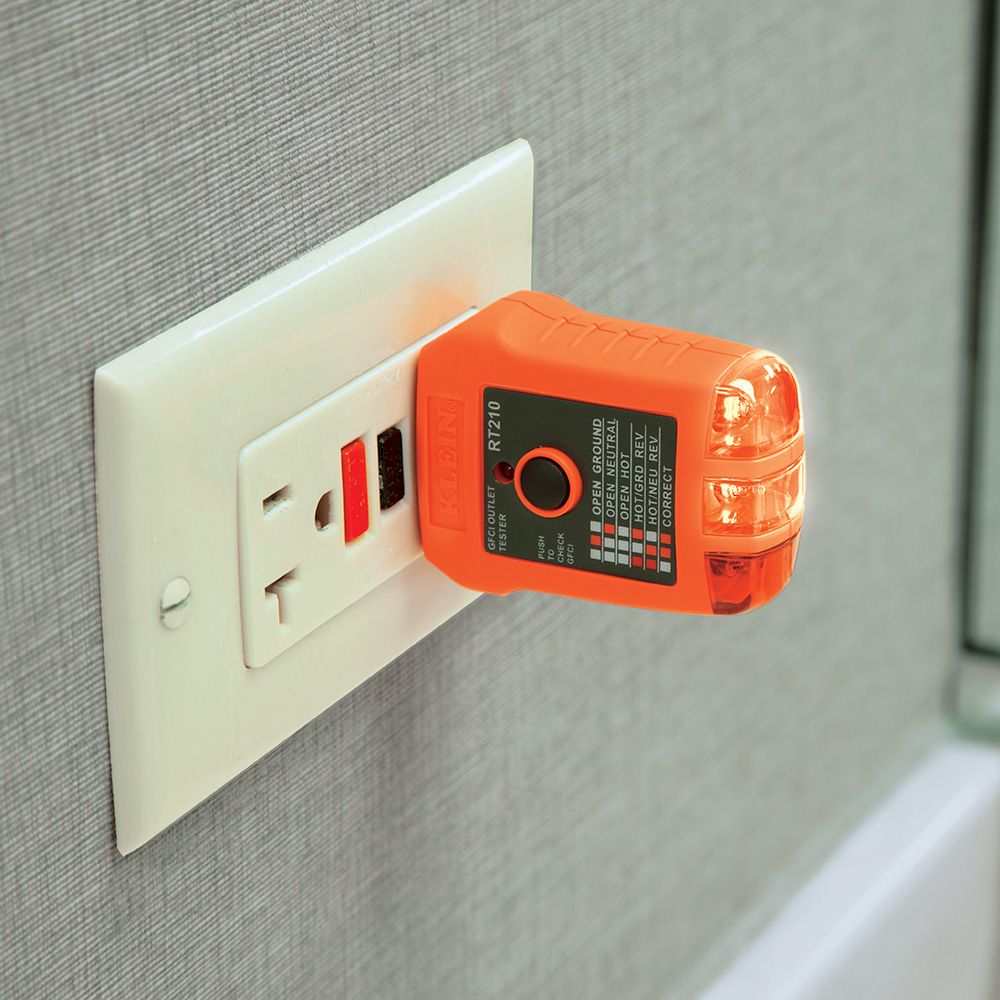

  • Detects the most common wiring problems in standard and GFCI receptacles including open ground, reverse polarity, open hot, open neutral and hot/ground reversed

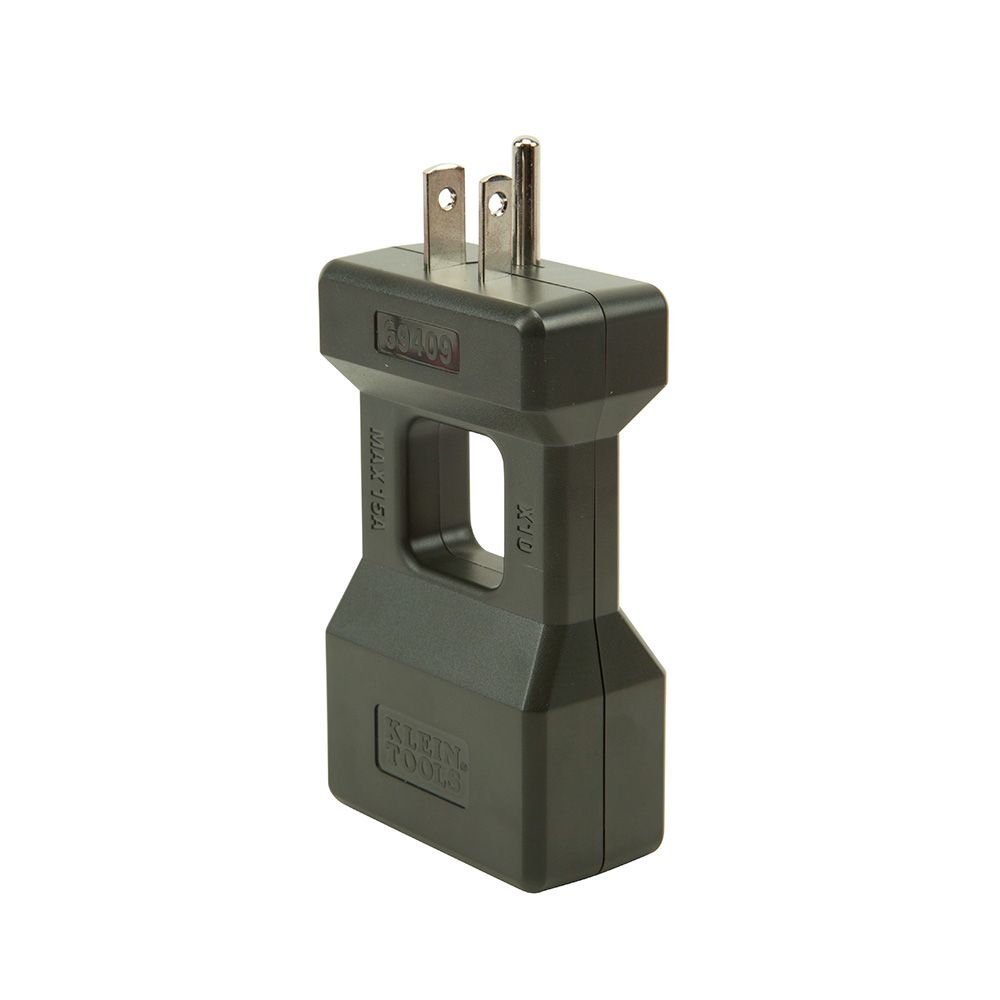

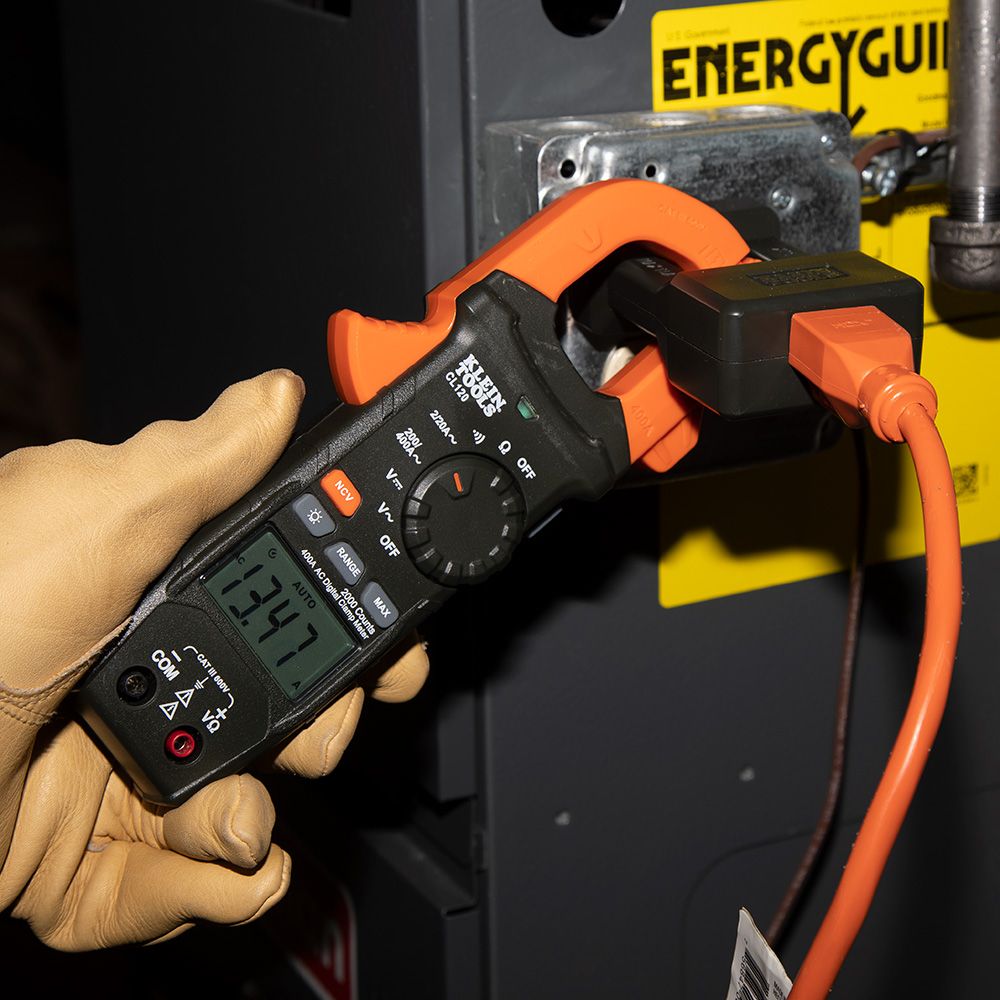

  • Line splitter allows the measuring of current draw up to 15A without splitting the load’s power cord
  • CAT III 600V, Class 2, Double insulation safety rating

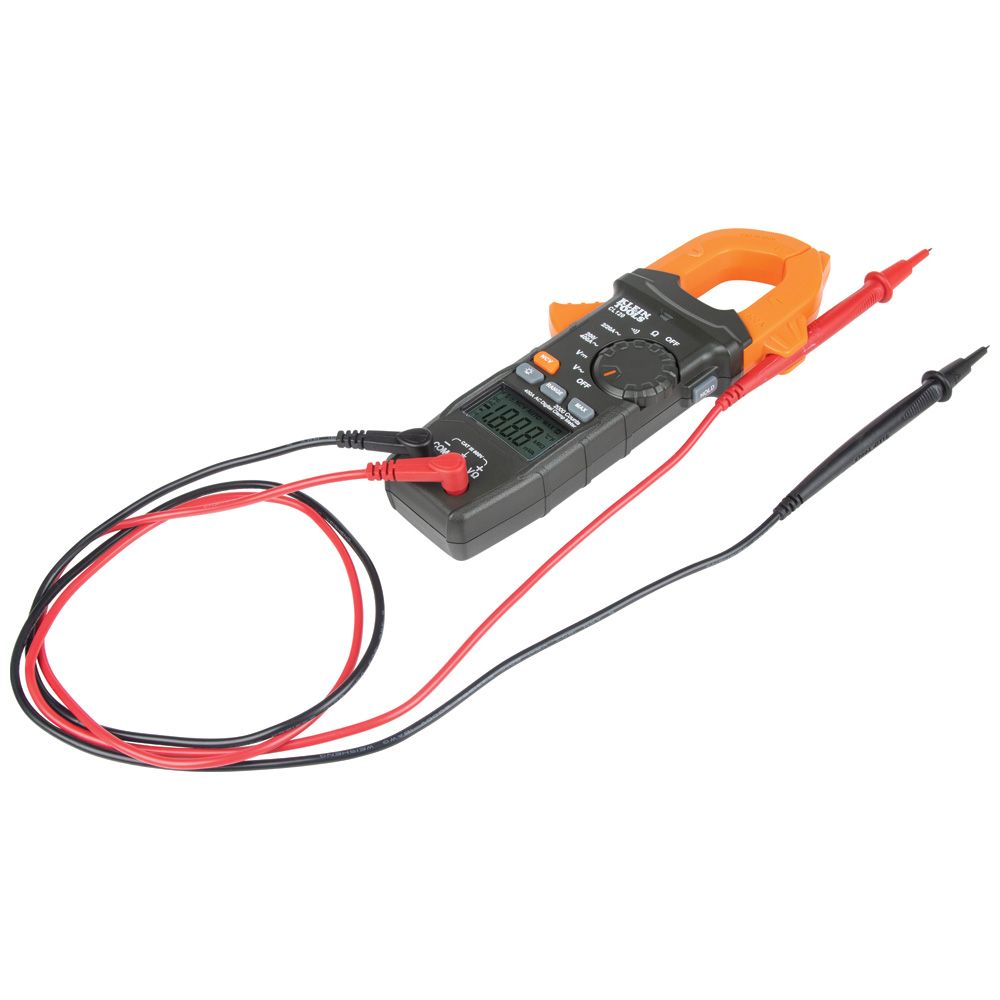

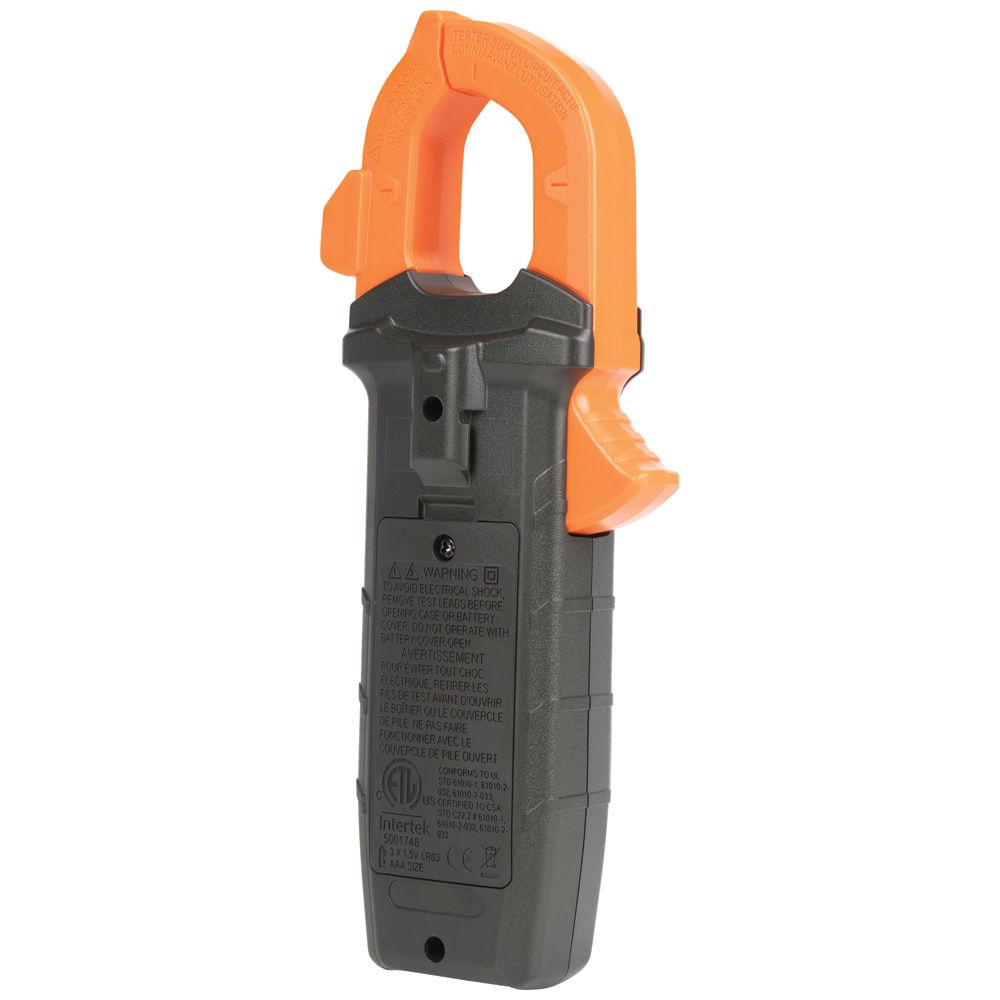

  • AC Auto-Ranging 400 amp digital clamp meter
  • Backlit display for clear readings
  • Includes a case, test leads and batteries

凯能工具钳形表电气测试套件包括CL110 400A自动量程数字钳形表，RT210 GFCI插座测试器和69409线路分配器10x。电气测试套件可轻松测试带电电路并测量电流和电压。其中包括一个便携袋，测试线和电池。

技术指标
类型：
钳形表套件
应用：
测试电压
特殊功能：
背光显示屏可清晰阅读
总长度：
3.02英寸（7.7厘米）
总高度：
8.70英寸（22.1厘米）
总宽度：
1.61英寸（4.1厘米）
材料：
ABS /电子
电池：
3 x AAA
钳口尺寸：
1.61英寸（4.1厘米）
跌落保护：
6.6’（2 m）
显示：
2000计数反差LCD
功能：
TRMS，AC电流，NCVT，AC / DC电压，电阻和连续性
电压：
600 V交流/直流
污染度：
8.7英寸（22.1厘米）
标准：
CAT III 600V
包括：
测试线，电池，手提箱
重量：
15盎司（426克）
UPC：
092644692840
警告事项
  • 请勿尝试测量带电电路的电阻或连续性。
  • 每次使用前，请阅读，理解并遵守所有测试和测量设备随附和/或包装的所有说明，警告和警告。
  • 每次使用前，请通过测量已知的电压或电流来验证电表的运行。
  • 请勿在雷雨天气或潮湿天气中使用仪表，并且如果仪表或测试线看起来已损坏，也不要使用仪表。

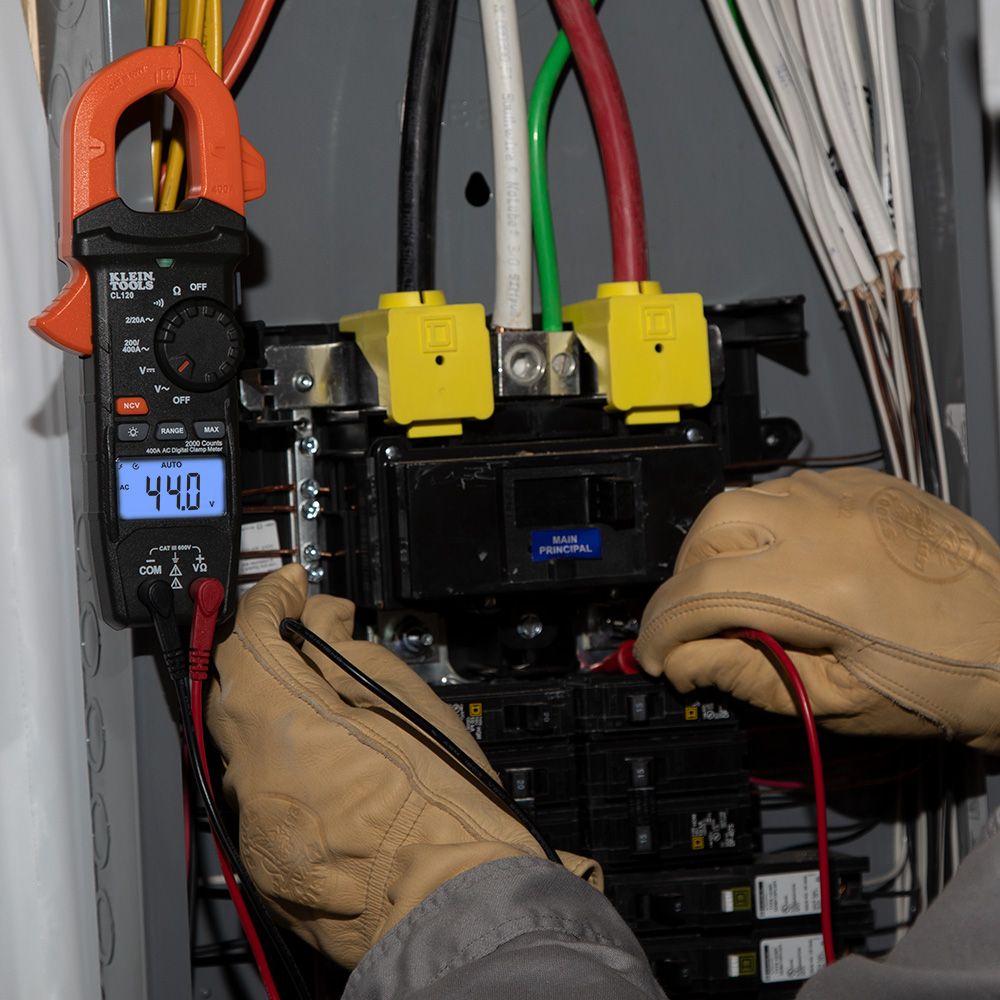

Klein Tools Clamp Meter Electrical Test Kit includes the CL110 400A Auto-Ranging Digital Clamp Meter, RT210 GFCI Receptacle Tester and 69409 Line Splitter 10x. The Electrical Test Kit allows for easy testing of live circuits and measuring of current and voltage. Included is a carrying pouch, test leads and batteries.

Specifications
Type:
Clamp Meter Kit
Application:
Testing and Measuring Voltage
Special Features:
Backlit Display For Clear Readings
Overall Length:
3.02” (7.7 cm)
Overall Height:
8.70” (22.1 cm)
Overall Width:
1.61” (4.1 cm)
Material:
ABS/Electronics
Batteries:
3 x AAA
Jaw Size:
1.61” (4.1 cm)
Drop Protection:
6.6′ (2 m)
Display:
2000 Count Reverse Contrast LCD
Functions:
TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, and Continuity
Voltage:
600 V AC/DC
Pollution Degree:
8.7” (22.1 cm)
Standard:
CAT III 600V
Included:
Test Leads, Batteries, Carrying Case
Weight:
15 oz (426 g)
UPC:
092644692840
WARNINGS
  • Do not attempt to measure resistance or continuity on live circuits.
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
