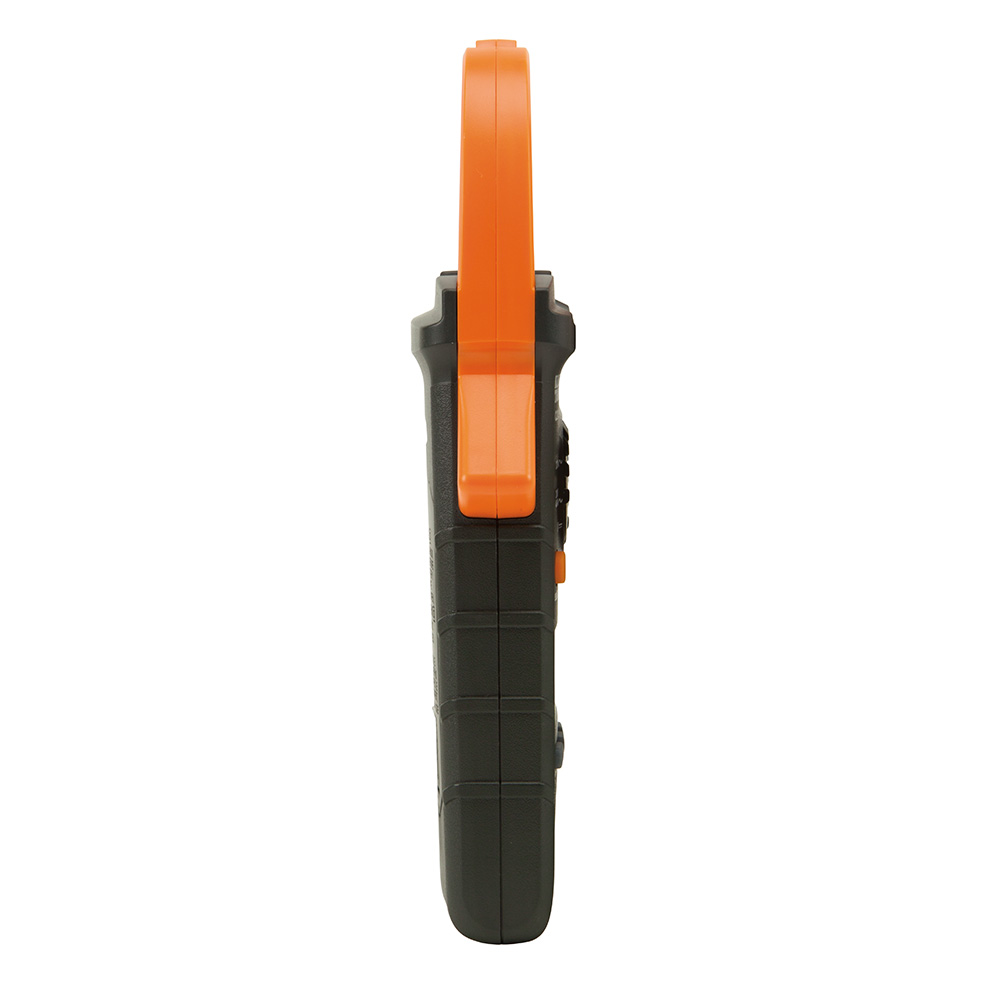

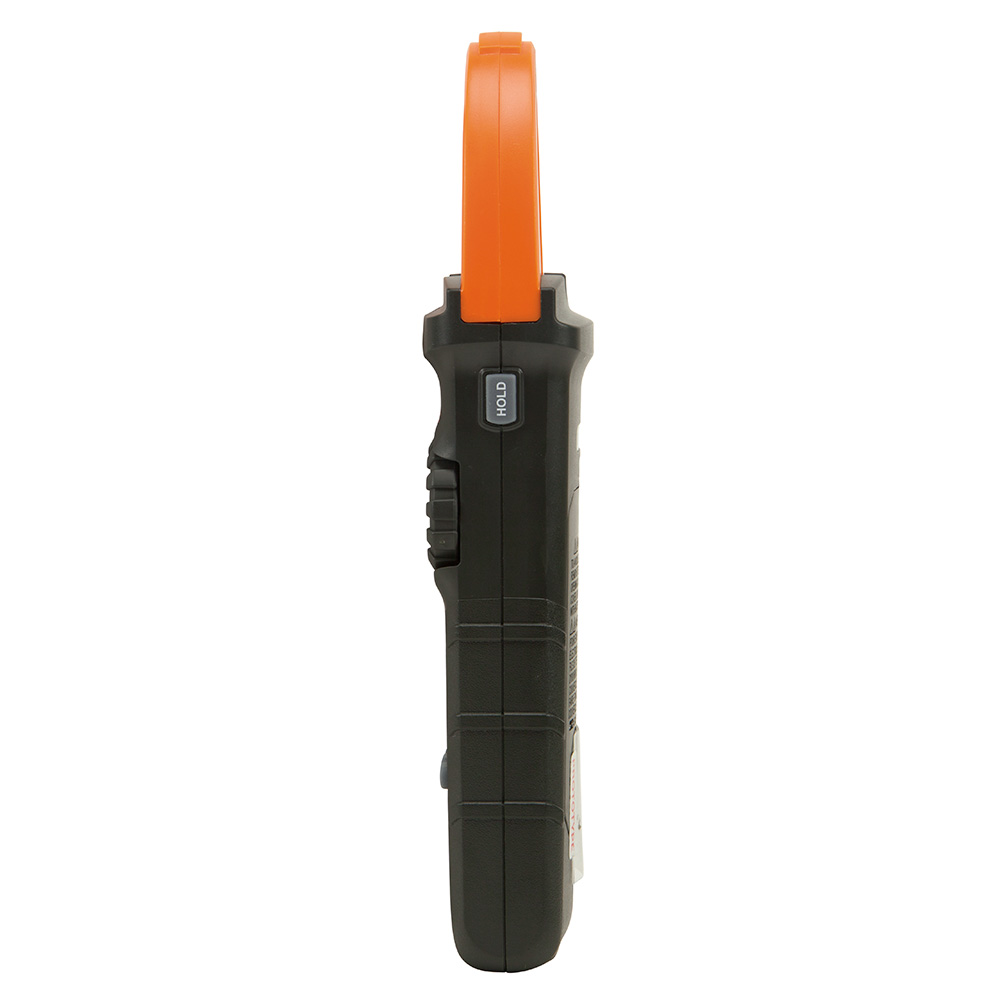

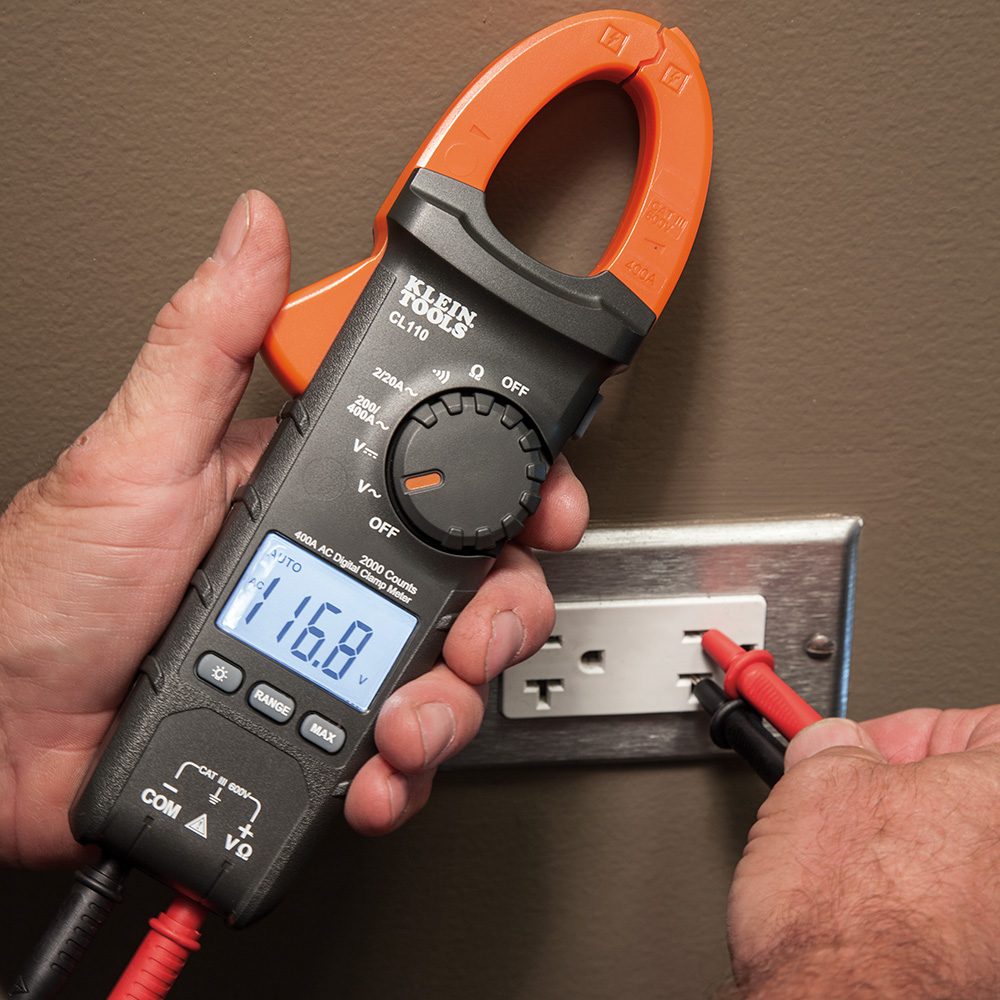

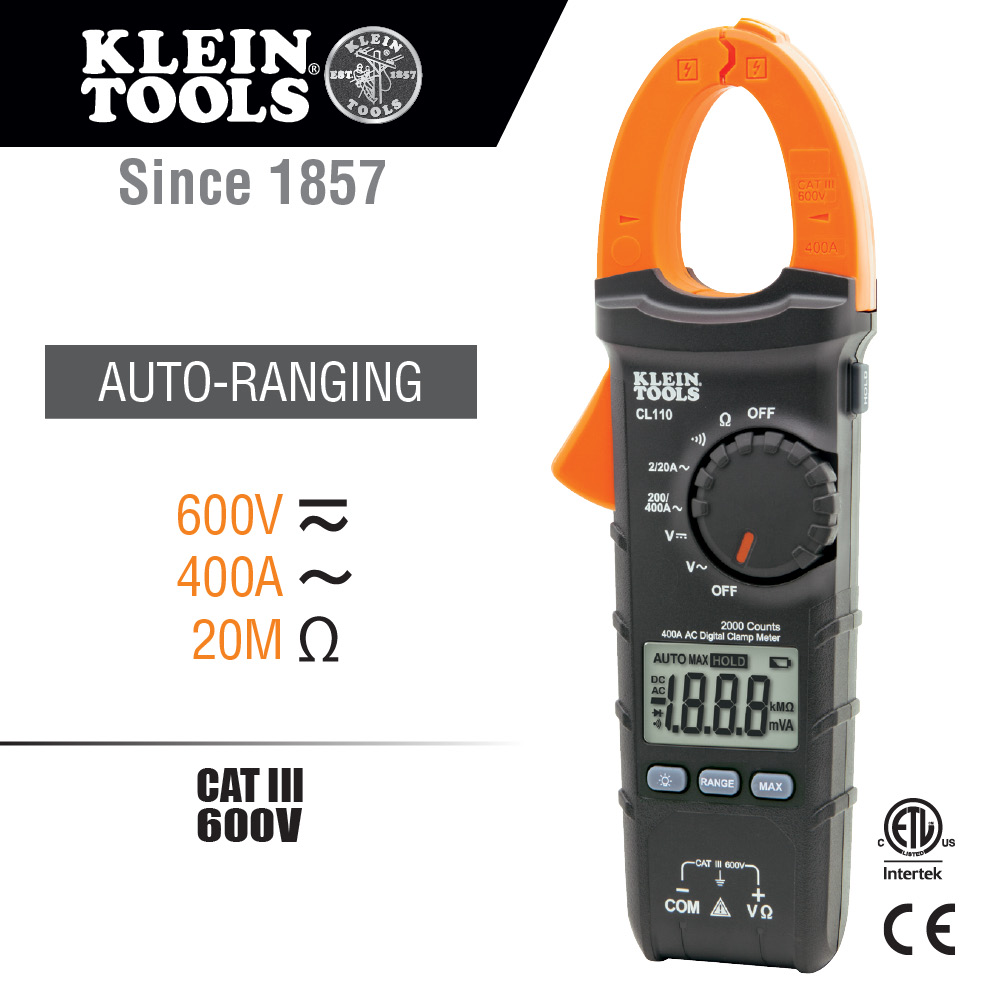

Digital Clamp Meter, AC Auto-Ranging 400 Amp

CL110

  • Measures AC current via the clamp and AC/DC voltage, resistance and continuity via test-leads
  • Built to withstand a 3.3-foot (1m) drop
  • CAT III 600V, Class 2, Double insulation safety rating
  • Backlit display for clear readings
  • Powers off automatically after 15 minutes of non-use to conserve battery life

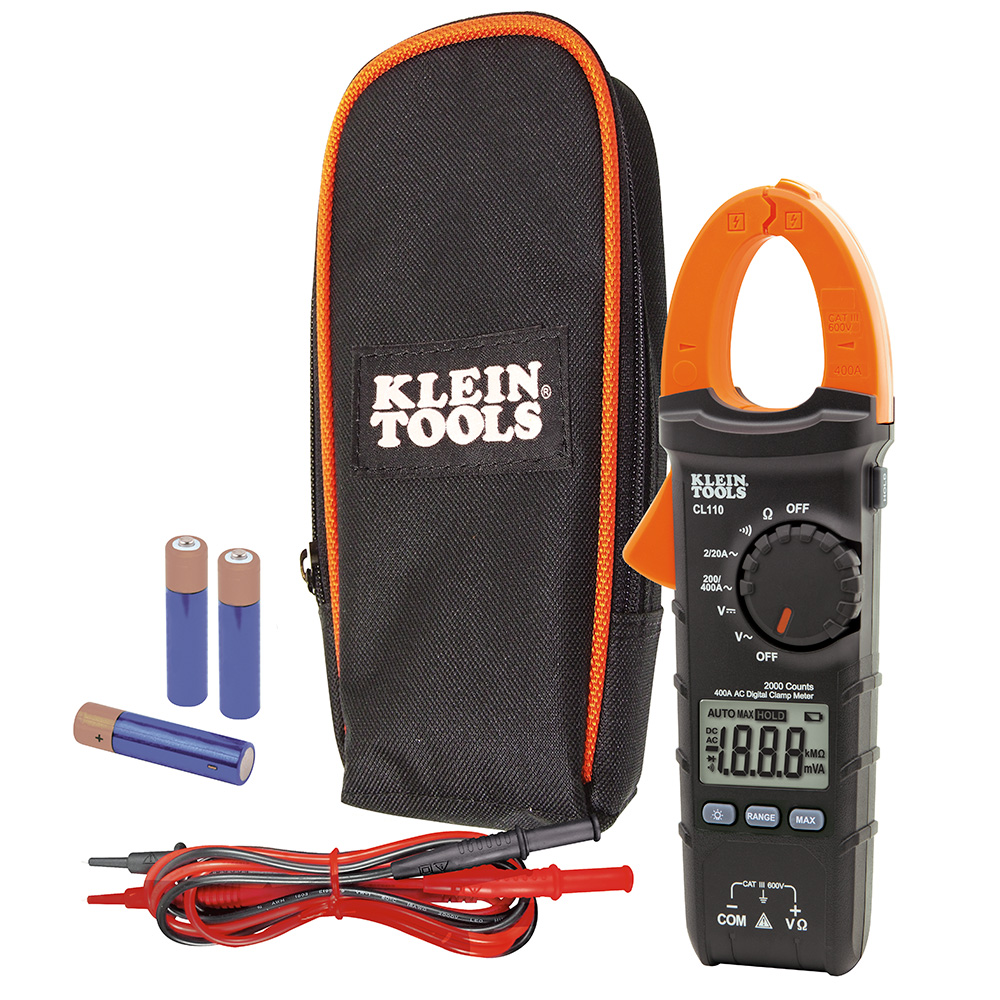

  • Includes a carrying case, test leads and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
  • Operating altitude to 6562-Foot (2000 m)
  • Operating temp: 32-degrees F to 122-degrees F (0-degrees C to 50-degrees C)

数字钳形表，交流自动测距400安培

CL110

  • 通过钳位和交流/直流电压测量交流电流，通过测试引线测量电阻和连续性
  • 可承受3.3英尺（1米）的跌落
  • CAT III 600V，Class 2，双重绝缘安全等级
  • 背光显示屏，清晰读数
  • 15分钟不使用后自动关机以延长电池寿命
  • 包括手提箱，测试导线和3节AAA电池
  • 低电量指示灯和易于使用的电池盒
  • 满足在基础和受控电磁环境（如住宅，办公室和轻工业场所）中使用的要求
  • 运行海拔高度为6562英尺（2000米）
  • 工作温度：32华氏度到122华氏度（0摄氏度到50摄氏度）

Klein Tools CL110 is an automatically ranging digital clamp-meter that measures AC current via the clamp, and AC/DC voltage, resistance and continuity via test-leads. Klein Tools’ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Specifications
Application:
Measures Current, Voltage, Resistance and Continuity
Special Features:
Backlit Display for Clear Readings
Batteries:
3 x AAA
Jaw Size:
1-1/8” (28.6 mm)
Drop Protection:
3.3 ft (1 m)
Display:
2000 Count LCD
Voltage:
600V AC; 600V DC
Current:
400A
Ohms (Resistance):
20MO
Standard:
CAT III 600V; CE Certified
Included:
Carrying Case, 41” (1041.4 mm) Test Leads and Batteries
Overall Length:
8.703” (221.1 mm)
Overall Height:
1.609” (40.9 mm)
Overall Width:
3.016” (76.6 mm)
Weight:
0.63 lb (0.29 kg)
UPC:
092644690570
WARNINGS
  • Do not attempt to measure resistance or continuity on live circuits..
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.

Klein Tools CL110是一款自动量程数字钳形表，可通过钳位测量交流电流，通过测试引线测量交流/直流电压，电阻和连续性。Klein Tools的测试和测量产品系列由电工为电工设计。多年的实地研究，加上美国各地电工的广泛投入，激发了仪表和电气测试仪的发展，这些测试仪具有创新，省时的特性。

产品规格
应用：
测量电流，电压，电阻和连续性
特殊功能：
背光显示清晰读数
电池：
3 x AAA
颚尺寸：
1-1 / 8”（28.6 mm）
掉落保护：
3.3英尺（1米）
显示：
2000计数LCD
电压：
600V AC;?600V DC
当前：
400A
欧姆（阻力）：
20MO
标准：
CAT III 600V;?CE认证
包括：
便携箱，41英寸（1041.4毫米）测试引线和电池
总长度：
8.703”（221.1 mm）
总体高度：
1.609”（40.9 mm）
总宽度：
3.016”（76.6 mm）
重量：
0.63磅（0.29千克）
UPC：
092644690570
警告
  • 不要试图测量带电电路的电阻或连续性。
  • 在每次使用之前，请阅读，理解并遵守所有测试和测量设备附带和/或包装的所有说明，注意事项和警告。
  • 在每次使用之前，通过测量已知电压或电流来验证仪表操作。
  • 在暴风雨或潮湿天气期间请勿使用仪表，如果仪表或测试导线看起来已损坏，请勿使用。
