自动电容器组BATM
LIFASA自动电容器组用于低压安装中的功率因数的集中补偿。
这些设备提供完全组装并随时可用：只需将电缆连接到具有足够横截面的电缆，并从适当的电流互感器提供操作信号。墙壁安装设备。POLIMET电容器。
附件：??主开关或断路器Qn> 40kvar /??440VH≥700mm;?漏电保护
Automatic capacitor banks BATM
LIFASA automatic capacitor banks are used for centralized compensation of power factor in low voltage installations.
These equipments are supplied completely assembled and ready for use: it is only necessary to connect it to the mains with cables of adequate cross section, and to supply the operation signal from suitable current transformer. Wall mounting equipment. POLIMET capacitors.
Accessories:?Main switch or circuit breaker Qn>40kvar/440V?H≥700mm; Leakage protection
| 额定电压 | 440 V 50 Hz – 60 Hz |
| 调节器 | MCE ADV |
| 工作计划 | 5个选项 |
| 电容器 | POLB 440 V. |
| 步骤保护 | 磁热/ MCB |
| 防护等级 | IP31 |
| 颜色 | Gris RAL 7035 |
| 电缆入口 | 底部 |
| 安装 | 室内 |
| 部件 | 壁挂式安装 |
| 辅助。电压230V | 自耦变压器 |
| 断路器 | UpQn = 40 kvar（…… I） |
| 外部TI | / 5A（不包括在内） |
根据要求提供其他功率，电压和频率。
| Rated voltages | 440 V 50 Hz – 60 Hz |
| Controller | MCE ADV |
| Working program | 5 options |
| Capacitors | POLB 440 V |
| Steps protection | Magnetothermic / MCB |
| Degree of protection | IP31 |
| Colour | Gris RAL 7035 |
| Cables entry | Bottom |
| Installation | Indoor |
| Assembly | Wall mounting |
| Aux. voltage 230V | Autotransformer |
| Circuit breaker | UpQn=40 kvar (…I) |
| External TI | /5A (not included) |
Other powers, voltages and frequencies on request.

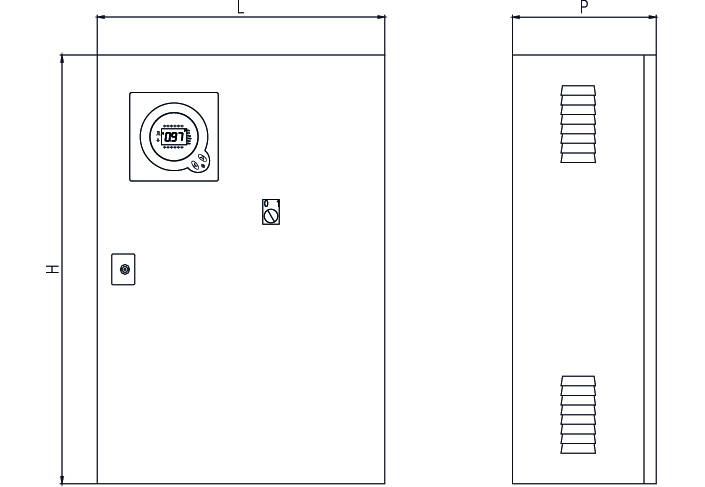

| Dimensions Cabinet (HxWxD): 500x400x260 mm | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Part number | Qn(kvar) 440V | Composition | Steps | Program | Qn(kvar) 400V | Weight(kg) |
| BATM0844050I | 5 | 2×1,25+2,5 | 4×1,25 | 37257 | 4,1 | 18 |
| BATM0844087I | 8,75 | 1,25+2,5+5 | 7×1,25 | 38018 | 7,2 | 18 |
| BATM0844125I | 12,5 | 1×2,5+2×5 | 5×2,5 | 37288 | 10,3 | 18 |
| BATM0844175I | 17,5 | 2,5+5+10 | 7×2,5 | 38018 | 14,5 | 19 |
| BATM0844200I | 20 | 2×5+1×10 | 4×5 | 37257 | 16,5 | 19 |
| BATM0844250I | 25 | 5+2×10 | 5×5 | 37288 | 20,6 | 20 |
| BATM0844275I | 27,5 | 2,5+5+2×10 | 11×2,5 | 38018 | 22,7 | 20 |
| BATM0844312I | 31,25 | 6,25+2×12,5 | 5×6,25 | 37288 | 25,8 | 20 |
| BATM0844350BI | 35 | 5+3×10 | 7×5 | 37288 | 29 | 22 |
| BATM0844375BI | 37,5 | 2,5+5+3×10 | 15×2,5 | 38018 | 31 | 23 |
| BATM0844400BI | 40 | 5+5+3×10 | 8×10 | 37257 | 33 | 23 |
| BATM0844437BI | 43.75 | 6.25+3×12.5 | 7×6.25 | 1.2.2 | 36 | 30 |
| ? | ? | ? | ? | ? | ? | ? |
| ? | ? | ? | ? | ? | ? | ? |
| ? | ? | ? | ? | ? | ? | ? |
| Dimensions Cabinet (HxWxD): 700x500x250 mm | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Part number | Qn(kvar) 440V | Composition | Steps | Program | Qn(kvar) 400V | Weight(kg) |
| BATM0844500 | 50 | 10+2×20 | 5×10 | 1.2.2 | 41.3 | 32 |
| BATM0844550 | 55 | 5+10+2×20 | 11×5 | 1.2.4 | 45 | 35 |
| BATM0844625 | 62.5 | 12.5+2×25 | 5×12.5 | 1.2.2 | 51.7 | 37 |
| BATM0844687 | 68.75 | 6.25+12.5+2×25 | 11×6.25 | 1.2.4 | 56.8 | 38 |
| BATM0844700 | 70 | 10+3×20 | 7×10 | 1.2.2 | 58 | 38 |
| BATM0844750 | 75 | 5+10+3×20 | 15×5 | 1.2.4 | 62 | 39 |
| BATM0844800B | 80 | 2×10+3×20 | 8×10 | 1.1.2 | 66 | 39 |
| BATM0844937 | 93.75 | 6.25+12.5+3×25 | 15×6.25 | 1.2.4 | 77.5 | 40 |
| BATM08441000B | 100 | 2×12.5+3×25 | 8×12.5 | 1.1.2 | 82.5 | 40 |
| BATM08441050 | 105 | 15+3×30 | 7×15 | 1.2.2 | 87 | 41 |
| BATM08441125 | 112.5 | 7.5+15+3×30 | 15×7.5 | 1.2.4 | 93 | 41 |
| ? | ? | ? | ? | ? | ? | ? |
| ? | ? | ? | ? | ? | ? | ? |
| ? | ? | ? | ? | ? | ? | ? |
| Dimensions Cabinet (HxWxD): 800x500x260 mm | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Part number | Qn(kvar) 440V | Composition | Steps | Program | Qn(kvar) 400V | Weight(kg) |
| BATM1844118I | 118.75 | 6.25+12.50+4×25 | 19×6.25 | 1.2.4 | 98 | 80 |
| BATM1844125I | 125 | 12.5+12.5+4×25 | 18×12.5 | 1.2.4 | 103 | 81 |
| BATM1844137I | 137.5 | 12.5+5×25 | 11×12.5 | 1.2.2 | 114 | 83 |
| BATM1844142I | 142.5 | 7.5+15+4×30 | 19×7.5 | 1.2.4 | 118 | 84 |
| BATM1844150I | 150 | 15+15+4×30 | 10×15 | 1.1.2 | 124 | 85 |
| BATM1844165I | 165 | 15+5×30 | 11×15 | 1.2.2 | 136 | 86 |
| BATM1844165I | 180 | 6×30 | 6×30 | 1.1.1 | 149 | 87 |
