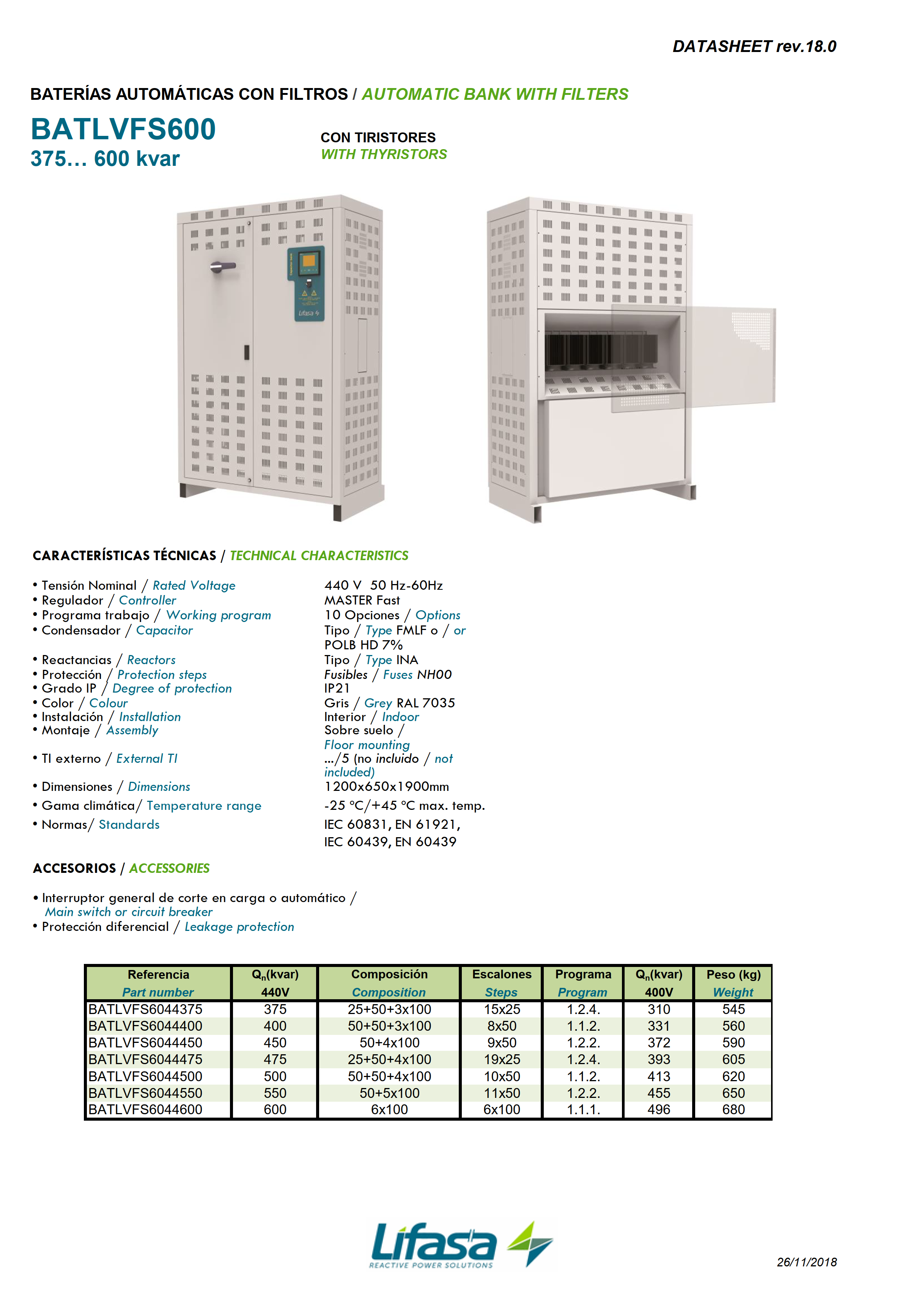

| Rated voltages | 440 V 50 Hz – 60 Hz |
| Controller | PFCL Fast |
| Working program | 10 options |
| Capacitors | Type FMLF o POLB HD 7% |
| Reactors | Type INA |
| Protection steps | Fuses NH00 |
| Degree of protection | IP21 |
| Colour | Grey RAL 7035 |
| Installation | Indoor |
| Assembly | Floor mounting |
| External TI | /5 (not included) |
| Dimensiones | 1200x650x1900mm |
Other powers, voltages and frequencies on request.
| Part number | Qn(kvar) 440V | Composition | Steps | Program | Qn(kvar) 400V | Weight(kg) |
| BATLVFS6044375 | 375 | 25+50+3×100 | 15×25 | 1.2.4. | 310 | 545 |
| BATLVFS6044400 | 400 | 50+50+3×100 | 8×50 | 1.1.2. | 331 | 560 |
| BATLVFS6044450 | 450 | 50+4×100 | 9×50 | 1.2.2. | 372 | 590 |
| BATLVFS6044475 | 475 | 25+50+4×100 | 19×25 | 1.2.4. | 393 | 605 |
| BATLVFS6044500 | 500 | 50+50+4×100 | 10×50 | 1.1.2. | 413 | 620 |
| BATLVFS6044550 | 550 | 50+5×100 | 11×50 | 1.2.2. | 455 | 650 |
| BATLVFS6044600 | 600 | 6×100 | 6×100 | 1.1.1. | 496 | 680 |
