带滤波器的自动电容器组，带晶闸管BATLVFS1200
配件：主开关或断路器;?漏电保护。

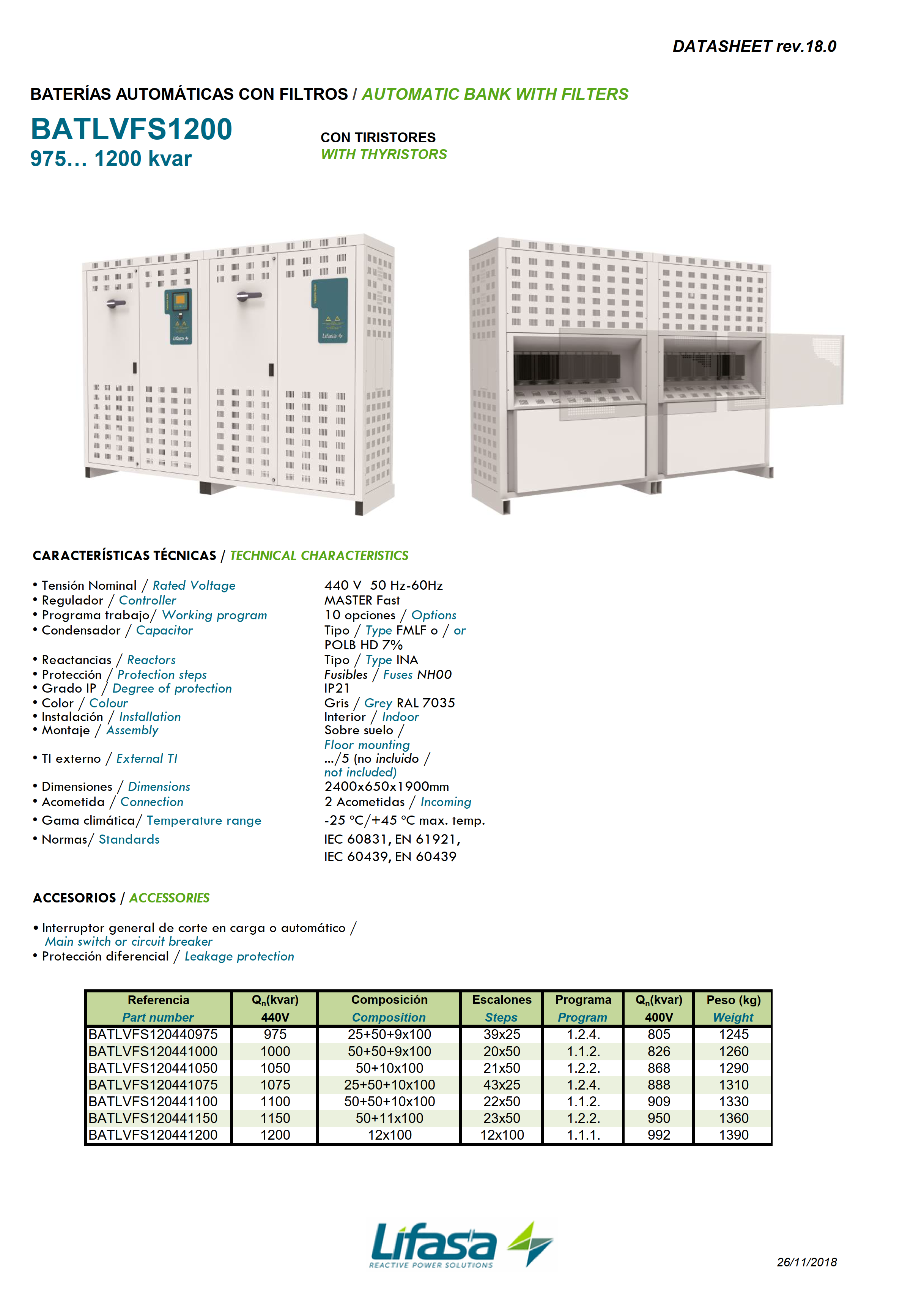

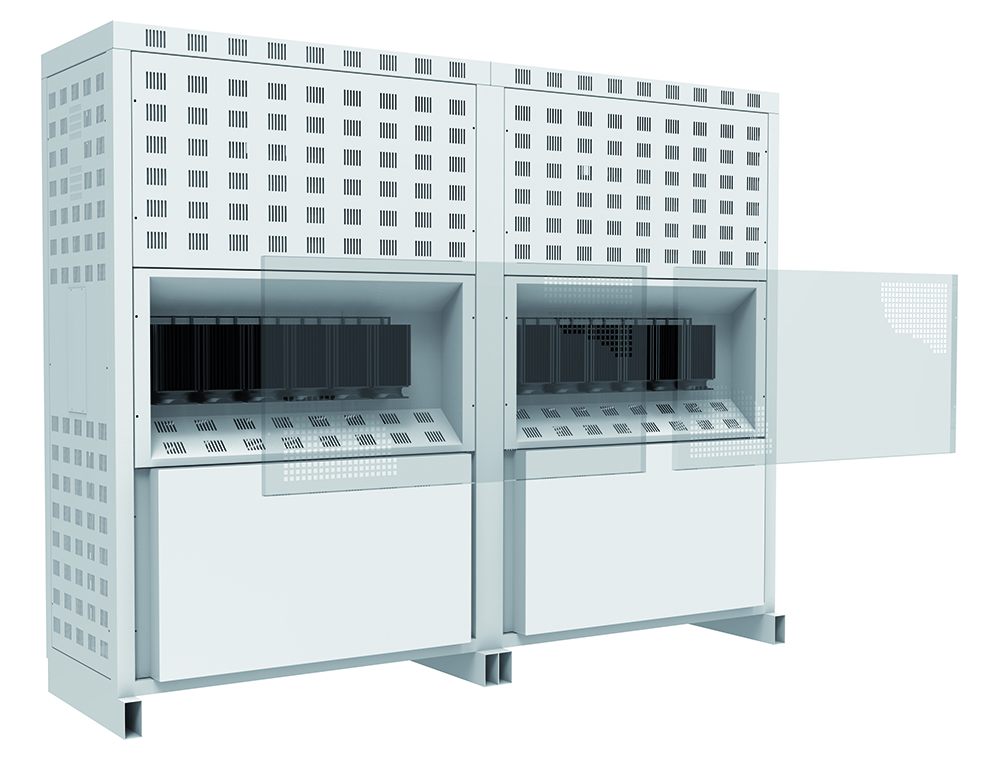

Automatic capacitor banks with filters with thyristors BATLVFS1200
Accessories: Main switch or Circuit breaker; Leakage protection.
| 额定电压 | 440 V 50 Hz – 60 Hz |
| 调节器 | PFCL快 |
| 工作计划 | 10个选项 |
| 电容器 | 输入FMLF或POLB HD 7％ |
| 反应堆 | 输入INA |
| 保护步骤 | 保险丝NH00 |
| 防护等级 | IP21 |
| 颜色 | 灰色RAL 7035 |
| 安装 | 室内 |
| 部件 | 地板安装 |
| 外部TI | / 5（不包括在内） |
| 外形尺寸 | 2400x650x1900mm |
| 连接 | 2进线 |
根据要求提供其他功率，电压和频率。
| Rated voltages | 440 V 50 Hz – 60 Hz |
| Controller | PFCL Fast |
| Working program | 10 options |
| Capacitors | Type FMLF or POLB HD 7% |
| Reactors | Type INA |
| Protection steps | Fuses NH00 |
| Degree of protection | IP21 |
| Colour | Grey RAL 7035 |
| Installation | Indoor |
| Assembly | Floor mounting |
| External TI | /5 (not included) |
| Dimensions | 2400x650x1900mm |
| Connection | 2 incoming |
Other powers, voltages and frequencies on request.
| Part number | Qn(kvar) 440V | Composition | Steps | Program | Qn(kvar) 400V | Weight(kg) |
| BATLVFS120440975 | 975 | 25+50+9×100 | 39×25 | 1.2.4. | 805 | 1245 |
| BATLVFS120441000 | 1000 | 50+50+9×100 | 20×50 | 1.1.2. | 826 | 1260 |
| BATLVFS120441050 | 1050 | 50+10×100 | 21×50 | 1.2.2. | 868 | 1290 |
| BATLVFS120441075 | 1075 | 25+50+10×100 | 43×25 | 1.2.4. | 888 | 1310 |
| BATLVFS120441100 | 1100 | 50+50+10×100 | 22×50 | 1.1.2. | 909 | 1330 |
| BATLVFS120441150 | 1150 | 50+11×100 | 23×50 | 1.2.2. | 950 | 1360 |
| BATLVFS120441200 | 1200 | 12×100 | 12×100 | 1.1.1. | 992 | 1390 |
