| 额定电压 | 440 V 50 Hz – 60 Hz |
| 调节器 | MCE ADV |
| 工作计划 | 5个选项 |
| 电容器 | 输入FML |
| 保护步骤 | 保险丝NH00 |
| 防护等级 | IP21 |
| 颜色 | 灰色RAL 7035 |
| 安装 | 室内 |
| 部件 | 地板安装 |
| 外部TI | / 5A（不包括在内） |
| 外形尺寸 | 1850x460x1900mm |
| 连接 | 2进线 |
根据要求提供其他功率，电压和频率。
| Rated voltages | 440 V 50 Hz – 60 Hz |
| Controller | MCE ADV |
| Working program | 5 options |
| Capacitors | Type FML |
| Protection steps | Fuses NH00 |
| Degree of protection | IP21 |
| Colour | Grey RAL 7035 |
| Installation | Indoor |
| Assembly | Floor mounting |
| External TI | /5A (not included) |

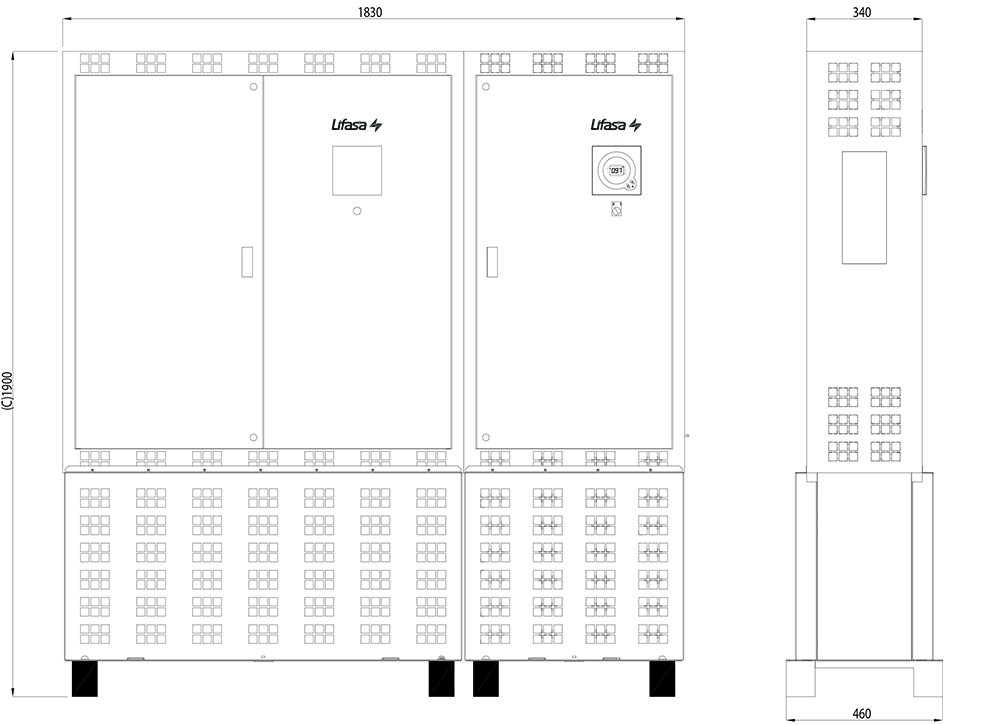

| Dimensions | 1850x460x1900mm |
| Connection | 2 incoming |
Other powers, voltages and frequencies on request.
| Part number | Qn(kvar)440V | Composition | Steps | Program | Qn(kvar)400V | Weight(kg) |
| BATLV120440775 | 775 | 25+50+7×100 | 31×25 | 1.2.4. | 640 | 440 |
| BATLV120440800 | 800 | 50+50+7×100 | 16×50 | 1.1.2. | 661 | 440 |
| BATLV120440850 | 850 | 50+8×100 | 17×50 | 1.2.2. | 702 | 440 |
| BATLV120440875 | 875 | 25+50+8×100 | 35×25 | 1.2.4. | 723 | 445 |
| BATLV120440900 | 900 | 50+50+8×100 | 18×50 | 1.1.2. | 744 | 450 |
| BATLV120440950 | 950 | 50+9×100 | 19×50 | 1.2.2. | 785 | 450 |
| BATLV120440975 | 975 | 25+50+9×100 | 39×25 | 1.2.4. | 806 | 455 |
| BATLV120441000 | 1000 | 50+50+9×100 | 20×50 | 1.1.2. | 826 | 455 |
| BATLV120441050 | 1050 | 50+10×100 | 21×50 | 1.2.2. | 868 | 455 |
| BATLV120441075 | 1075 | 25+50+10×100 | 43×25 | 1.2.4. | 888 | 460 |
| BATLV120441100 | 1100 | 50+50+10×100 | 22×50 | 1.1.2. | 909 | 460 |
| BATLV120441150 | 1150 | 50+11×100 | 23×50 | 1.2.2. | 950 | 460 |
| BATLV120441200 | 1200 | 12×100 | 12×100 | 1.1.1. | 992 | 460 |
