AMS MAXI
适用于大型困难电缆绝缘
应用范围：
?> 45 mm
绝缘厚度：
0 – 5 mm
建议应用：
PVC /橡胶/聚乙烯
AMS MAXI
For Large Difficult Cable Insulation
Application range:
? > 45 mm
Insulation thickness:
0 – 5 mm
Suggested application:
PVC / Rubber / Polyethylene
技术特征
?设计用于剥离LV，MV和HV电缆的外护套
?纵向和圆形切口
?设计用于剥离两端和中跨
?剥离而不切割下面的内容
?可互换的双面刀片
不会损坏下面的表面
持久精确的可互换双面刀片
适用于大型困难电缆绝缘
| 描述 | 订单号。 | 外形尺寸 | 重量 |
|---|---|---|---|
| 套装：AMS MAXI | AV6240 | 250 x 150 x 90毫米 | 800克 |
| 备用刀片 | AV6299 |
注意：不适合在电压下工作
设备
- 电缆剥线器AMS MAXI
- 柔软的尼龙外壳和使用说明
Technical Characteristics
? Designed to strip outer sheath from LV, MV and HV cables
? Longitudinal and circular cuts
? Designed to strip both ends and midspan
? Stripping without cutting what is below
? Interchangeable two-sided blade
No damaging of below surface
Long lasting precise interchangeable two sided blade
Suitable to work on large difficult cables insulation
| Description | Order No. | Dimensions | Weight |
|---|---|---|---|
| Set: AMS MAXI | AV6240 | 250?x?150 x?90 mm | 800 g |
| Spare blade | AV6299 |
Attention: not suitable for work under voltage
SET Equipment
- Cable stripper AMS MAXI

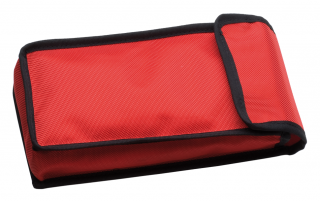

- Soft nylon case and instructions for use
