Straight Hand Seamer, 3-Inch

86522

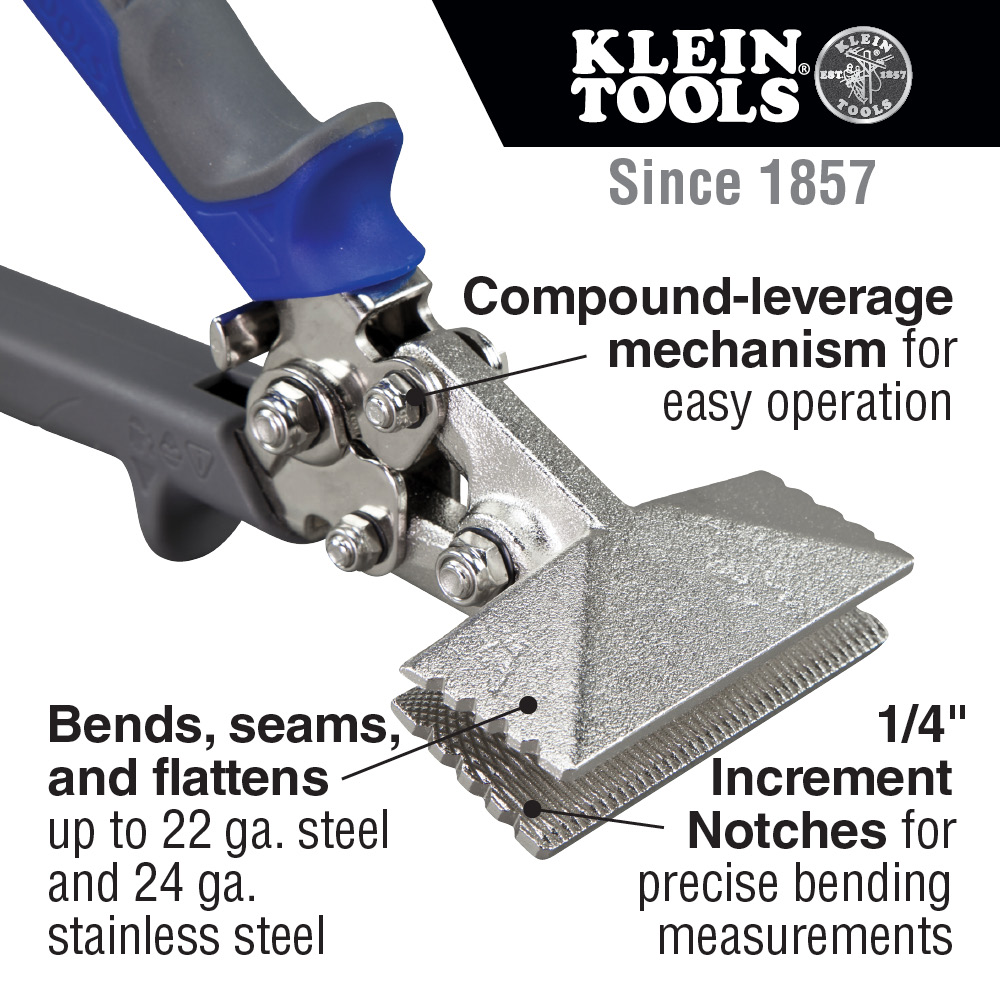

  • Compound-leverage mechanism easily and accurately bends, seams, and flattens sheet metal
  • 3-inch jaw folds 22 gauge steel and 24 gauge stainless steel
  • Jaw marked in 1/4-inch (6 mm) increments for precise bending measurements
  • All-steel construction and nickel-chrome plated hardware for long life and durability
  • Convenient self-opening latch for one handed operation
  • Quality tool for HVAC professionals provides superior results
  • Comfortable, contoured grips cover hardened steel handles

直式缝纫机，3英寸

86522

  • 复合杠杆机制可以轻松准确地弯曲，接缝和压平金属板
  • 3英寸钳口折叠22号钢和24号不锈钢
  • Jaw以1/4英寸（6 mm）的增量标记，以进行精确的弯曲测量
  • 全钢结构和镀镍铬合金硬件，使用寿命长，经久耐用
  • 方便的自动开启闩锁，适用于单手操作
  • HVAC人员的工具可提供很好的效果
  • 舒适的轮廓夹具覆盖硬化钢手柄

The Klein Tools Straight Hand Seamer makes working with sheet metal easy with the compound-leverage mechanism and convenient self-opening latch. The 3 inch steel jaw is notched in 1/4 inch increments for accurate bending measurements. Comfortable, contoured grips cover durable, all-steel construction for long life and durability.

Specifications
Type:
Straight
Application:
Sheet Metal and Non-ferrous Metals
Special Features:
Self-opening Latch, Jaw Notched with 1/4-Inch Increments
Overall Length:
8.6” (219.1 mm)
Overall Height:
0.9” (22.4 mm)
Overall Width:
3.5” (88.9 mm)
Material:
Steel
Jaw Size:
3” (76.2 mm)
Handle Color:
Blue/Gray
Bends:
Up to 22 Gauge Steel and 24 Gauge Stainless Steel
Weight:
1.5 lb (0.7 kg)
UPC:
092644690860
WARNINGS
  • Always wear approved eye protection.
  • Never use on or near live electrical circuits.
  • NOT insulated. Will NOT protect against electrical shock.

Klein Tools Straight Hand Seamer采用复合杠杆机制和方便的自开锁扣，可轻松处理金属板。3英寸钢爪以1/4英寸的增量切口，以进行精确的弯曲测量。舒适的轮廓夹具覆盖耐用的全钢结构，使用寿命长，经久耐用。

产品规格
类型：
直行
应用：
钣金和有色金属
特殊功能：
自动开启闩锁，下颚有1/4英寸增量
总长度：
8.6英寸（219.1毫米）
总体高度：
0.9英寸（22.4毫米）
总宽度：
3.5英寸（88.9毫米）
材料：
钢
颚尺寸：
3”（76.2 mm）
处理颜色：
蓝/灰
弯头：
最多22个Gauge Steel和24 Gauge不锈钢
重量：
1.5磅（0.7千克）
UPC：
092644690860
警告
  • 始终佩戴认可的护目镜。
  • 切勿在带电电路上或附近使用。
  • 没有绝缘。不会防止电击。
