40800和40900 HSBL数码冲孔机DigiPunch 160

HSBL DigiPunch 160 Ref.No. 40800 & 40900

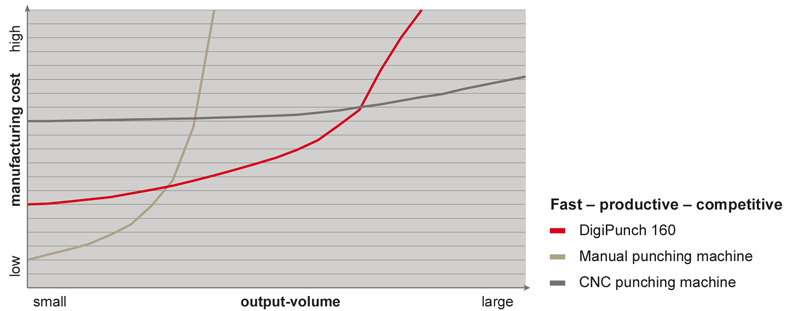

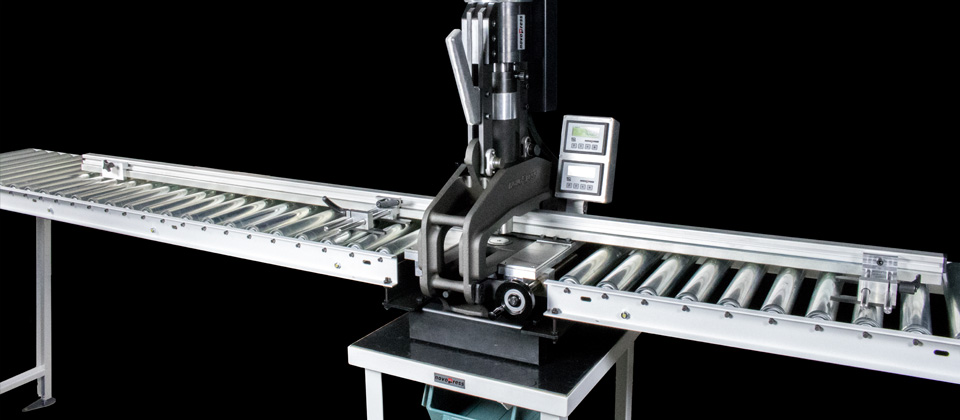

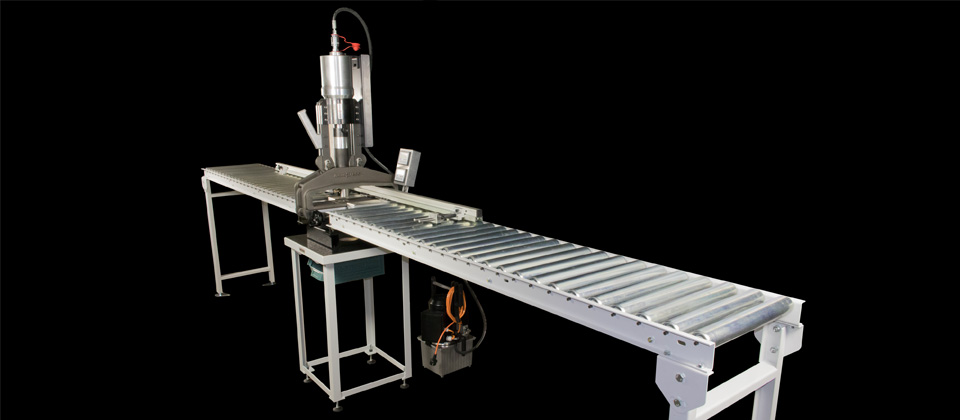

With the DigiPunch 160, Novopress offers a new class of busbar punching performance for medium-sized enterprises. Wherever manual punches are insufficient and CNC-controlled machines are to costly, the DigiPunch 160 is the ideal mid-size solution. It reduces manufacturing time and cost significantly, at a very modest investment compared to CNC-punches. The very practical configuration with digital metering in X/Y axis and complete conveyors, enables a very efficient and flexible busbar manufacturing.

All necessary components except power pack and work cylinder are included in delivery. The LCD measuring system works on a permanent battery basis.

New progressive punching dies

Also the punching dies are new designed and further reduce manufacturing cost. Punch and die are interchangeable by quick lock mechanism within 20 sec. The solid die-holder enables progressive punching for oblong and slotted wholes. Switching from absolute to chain measurement, offers fast progressive punching without extra calculating. Last but not least we offer a large assortment of punching dies, especially matched with the needs of the electrical industry.
