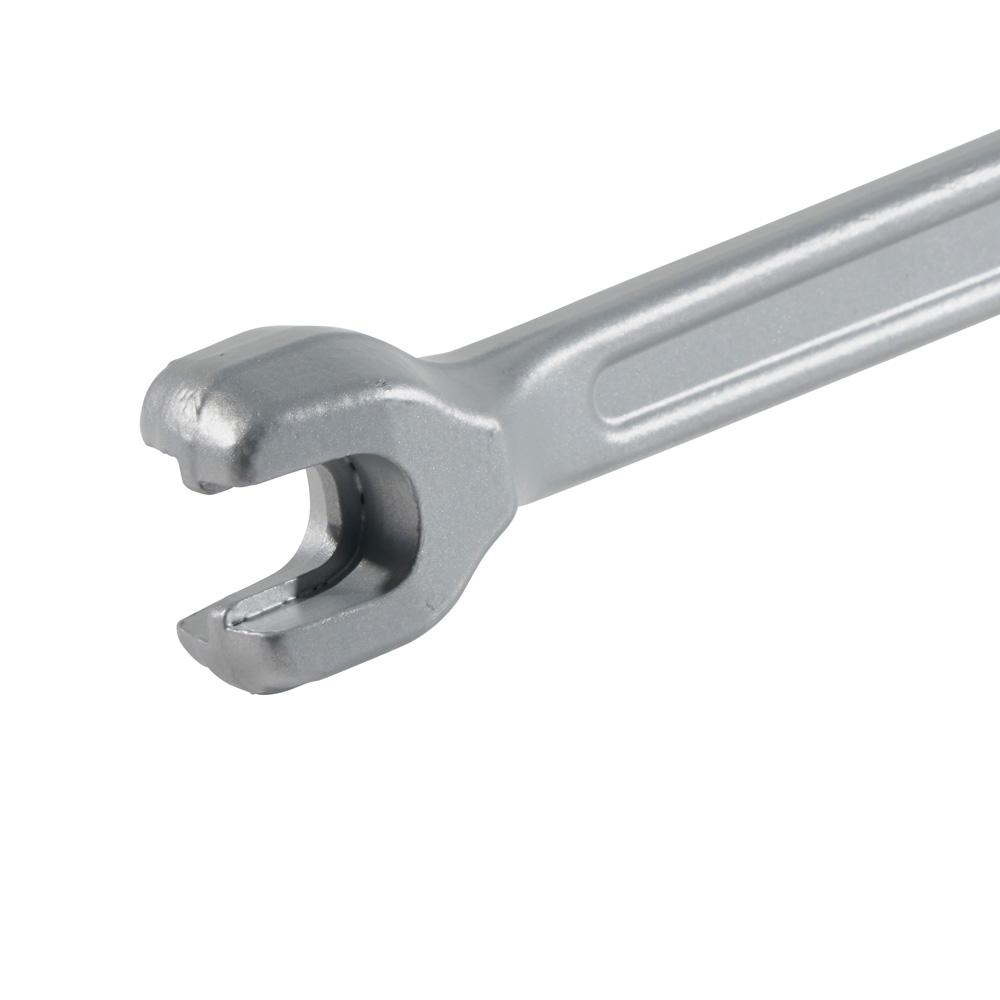

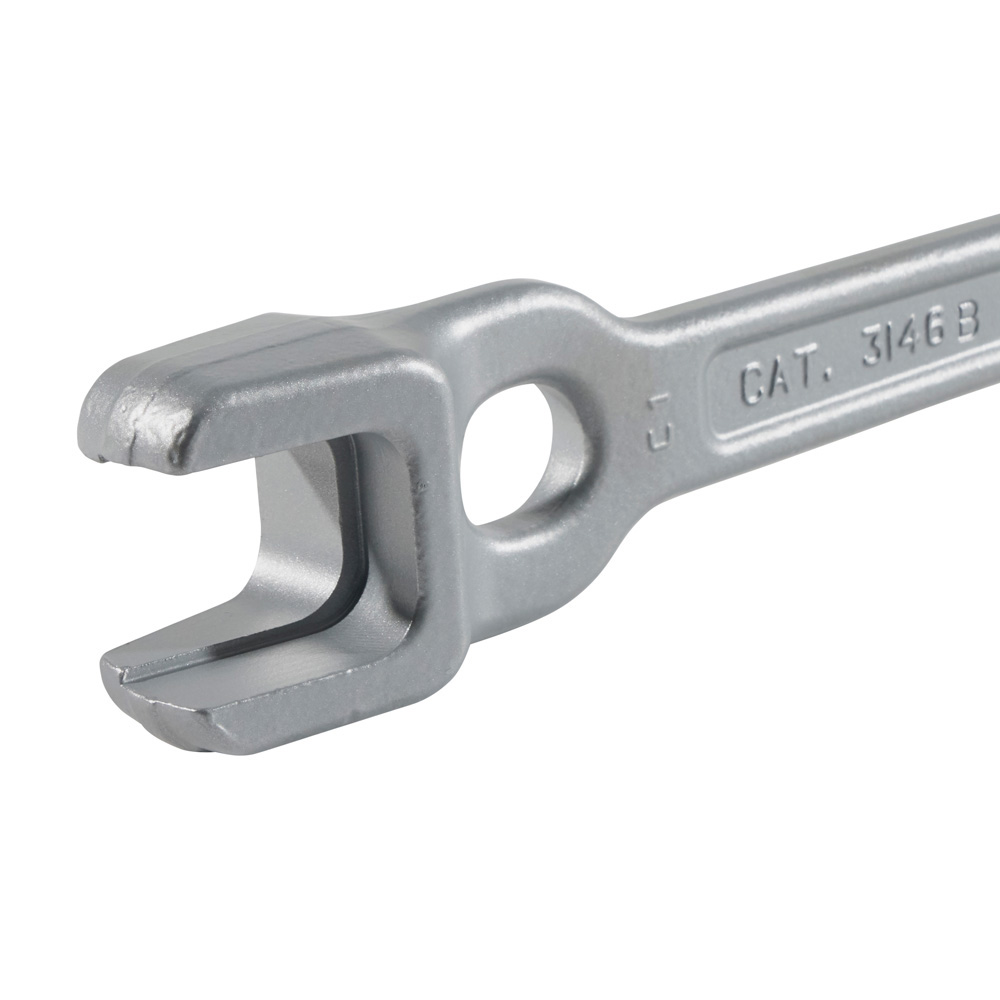

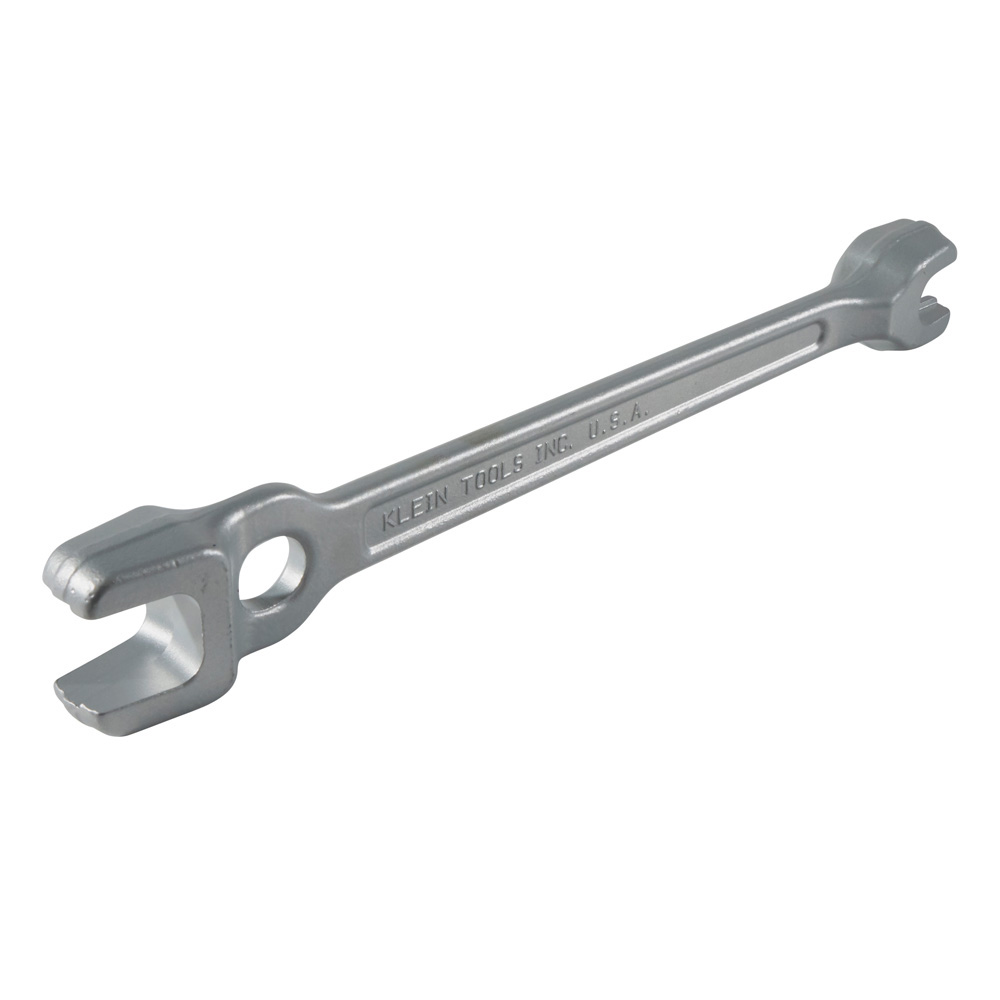

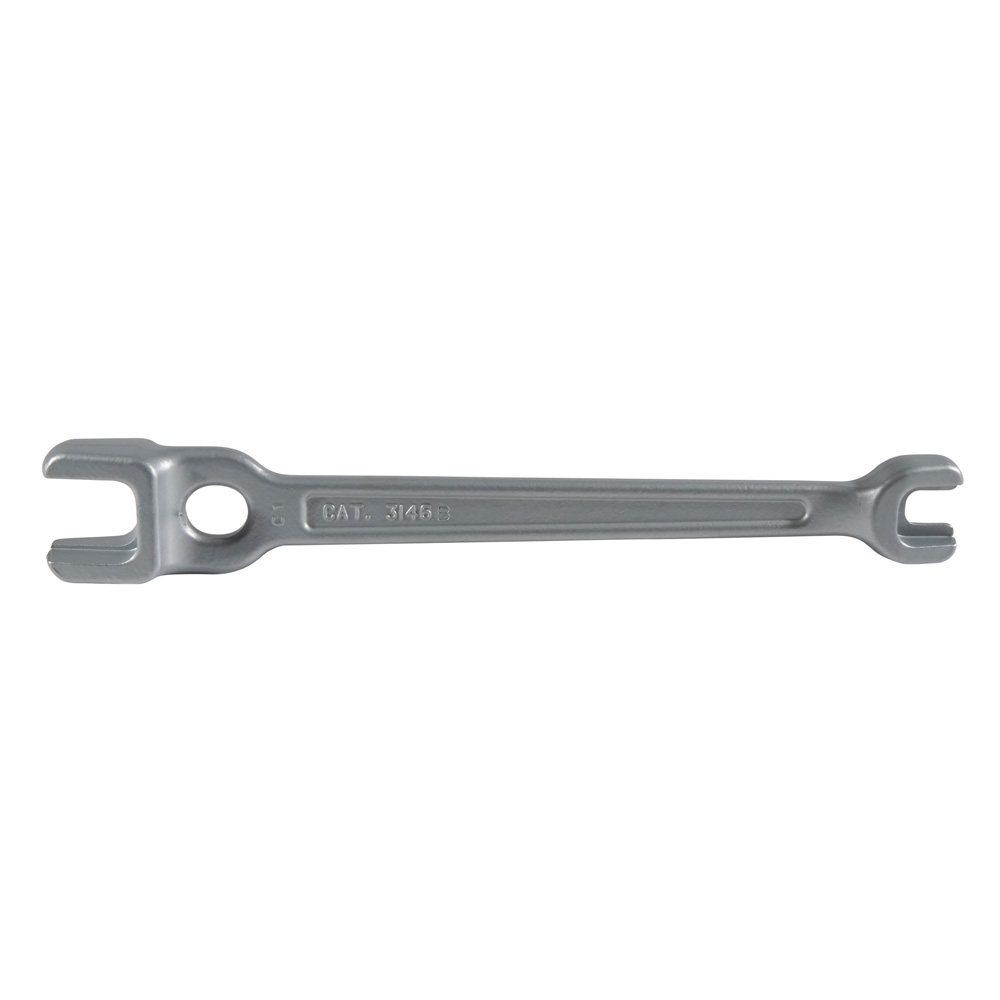

Bell System Type Wrench

3146B

  • Similar to standard lineman’s wrench, but with end openings sized to NEMA hardware specifications
  • Silver painted finish
  • Large end has 1-1/16-Inch and 1-3/16-Inch openings
  • Small end has 11/16-Inch and 7/8-Inch openings
  • Made in the USA

贝尔系统型扳手

3146B

  • 与标准的直线扳手相似，但端部开口的尺寸符合NEMA硬件规格
  • 银色漆面
  • 大端有1-1 / 16英寸和1-3 / 16英寸开口
  • 小端有11/16英寸和7/8英寸开口
  • 美国制造

The Klein Tools Bell System Type Wrench is similar to a standard lineman’s wrench, but it’s designed for telecom and datacom work applications. Its openings are sized to NEMA hardware specifications. It’s also forged and heat-treated for long life.

Specifications
Type:
Bell System
Application:
Bell System Type
Color:
Silver
Large Size:
1-1/16” and 1-3/16”
Small Size:
11/16” and 7/8”
Overall Length:
13” (330.2 mm)
Weight:
1.8 lb (0.8 kg)
UPC:
092644680045
WARNINGS
  • Always wear approved eye protection.
  • Do NOT push or hammer wrench.
  • Do NOT extend handle length.

Klein Tools Bell系统型扳手类似于标准的线性扳手，为电信和数据通信工作应用而设计。其开口尺寸符合NEMA硬件规格。它也经过锻造和热处理，使用寿命长。

产品规格
类型：
贝尔系统
应用：
贝尔系统类型
颜色：
银
大尺寸：
1-1 / 16”和1-3 / 16”
小尺寸：
11/16”和7/8”
总长度：
13”（330.2 mm）
重量：
1.8磅（0.8千克）
UPC：
092644680045
警告
  • 始终佩戴认可的护目镜。
  • 不要推或锤扳手。
  • 不要延长手柄长度。
