Chicago GripCoated Guy Wire with Chain

16845CAT

  • 紧凑的锯齿颚型材可防止在绞线和EHS电缆上镀锌涂层积聚
  • 配有链条，肘节和卸扣，以防止抓地力从电缆上脱落
  • 设计用于0.218至0.55英寸（5.54至13.97 mm）的电缆
  • 5英寸（127毫米）钳口长度，用于绞合电缆上的额外夹持区域
  • 弹簧关闭电缆，有助于保持初始位置
  • 锁定手柄保持钳口打开，同时用热棒将电缆夹在电缆上
  • 安全载荷为8000磅（3629千克）

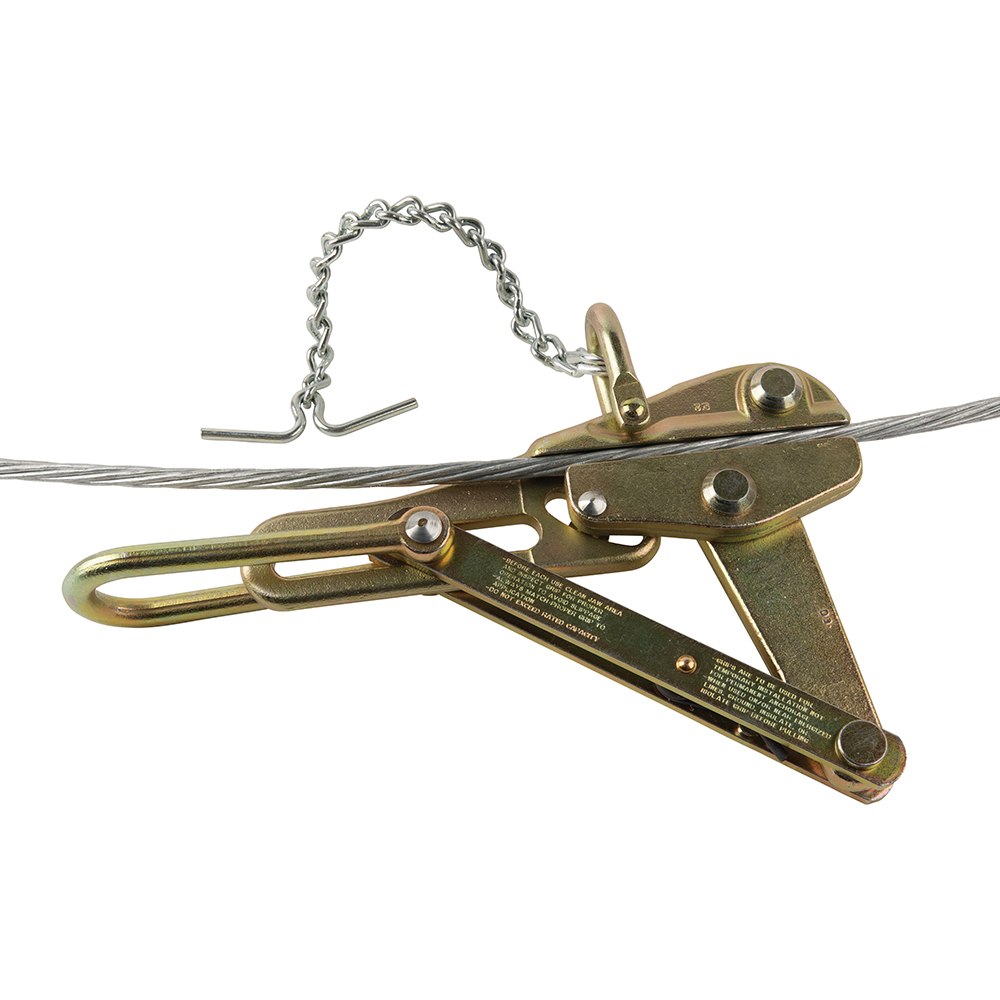

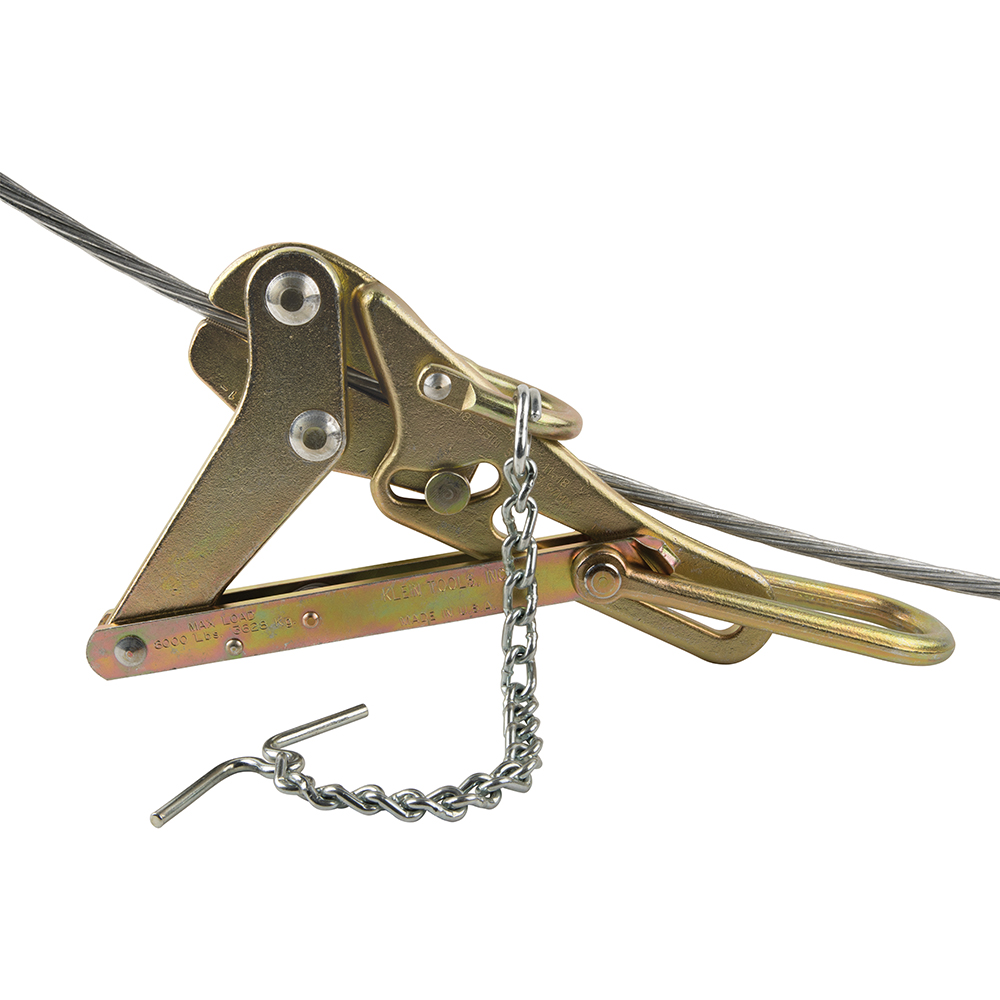

Chicago Grip Coated Guy Wire with Chain

16845CAT

  • Aggressive sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables
  • Equipped with chain, toggle and shackle to keep grip from falling off the cable
  • Designed for cable sizes 0.218 to 0.55-Inch (5.54 to 13.97 mm)
  • 5-Inch (127 mm) jaw length for extra gripping area on stranded cable
  • Spring closes grip on cable helping to maintain initial position
  • Locking handle keeps jaw open while grip is placed on cable with a hot stick
  • Maximum Safe Load is 8000-Pound (3629 kg)

这款Chicago Grip为与涂层拉链和EHS电缆配合使用而设计。Klein手柄采用落锤锻造，钢材制成，并经过热处理，具有强度和耐用性。链条，拨动开关和卸扣使握把不会从电缆上掉下来。5英寸钳口长度增加了与电缆接触的表面积，从而很大限度地减少了电缆损坏。锯齿形颚型材可防止电镀积聚。

产品规格
类型：
芝加哥Grip
应用：
拉线
特殊功能：
Sawtooth Jaw Profile抗拒积聚
总长度：
13.3英寸（337.8毫米）
总体高度：
2.5英寸（63.5毫米）
总宽度：
7.6英寸（193.0毫米）
材料：
合金钢
电缆类型：
飞机，EHS，信使，Guy Strand
电缆直径：
0.218英寸至0.55英寸（5.54至13.97毫米）
颚式：
激进
下颚长度：
5”（127.0 mm）
最大安全载荷：
8000磅（3628千克）
重量：
6.9磅（3.1千克）
UPC：
092644470707
警告
  • 每次使用前，清洁钳口区域并检查手柄是否正确操作以避免滑动。
  • 在拉动时在通电线上/附近使用，接地，绝缘或隔离手柄。
  • 不要超过额定容量。
  • 始终将适当尺寸和类型的手柄与应用相匹配。
  • 握把用于临时安装，而不是用于永久固定。

This Chicago Grip is designed specifically to work with coated guy strand and EHS cable. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability. The chain, toggle and shackle keep the grip from falling off the cable. The 5-Inch jaw length increases the surface area contact with the cable minimizing cable damage. The sawtooth jaw profile resists galvanization build-up.

Specifications
Type:
Chicago Grip
Application:
Wire Pulling
Special Features:
Sawtooth Jaw Profile Resists Build-up
Overall Length:
13.3” (337.8 mm)
Overall Height:
2.5” (63.5 mm)
Overall Width:
7.6” (193.0 mm)
Material:
Alloy Steel
Cable Type:
Aircraft, EHS, Messenger, Guy Strand
Cable Diameter:
0.218” to 0.55” (5.54 to 13.97 mm)
Jaw Type:
Aggressive
Jaw Length:
5” (127.0 mm)
Maximum Safe Load:
8000 lb (3628 kg)
Weight:
6.9 lb (3.1 kg)
UPC:
092644470707
WARNINGS
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
