KARAM Cantilever K-Pod
参考：PN 900
  • KARAM提供K-Pod，提供安全可靠的系统，方便进入密闭空间。K-Pod是提供顶部锚固的理想选择，可以安装在不同的基座上，符合EN 795：2012 A型
  • K-Pod由高度耐腐蚀的不锈钢制成，可在其安装底座上旋转360度，因此可提供多种通道和通道。
  • 特点是K-Pod悬臂的高度可在3个限定点调节，上部高度调节为2.3m，中臂调节为1.9m，臂部调节为1.5m。即使在屋顶高度较小的区域，也可以使用K-Pod。
  • K-Pod可以通过特殊的地板和墙壁安装支架轻松安装在地板和墙壁上，根据需要提供。K-Pod也可以安装在重型车辆的地板上，因此使用起来非常灵活。
  • KARAM Winch PN 801，PN 801（40），PN 817和PN 818可以通过不锈钢紧固件轻松安装到K-Pod上。
  • 检索秋季避雷器块参考?PCGS 30R，PCGS 20R和PCGS 10R也可以安装，以便使用专用的通用安装支架轻松取回并防止用户摔倒;?Ref.PN 900（06），PN 900（11）。

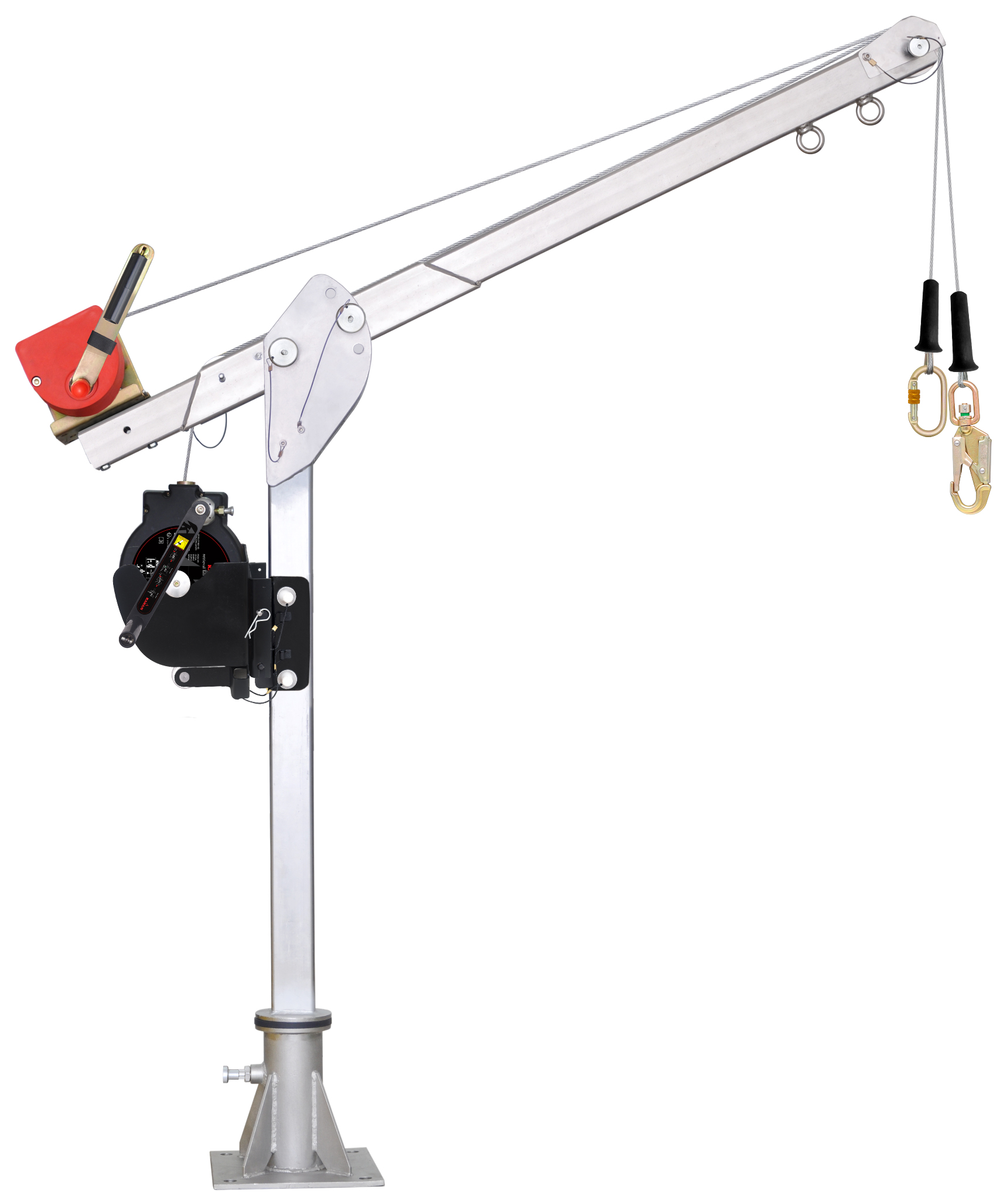

KARAM Cantilever K-Pod
Ref : PN 900
  • KARAM offers K-Pod which provides a safe and sure system for easy access to confined spaces. The K-Pod is an ideal choice to provide overhead anchorage which can be mounted on different bases and it conforms to EN 795 : 2012 Type A
  • The K-Pod is made of highly corrosion resistant stainless steel, and can swivel a complete 360 degrees on its mounted base, hence providing a versatile reach and access.
  • The unique feature is that the height of the Cantilever arm of the K-Pod is adjustable at 3 defined points, with upper height adjustment of 2.3m, middle arm adjustment of 1.9m, and lowered arm adjustment at 1.5m. This enables the use of the K-Pod even in those areas where the roof height is small.
  • The K-Pod can be easily mounted on the floor as well as on the wall through special floor and wall mounting brackets which are made available as per need. The K-Pod can also be mounted on the floor of heavy vehicles, hence making it extremely versatile in use.
  • KARAM Winch PN 801, PN 801(40), PN 817 & PN 818 can be easily mounted on to the K-Pod with the help of stainless steel fasteners.
  • Retrieval Fall Arrester Block Ref. PCGS 30R, PCGS 20R & PCGS 10R can also be installed for easy retrieval & arresting the fall of the user using the specialized universal mounting bracket; Ref.PN 900(06), PN 900(11).
