刚性铝轨道水平锚固线系统
参考：HORIZON PN 5000
该锚固导轨系统旨在为高空作业时的水平运动提供安全锚固。工作人员穿着全身式安全带并使用挂绳（或符合EN 354 / EN 355的其他连接器）连接到手推车的眼睛，手推车沿铝制水平轨道滑行。对于架空应用，自伸缩式避雷器可用于提供有效的防坠落装置。
Horizo??n PN 5000可以使用特殊的安装支架安装在地板，墙壁和天花板上。Wallmounting支架可以沿墙壁表面冲洗。或者，可以使用允许轨道和墙壁之间的凹槽的特殊安装支架，以便不会中断诸如管道和电线之类的下层结构。导轨有直线和弯曲形式（角落和弯曲）。不同长度的导轨之间的特殊固定连接使得手推车的运动非常平稳。
该系统还有一个检查铭牌，用于检查记录的识别，可追溯性和维护。
该系统可用于平屋顶，陡峭屋顶，桅杆和建筑物的工作平台，机库，造船厂，起重机，工业厂房等。

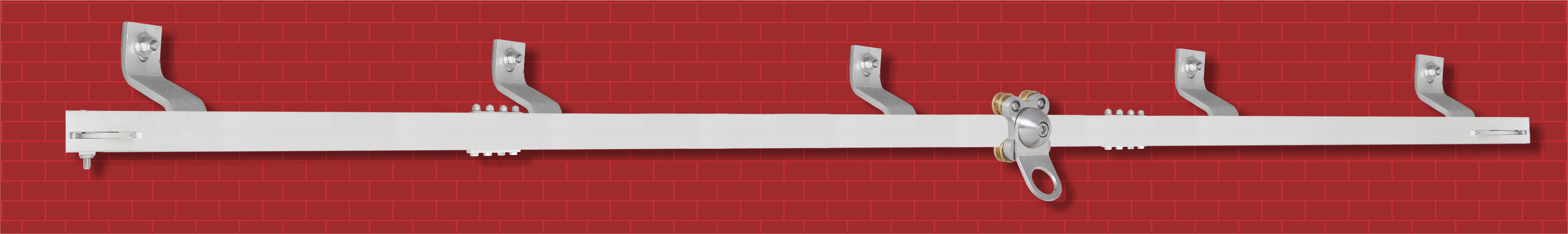

Horizontal Anchorage Line System on Rigid Aluminium Rail
Ref : HORIZON PN 5000
This Anchorage Rail system complies with Type D and is designed to provide safe anchorage for horizontal movement while working at height. The Worker wears a Full body Harness and uses a Lanyard (or other Connector compliant with EN 354/EN 355) to connect to the eye of the Trolley, which glides along the Aluminium horizontal Rail. For overhead applications a Self Retractable Fall Arrester can be used to provide the most effective means of fall protection.
The Horizon PN 5000 can be fitted on to floors, wall and on ceilings using special mounting brackets. The Wallmounting brackets can be flushed along the surface of the wall. Alternately, special mounting brackets which allow a recess between the rail and the wall may be used so as not to interrupt underlying structures like pipes and wires. The rail is available in straight as well as curved forms (for corners and bends). The specially fixed junctions between different lengths of the rail allow an extremely smooth movement of the Trolley.
The system also has an Inspection Name Plate for identification, traceability and maintenance of inspection records.
This system can be used on flat roofs, steep roofs, working platforms on masts and buildings, Hangars, Shipyards, Cranes, Industrial plants etc.
