刚性电缆线垂直锚固线系统
参考：VERTEX PN 7000
垂直防坠落系统是一种集成解决方案，可以防止必须不断爬上爬梯的用户摔倒。
该系统的好处在于该生产线顶部的永久性安装的不锈钢减震器，与KARAM其他生产线中使用的纺织品吸收剂相比，在紫外线降解和抗恶劣气候条件下具有明显的优势。减震器也采用设计，有助于轻松安装系统。
垂直锚固线由不锈钢钢丝绳制成，并通过使用2个安装支架保持在刚性位置 – 一个位于顶部，一个位于底部。
不锈钢绳索抓斗直接连接到用户，无需任何额外的挂绳。
为了保持锚固线的刚性和高张力，在底部的锚固线的末端设置螺旋式机械张紧器，将其连接到下部安装支架。张紧器配有张力指示器，有助于确保适当的张力，并保持在生产线上。
该系统还有一个检查铭牌，安装在梯子的第一个梯级上，用于识别，追溯和维护检查记录。
用于两个梯级的肢体
板用于安装由SS钢丝绳制成的垂直锚绳的四肢钢板安装在带有Ubolts和nylock螺母的梯子上。固定在两个横档上可为系统提供更好的结构强度。

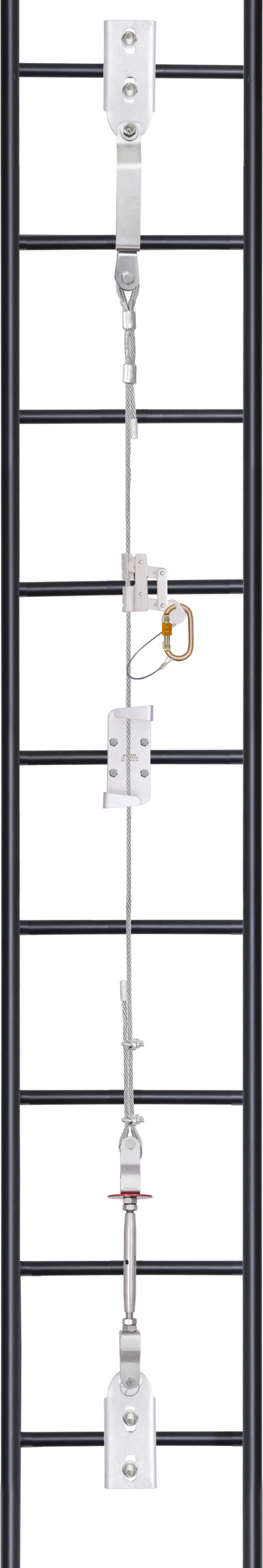

Vertical Anchorage Line System on Rigid Cable Line
Ref : VERTEX PN 7000
Conforming to the Norm EN 353-1:2014 this vertical Fall Arrest system is an integrated solution to arrest the fall of a user who has to constantly climb up & down a ladder.
The Unique Feature of this system is a permanent installed Stainless Steel Shock Absorber at the top of the line which offers distinct advantage over the textile absorber used in other lines in term of UV degradation and resistance to harsh climate
Conditions. Also the Shock Absorber is constructed of unique design that helps in easy installation of the system.
The Vertical Anchorage Line is made of Stainless Steel wire rope & is maintained in the rigid position by the use of 2 mounting brackets-one at the top & one at the bottom.
The Stainless-steel Rope Grab is directly connected to the user without any additional lanyard.
To maintain the rigidity & high tension in the anchorage line, a screw type mechanical tensioner is provided at the end of the anchorage line at the bottom, connecting it to the lower mounting bracket. The Tensioner is provided with a unique tension indicator which helps ensure appropriate tension is attained, and maintained in the line.
The system also has an Inspection Name Plate which is installed on the first rung of the ladder for identification, traceability and maintenance of inspection records.
Extremity Plates for Two Ladder Rungs
Extremity plate used to install a vertical anchor line made of SS wire Rope installed on a ladder with Ubolts & nylock nuts. Fixing on two rungs provides better structural strength to the system.
