柔性钢缆线垂直锚固线系统
参考：VERTEX PN 2001

垂直防坠落系统是一种综合解决方案，可以防止必须不断爬上爬梯的用户摔倒。它由一根由不锈钢钢丝绳制成的垂直锚固线组成，安装在梯子上，顶部使用适当的安装支架。
不锈钢绳索抓斗在锚固线上下移动，伴随着使用小型减震系索连接到绳索抓斗的用户。
为了保持钢丝绳的张力，自重与下端连接。另外，设置在钢丝绳末端的端部夹具安装在梯级上，以将锚固线保持在适当位置。定期提供中间体以防止锚固线由于风压或机械运动而从其平均位置错位。
该系统还有一个检查铭牌，安装在梯子的第一个梯级上，用于识别，追溯和维护检查记录。一根不锈钢电缆用于将系统铭牌固定到结构上。在安装时，通过数字冲头在板上冲压相关细节。在检查和重新验证后，每年在板上打出重新验证日期。

重要特征是：

  • 它安装简单，易于安装，只需最少的安装。
  • 绳索抓斗配有特殊的反重力锁定系统，可以始终安装在正确的位置。

用于两个梯级的肢体
板用于安装由SS钢丝绳制成的垂直锚绳的四肢钢板安装在带有Ubolts和nylock螺母的梯子上。固定在两个横档上可为系统提供更好的结构强度。

Vertical Anchorage Line System on Flexible Steel Cable Line
Ref : VERTEX PN 2001

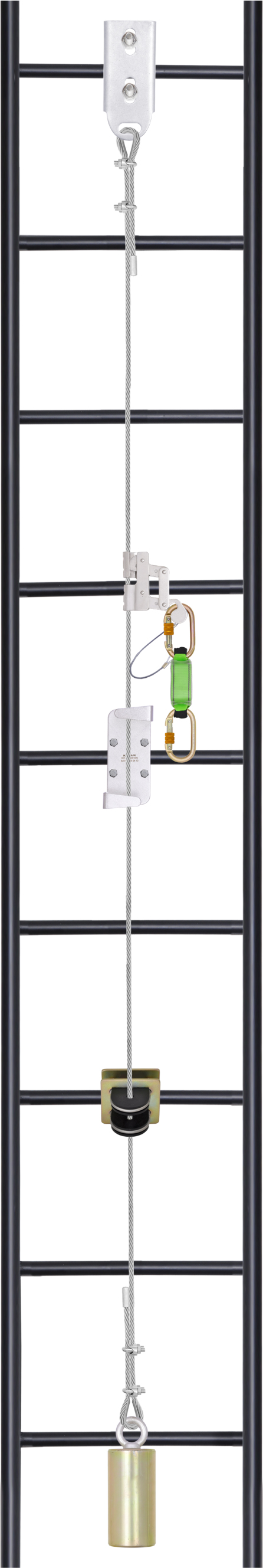

Conforming to the Norm EN 353-2:2002 this vertical Fall Arrest system is an integrated solution to arrest the fall of a user who has to constantly climb up & down a ladder. It consists of a vertical anchorage line made of stainless steel wire rope, installed on a ladder using an appropriate mounting bracket at the top.
A stainless steel Rope Grab moves up & down the anchorage line, accompanying the user who is connected to this rope grab with the help of a small shock absorbing lanyard.
To maintain the tension in the wire rope, a dead weight is connected to the lower end. Also, an end clamp provided at the end of the wire rope is fitted to the ladder rung to maintain the anchorage line in position. Intermediates are provided at regular intervals to prevent dislocation of the anchorage line from its mean position due to wind pressure or mechanical movement.
The system also has an Inspection Name Plate which is installed on the first rung of the ladder for identification, traceability and maintenance of inspection records. One stainless steel cable is used to fasten the System Name Plate to the structure. At time of installation, the relevant details are punched on the plate by a number punch. The revalidation dates are punched each year on the plates after inspection and revalidation.

Significant Features are:

  • It is simple and easy to install requiring minimum effort for installation.
  • The Rope Grab comes with special anti-gravity locking system which enables it to be fitted always in the correct position.

Extremity Plates for Two Ladder Rungs
Extremity plate used to install a vertical anchor line made of SS wire Rope installed on a ladder with Ubolts & nylock nuts. Fixing on two rungs provides better structural strength to the system.
