POWERCRIMP

全新的Novopress PowerCrimp提供完整的压接系统，具有100多种常用压接模具和定位器，适用于各种端子，接头和断路器。特别是在力密集和安全关键应用方面，PowerCrimp表现出压接工具的优势。凭借其电子压接力监控和自动顺序控制，每个压接都将以质量和安全性完全完成。PowerCrimp系统的尺寸范围为0.08 – 50mm?，适用于超过1,000种特殊压接应用，并提供压接力，可靠性和安全性，这是固定式压接机所预期的。密尔沃基先进的锂离子电池系统可实现轻量化，高性能和耐用性，每次充电可达500次压接。

好处

  • 压接范围为0.08 – 50mm?
  • 范围AWG 28 – AWG 0
  • 平行钳口关闭
  • 压接高达1.5？t
  • 压接力监控
  • 压接周期控制
  • 新的锂离子电池
  • 每次充电500次压接
  • 循环时间仅为2.5秒。

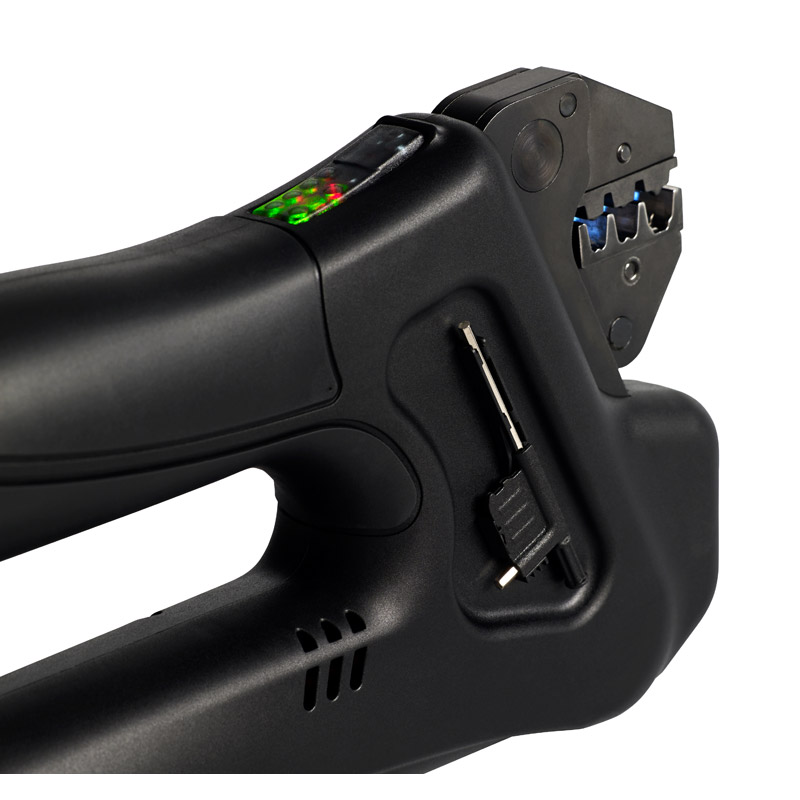

POWERCRIMP

The brand-new Novopress PowerCrimp, offers a complete Crimping-System, with more than 100 common crimping dies and locators for a vast variety of terminals, splices and disconnects. Especially on force intensive and safety-critical applications, the PowerCrimp shows it’s superiority over manual crimping tools. With it’s electronic crimp-force monitoring and automatic sequence control, every crimp will be fully completed in unsurpassed quality and safety. In a range from 0.08 – 50 mm? the PowerCrimp System is suitable for more than 1.000 special crimping applications and offers crimp force, reliability and safety, as only expected from stationary crimping machines so far. The state of the art Li-Ion battery system from Milwaukee, enables light weight, high performance and endurance for up to 500 crimps per charge. Thus the Novopress PowerCrimp is also the right choice for your job-lot production.

ADVANTAGES

  • Crimps from 0.08 – 50 mm?
  • Range AWG 28 – AWG 0
  • Parallel jaw closing
  • Crimpforce up to 1.5t
  • Crimpforce monitoring
  • Crimp-cycle control
  • Latest Li-Ion batteries
  • 500 Crimps per charge
  • Cycle time only 2,5 sec.
PowerCrimp
电压电池12 V Li-Ion 1,5 Ah / 3,0 Ah
功率240瓦
长度约?142毫米
宽度约?50毫米
高度约?274毫米
重量约?2公斤（墨水.Akku 1,5 Ah）
Crimpforce高达1.5吨
压接范围0,08 – 50mm?
保护等级IP 20
温度。范围-10°C bis + 50°C
声压级70分贝（A）
声功率级最大83分贝（A）
振动值<2,5 m /s?

PowerCrimp

Voltage Battery? ? ? ?12 V Li-Ion 1,5 Ah / 3,0 Ah

Power? ? ? ?240 W

Length? ? ? ?ca. 142 mm

Width? ? ? ?ca. 50 mm

Height? ? ? ?ca. 274 mm

Weight? ? ? ?ca. 2 Kg (inkl. Akku 1,5 Ah)

Crimpforce? ? ? ?up to 1,5t

Crimp Range? ? ? ?0,08 – 50 mm?

Protection class? ? ? ?IP 20

Temp. range? ? ? ?-10° C bis +50° C

Sound pressure level? ? ? ?70 db (A)

Sound power level max.? ? ? ?83 db (A)

Vibration value? ? ? ?< 2,5 m/s?
